| Type | Rated voltage KV | Maximum Continous operation voltage kV | Residual voltage | Square wave current impluse withstand A | High current impluse kA | ||
| Steep current impluse ＞kV | Switching current impluse ＞kV | Lighting current impluse ＞kV | |||||
| Nominal Discharge Current 5KA Metal-oxide Lightning Arrester Without Gaps(export) | |||||||
| YH5W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 65 |
| YH5W-6 | 6 | 5.1 | 19 | 15.4 | 18 | ||
| YH5W-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | ||
| YH5W-10 | 10 | 8.3 | 36 | 27 | 30 | ||
| YH5W-11 | 11 | 9.5 | 38.5 | 30 | 33 | ||
| YH5W-12 | 12 | 10.2 | 38 | 30.8 | 36 | ||
| YH5W-15 | 15 | 12.7 | 47.5 | 38..5 | 45 | ||
| YH5W-18 | 18 | 15.3 | 57 | 46.2 | 54 | ||
| YH5W-21 | 21 | 17 | 66.5 | 53.9 | 63 | ||
| YH5W-24 | 24 | 19.5 | 76 | 61.6 | 72 | ||
| YH5W-27 | 27 | 21..9 | 85.5 | 69.3 | 81 | ||
| YH5W-30 | 30 | 24.4 | 95 | 76.5 | 90 | ||
| YH5W-33 | 33 | 26.8 | 104 | 84.7 | 99 | ||
| YH5W-36 | 36 | 229 | 114 | 92.7 | 108 | ||
| YH5W-42 | 42 | 34.1 | 132.3 | 100.1 | 126 | ||
| Nominal Discharge Current 10KA Metal-oxide Lightning Arrester Without Gaps(export) | |||||||
| YH10W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 250 | 100 |
| YH10W-6 | 6 | 5.1 | 19 | 15.4 | 18 | ||
| YH10W-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | ||
| YH10W-10 | 10 | 8.3 | 36 | 27 | 30 | ||
| YH10W-11 | 11 | 9..5 | 38.5 | 30 | 33 | ||
| YH10W-12 | 12 | 10.2 | 38 | 30.8 | 36 | ||
| YH10W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | ||
| YH10W-18 | 18 | 15.3 | 57 | 46.2 | 54 | ||
| YH10W-21 | 21 | 17 | 66.5 | 53.9 | 63 | ||
| YH10W-24 | 24 | 19.5 | 76 | 61.6 | 72 | ||
| YH10W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | ||
| YH10W-30 | 30 | 24.4 | 95 | 76.5 | 90 | ||
| YH10W-33 | 33 | 26.8 | 104 | 84.7 | 99 | ||
| YH10W-36 | 36 | 29 | 114 | 92.7 | 108 | ||
| YH10W-42 | 42 | 34.1 | 133 | 100 | 126 | ||
| YH10W-48 | 48 | 39 | 152 | 126 | 150 | 400 | |
| YH10W-54 | 54 | 43 | 171 | 139 | 162 | ||
| YH10W-60 | 60 | 48 | 208 | 160 | 180 | ||
| YH10W-66 | 66 | 53.4 | 230 | 172 | 198 | ||

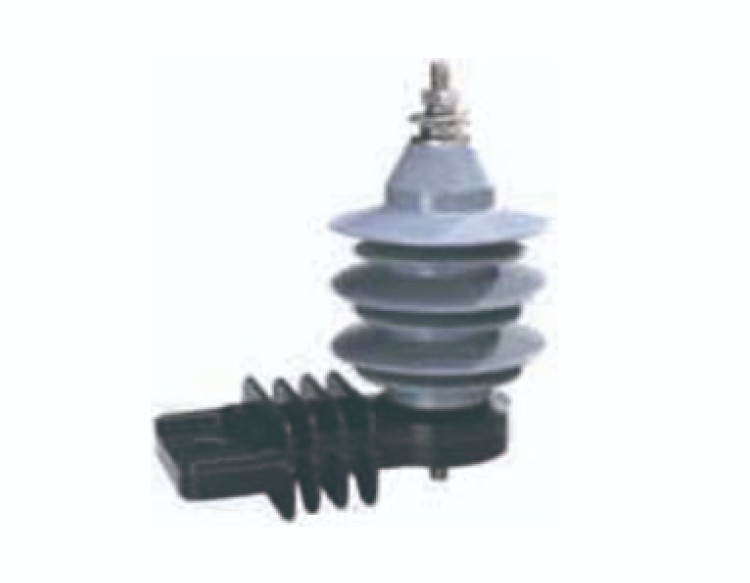

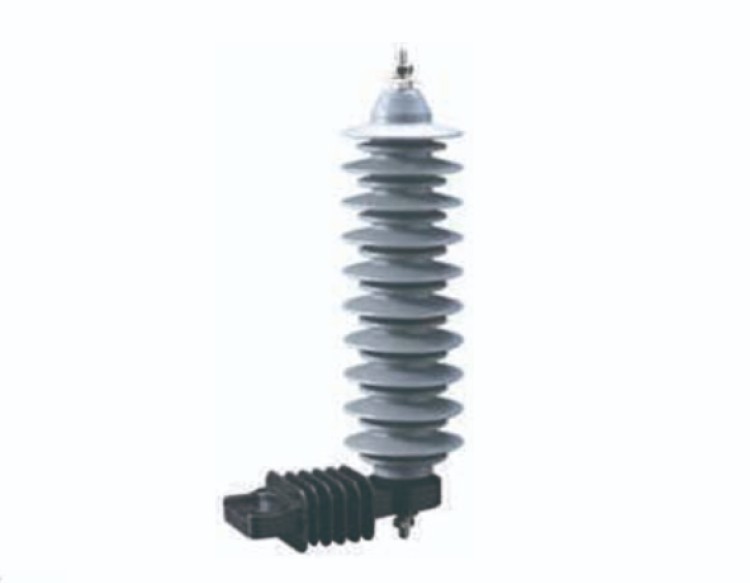

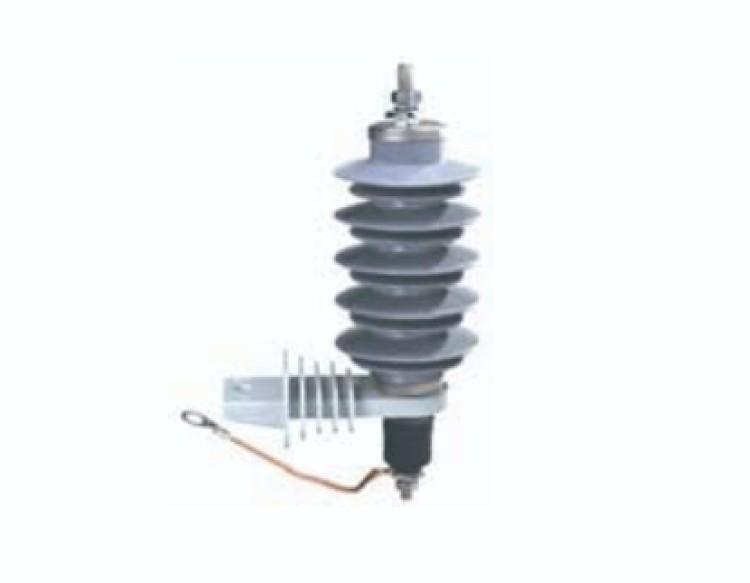

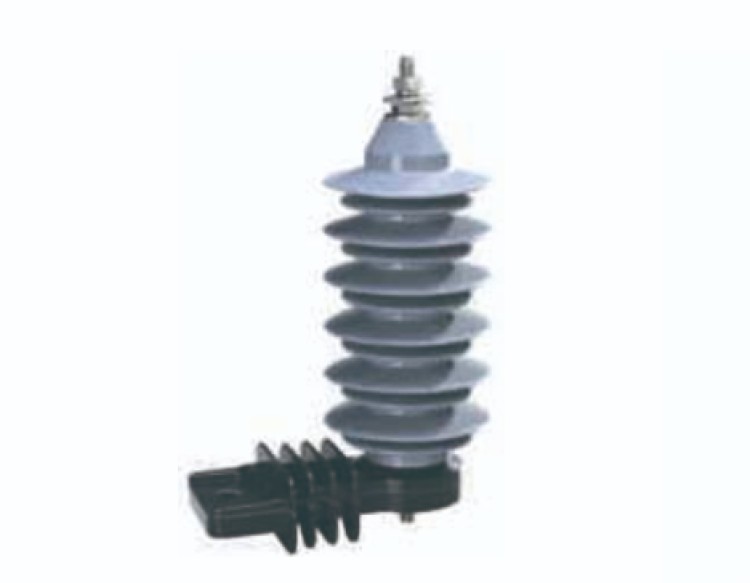

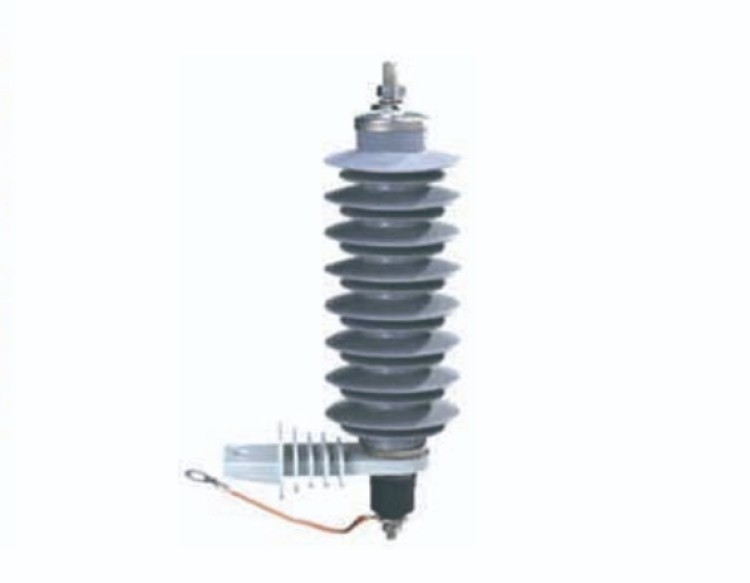

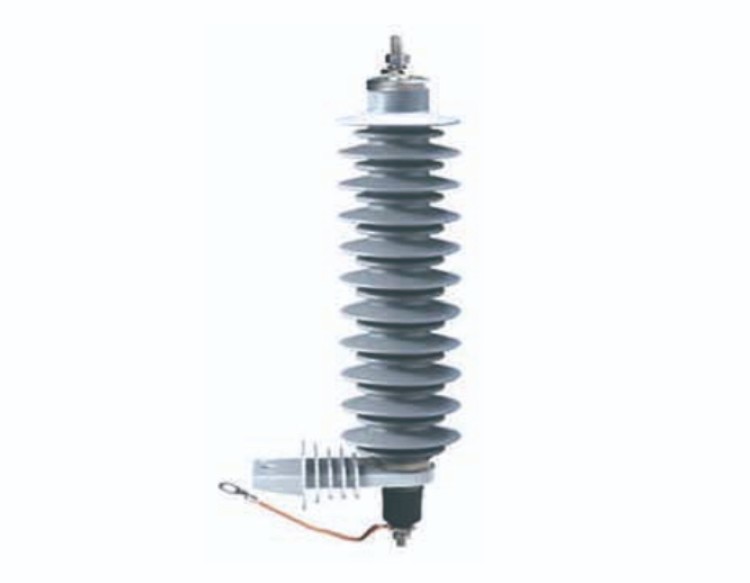

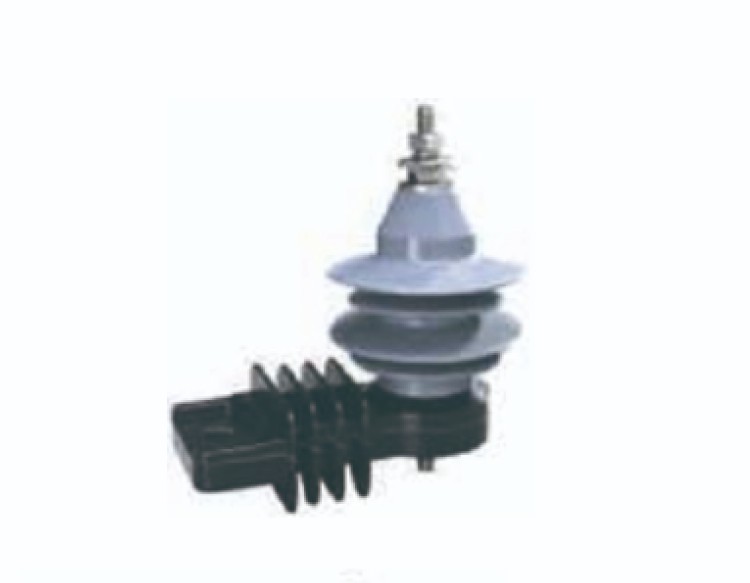

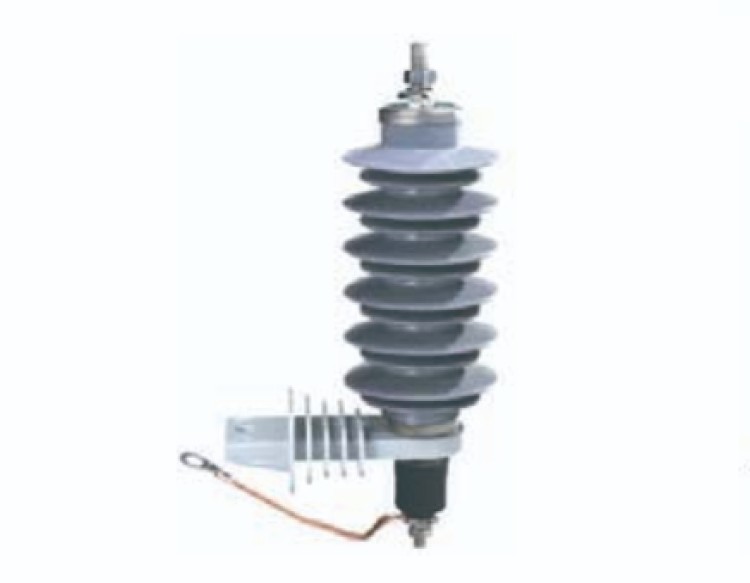

The arrester comprises multiple solid zinc oxide discs arranged in a cylindrical stack. The number of discs used depends on the voltage rating of the system. The stack is housed inside a cylindrical casing made of polymer or porcelain.
1.Types of Zinc Oxide Arrester:
1)YH5WS (Distribution Type): Used for distribution systems.
2)YH5WZ (Power Station Type): Suitable for power stations.
3)YH5WR (Capacitive Type): Designed for capacitive applications.
4)YH5CS (Series Gap): Incorporates a series gap.
5)YH1.5W (Neutral Point Type): Used at neutral points.
6)YH5WX (Line Type): Specifically for transmission lines.
2.Service Conditions: Ambient temperature -50°C to +45°C, max. 1,000 m altitude, frequency 15 - 62 Hz.
