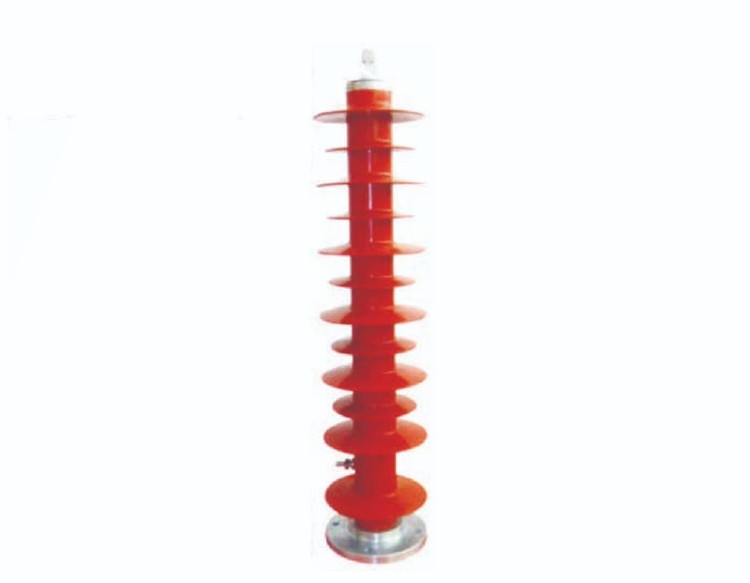

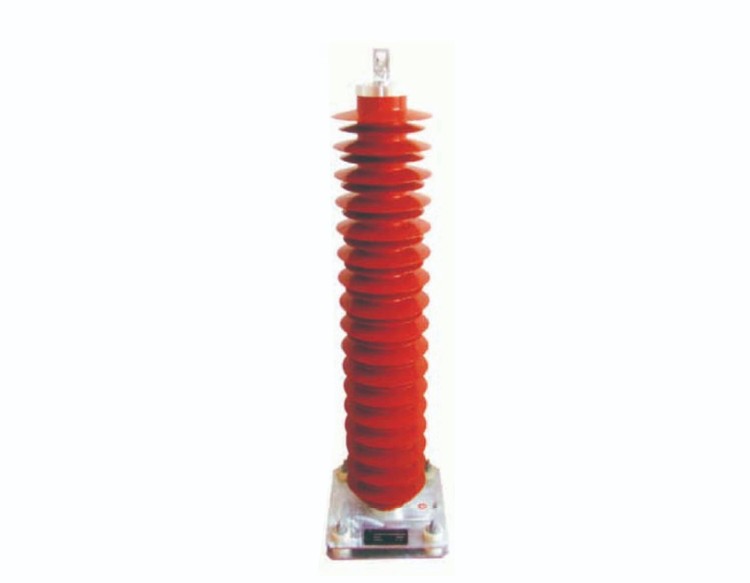

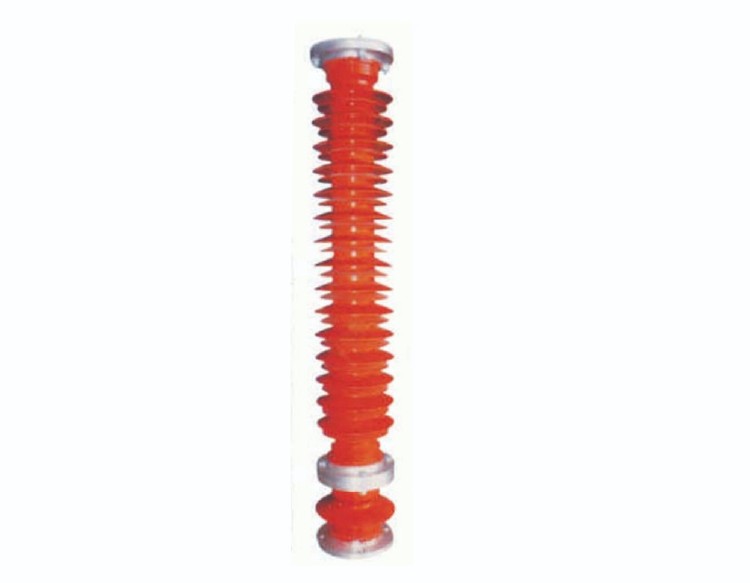

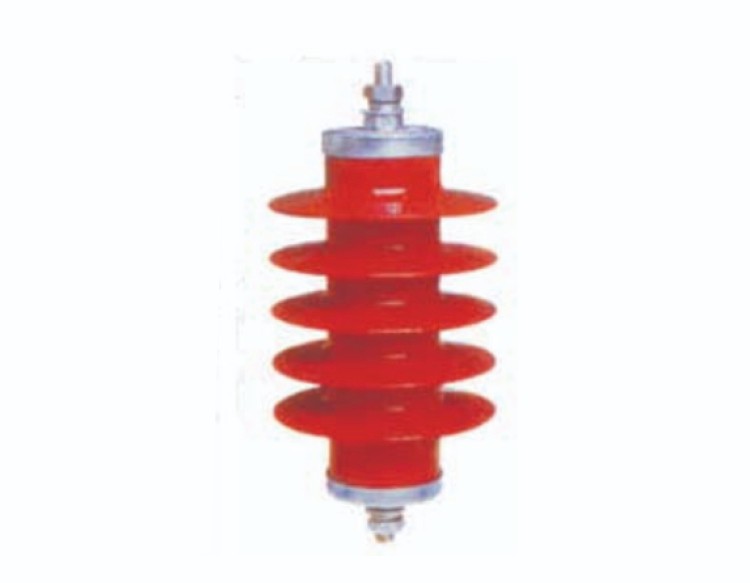

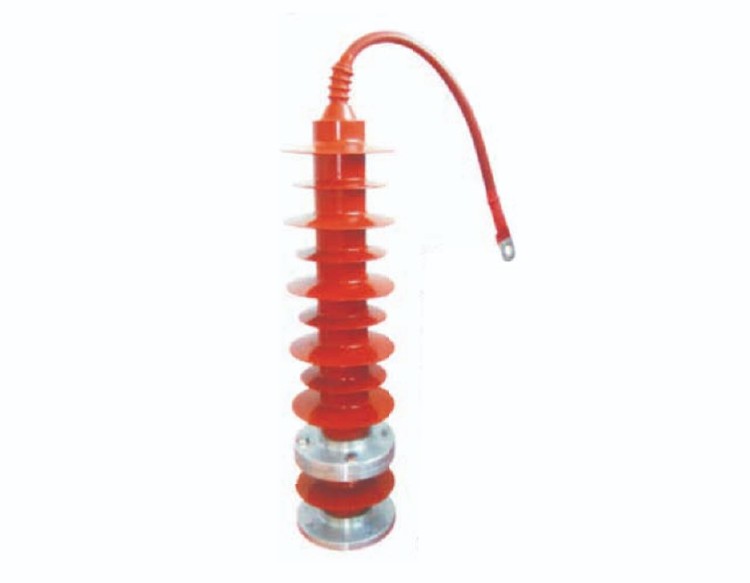

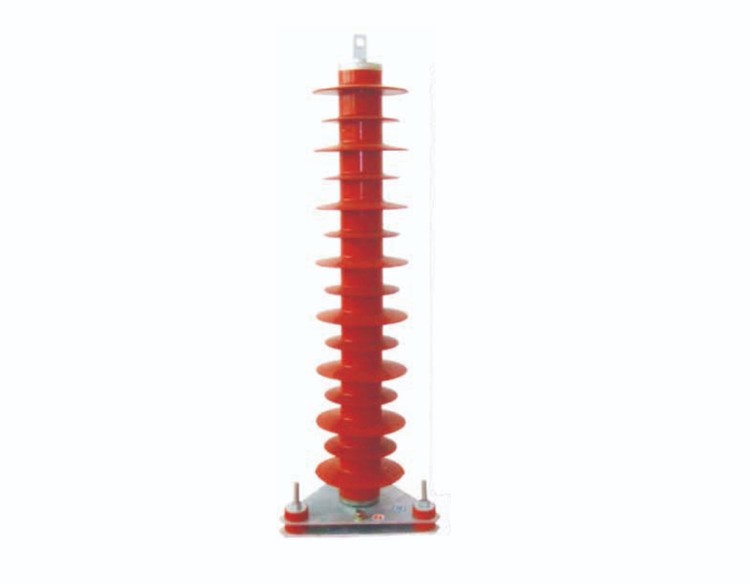

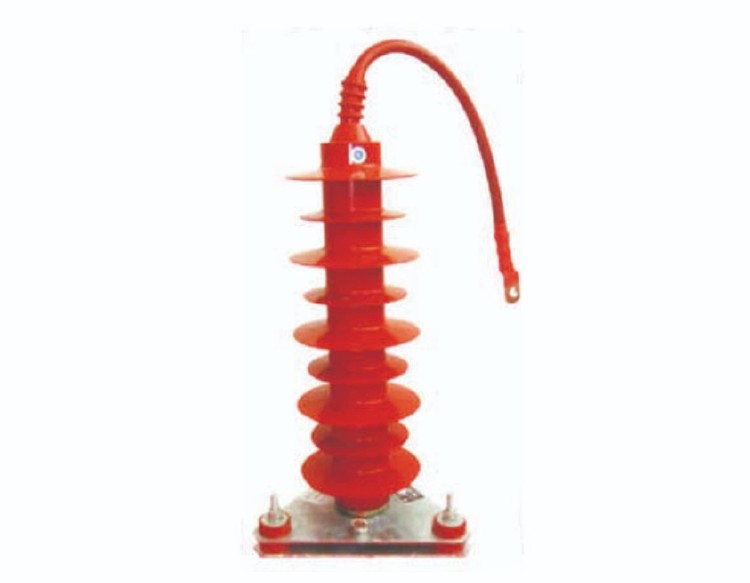

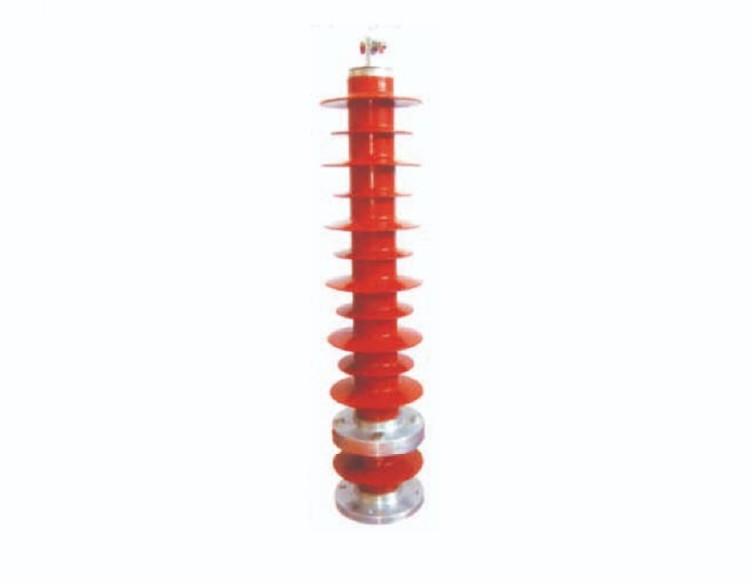

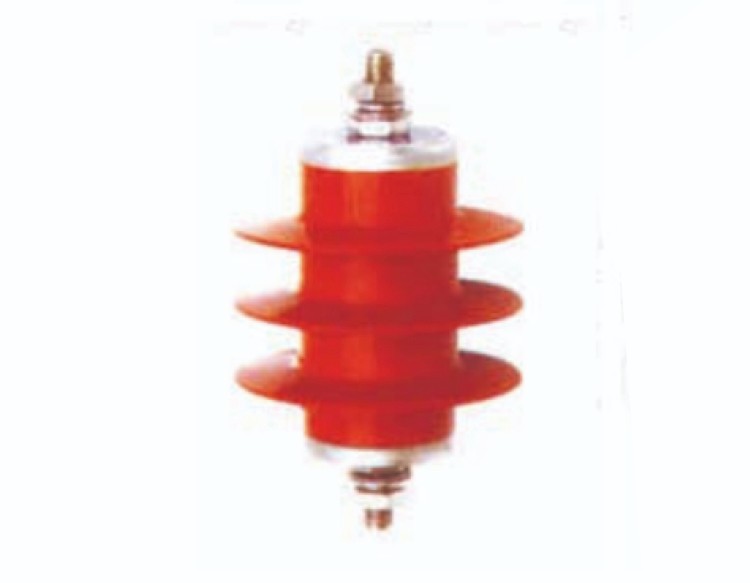

High Quality Zn Oxide Arrester Of Power Station Type-YH5WZ

Service condition	Type	MOA Rated voltage KV	System nominal voltage kV	Continous operation voltage kV	DC Min U1mA reference voltage kV≥	Residual voltage			Square wave current impluse withstand A	High current impluse kA
Service condition	Type	MOA Rated voltage KV	System nominal voltage kV	Continous operation voltage kV	DC Min U1mA reference voltage kV≥	Steep current impluse ＞kV	Lighting current impluse ＞kV	Switching current impluse ＞kV	Square wave current impluse withstand A	High current impluse kA
5kA Substation	YH5WZ-3.8/13.5	3.8	3	3.2	7.2	14.5	13.5	11.5	200	65
	YH5WZ-7.6/27	7.6	6	4	14.4	31	27	23
	YH5WZ-10/27	10	6	8	14.4	31	27	23
	YH5WZ-17/45	17	10	13.6	24	51.8	45	38.3
	YH5WZ-42/134	42	35	23.4	73	154	134	114	400	100
	YH5WZ-51/134	51		40.8	73	154	134	114
	YH5WZ-52.7/134	52.7		42.2	73	154	134	114
	YH5WZ-54/134	54		43.2	73	154	134	114
	YH5WZ-84/221	84	66	67.2	121	254	221	188	600	100
	YH5WZ-90/224	90		72.5	130	258	224	190
	YH5WZ-94/224	94		75.5	134	270	234	198
	YH5WZ-96/250	96	110	75	140	287	250	212	600	100
	YH5WZ-100/260	100		78	145	299	260	221
	YH5WZ-102/260	102		80	148	305	266	226
	YH5WZ-108/281	108		84	157	323	281	239
	YH5WZ-116/302	116		88.2	168	347	302	256
10kA Substation	YH10WZ-51/134	51	35	40.8	73	154	134	114	400	100
	YH10WZ-52.7/134	52.7	35	42.2	73	154	134	114	400	100
	YH10WZ-72/184	72	66	57	105	211	184	165	600	100
	YH10WZ-75/223	75		60	127	256	223	190
	YH10WZ-75/230	75		60	127	256	230	196
	YH10WZ-75/250	75		60	127	288	250	213
	YH10WZ-84/215	84		67.2	122	245	215	181
	YH10WZ-90/235	90		72.5	130	264	235	201
	YH10WZ-96/265	96	110	75	140	280	250	212	600	100
	YH10WZ-100/260	100		78	145	291	260	221
	YH10WZ-102/266	102		79.6	148	297	266	226
	YH10WZ-108/281	108		84	157	315	281	239
	YH10WZ-116/302	116		88	168	338	302	257
	YH10WZ-120/300	120		96	174	335	300	270
	YH10WZ-126/328	126		95.8	183	367	328	279
	YH10WZ-150/400	150		115	230	444	400	352
	YH10WZ-195/500	192	220	150	280	560	500	426	600, 800, 1000	100
	YH10WZ-200/520	200		156	290	582	520	442
	YH10WZ-204/532	204		159	296	594	532	452
	YH10WZ-216/562	216		168.5	314	630	562	478
20kA Substation	YH20WZ-200/566	220	220	152	304	634	566	464	1200	100
Neutral point of ransformer	YH1.5W-55/132	55	110	43	79	/	132	126	400	65
	YH1.5W-60/144	60		48	85	/	144	135
	YH1.5W-72/186	72		58	103	/	186	174
	YH1.5W-73/200	73		58	105	/	200	174
	YH1.5W-96/260	96	500	77	137	/	260	243	600	100
	YH1.5W-144/320	144	220	116	205	/	320	299
	YH1.5W-207/440	207	330	166	292	/	440	410
Capacitor ( R )	YH5WR-3.8/13.5	3.8	3	2	7.2	/	13.5	10.5	400	65
	YH5WR-5/13.5	5		3.8	7.2	/	13.5	10.5
	YH5WR-10/27	10	6	8	14.4	/	27	20.8
	YH5WR-17/45	17	10	13.6	24	/	45	38.3
	YH5WR-51/134	51	35	40.8	73	/	134	105
	YH5WR-84/221	84	66	67.2	121	/	221	176
	YH5WR-90/235	90		72.5	130	/	235	190
Motor ( D )	YH2.5WD-4/9.5	4	3.15	3.2	5.7	10.7	9.5	7.6	400	65
	YH2.5WD-8/18.7	8	6.3	6.3	11.2	21	18.7	15
	YH2.5WD-12.7/31	12.7	9.8	9.8	18.6	34.7	31	25
	YH2.5WD-13.5/31	13.5	10.5	10.5	18.6	34.7	31	25
Neutral point of motor ( D )	YH1.5WD-2.4/6	2.4	3.2	1.9	3.4	/	6	5	200 300 400	65 100
	YH1.5WD-4.8/12	4.8	6.3	3.8	6.8	/	12	10
	YH1.5WD-8/19	8	10.5	6.4	11.4	/	19	15
	YH1.5WD-12/26	12	15.75	9.6	17	/	26	21.6
	YH1.5WD-13.7/29.2	13.7	18	11	19.5	/	29.2	24.3
Generator ( D )	YH5WD-4/9.5	4	3.15	3.2	5.7	10.7	9.5	7.6	400	65
	YH5WD-8/18.7	8	6.3	6.3	11.2	21	18.7	15
	YH5WD-13.5/31	13.5	10.5	10.5	18.6	34.7	31	25
	YH5WD-17.4/40	17.5	13.8	13.8	24.4	44.8	40	32
	YH5WD-20/45	20	15.8	15.8	28	50.4	45	35
	YH5WD-23/51	23	18	18	31.9	57.2	51	40.8
	YH5WD-25/56.2	25	20	20	35.4	62.9	56.2	45
Railway Traction	YH5WT-17/45	17	10	13.6	24	51.8	45	38.3	200	65
	YH5WT-42/105	42	27.5	34	60	118	105	89	400	65
	YH5WT-42/120	42		34	65	138	120	98
	YH5WT-42/120	42		34	65	138	120	98
	YH5WT-84/240	84	55	68	130	276	240	196
	YH5WT-100/260	100	110	73	145	291	260	221	600	100
	YH5WT-200/520	200	220	146	290	582	520	442	600	100

1.Working Principle: YH5WZ type power station type zinc oxide arrester is used to protect equipment in power systems from overvoltage. When overvoltage occurs in the system, the zinc oxide arrester will conduct, directing the overvoltage to the ground wire, thereby protecting the equipment.

2.Advantages:Eliminate spark discharge: The zinc oxide arrester eliminates spark discharge and reduces the risk of the system.

3.Current sharing: Multiple columns of zinc oxide blocks can be used in parallel to meet high energy requirements. With good current sharing, the energy absorption capacity of these blocks can be effectively utilized.

4.Gapless design: The zinc oxide arrester adopts a gapless design and does not require a voltage grading system.

In short, the YH5WZ type power station type zinc oxide arrester is a reliable and efficient device for protecting equipment in power systems from overvoltage.
