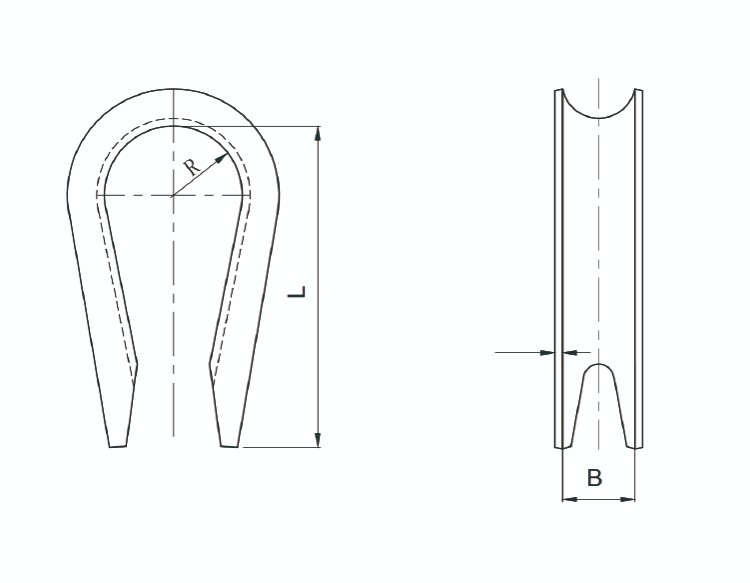

| Catalog No. | Steel wire dia | Main dimensions(mm) | Thickness(mm) | Approximate Shipping Weight kg./100Pcs. | Standard Pkg. Qty./Carton | ||
| R | B | L | |||||
| JK-0 | 5.4~6.4 | 18 | 8 | 44 | 0.08 | 0.08 | 0.08 |
| JK-1 | 6.6~7.8 | 22 | 10 | 54 | 0.18 | 0.18 | 0.18 |
| JK-2 | 9.0~11.0 | 27 | 12 | 60 | 0.25 | 0.25 | 0.25 |
| JK-3 | 13.0~14.0 | 30 | 14 | 75 | 0.35 | 0.35 | 0.35 |
It comes in two distinct designs – the bow stay rod and the tubular stay rod.
1.Bow Stay Rod
1)The bow stay rod includes parts like the stay thimble, rod, and plate.
2)It is designed with an integral stay bow, stay rod, stay plate, and stay thimble.
3)Crafted from galvanized steel, it exhibits immense physical strength and high tensile capacity, effectively resisting mechanical forces.
2.Tubular Stay Rod
1)The tubular stay rod is adjustable through its turnbuckle.
2)It has an eye-topped turnbuckle that allows for easy adjustments.
3)This stay rod serves as a crucial link, securing stay wires to ground anchors, and thus ensures the stability of power line systems against various environmental and mechanical forces.
Both types of stay rods are made of high-grade galvanized steel, renowned for its strength and corrosion resistance.
