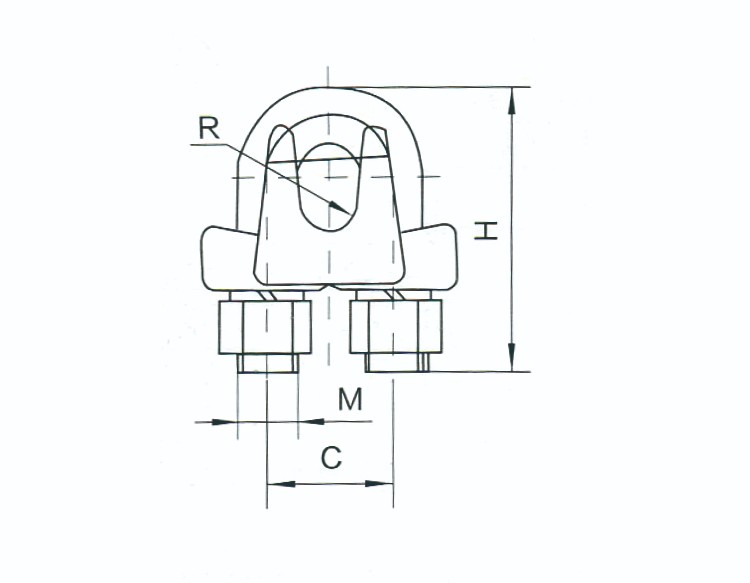

| Catalog No. | Steel wire dia | Main dimensions(mm) | Weight (kg) | |||
| C | M | H | R | |||
| JK-0 | 5.4~6.4 | 18 | 8 | 44 | 4.5 | 0.08 |
| JK-1 | 6.6~7.8 | 22 | 10 | 54 | 5 | 0.18 |
| JK-2 | 9.0~11.0 | 27 | 12 | 60 | 6 | 0.25 |
| JK-3 | 13.0~14.0 | 30 | 14 | 75 | 7.5 | 0.35 |
Here are some details about them:
1.Material: Guy clips are typically made from galvanized steel or stainless steel for corrosion resistance.
2.Design: They usually consist of a U-bolt, a saddle, and two nuts. The U-bolt goes over the wire, the saddle goes over the U-bolt, and the nuts secure the assembly.
3.Installation: When installing a guy clip, the U-bolt should be placed over the dead (short or cut) end of the wire, and the live (long or uncut) end should rest in the saddle.
4.Sizes: Guy clips come in various sizes to accommodate different wire diameters.
