Modle | Width | Thickness | weight | |||
Im. | mm | Im. | mm | Ibs | kg | |
SMB1450 | (1/4) | 6.35 | 0.02 | 0.5 | 1.76 | 0.8 |
SMB3850 | (3/8) | 9.53 | 0.02 | 0.5 | 2.64 | 1.2 |
SMB1276 | (1/2) | 12.7 | 0.03 | 0.76 | 5.5 | 2.5 |
SMB5876 | (5/8) | 15.88 | 0.03 | 0.76 | 7.04 | 3.2 |
SMB3476 | (3/4) | 19.05 | 0.03 | 0.76 | 8.27 | 3.76 |
Modle | Width | Thickness | weight | |||
Im. | mm | Im. | mm | Ibs | kg | |
SMBD3850 | (3/8) | 9.53 | 0.02 | 0.5 | 3.08 | 1.4 |
SMBD1276 | (1/2) | 12.7 | 0.03 | 0.76 | 5.94 | 2.7 |
SMBD5876 | (5/8) | 15.88 | 0.03 | 0.76 | 7.48 | 3.4 |
SMBD3476 | (3/4) | 19.05 | 0.03 | 0.76 | 8.71 | 3.96 |

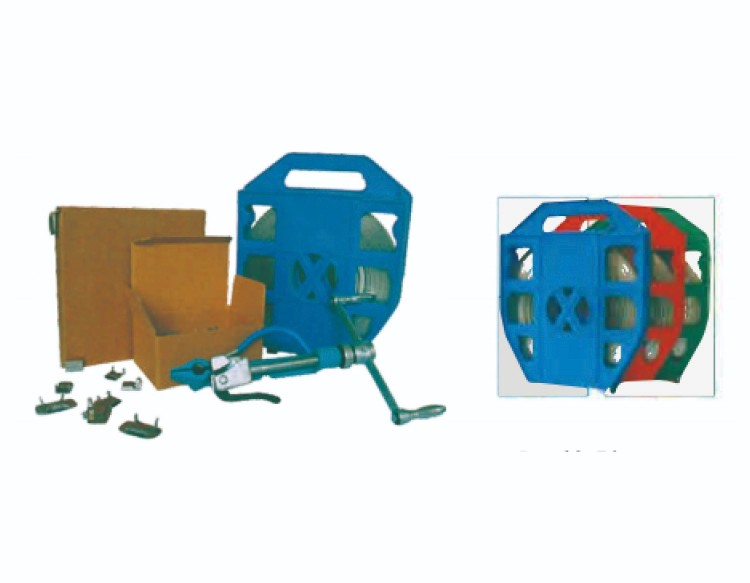

Here are some details about it:
1.Material: It’s made from Type 304 stainless steel, which is known for its excellent corrosion resistance and value.
2.Corrosion Resistance: Type 304 stainless steel can withstand corrosion from most oxidizing acids.
3.Applications: This type of banding is routinely used for strapping installation jacketing to pipes/tanks and attaching lightweight signs/advertising materials to columns or posts. It’s often selected for light duty applications in food processing, chemical, power transmission, and cable management.
4.Specifications: The band comes in various widths and thicknesses. For example, a band with a width of 3/8 inch and a thickness of 0.02 inch has an average breaking strength of 600 lbs and comes in a roll of 200 feet.
