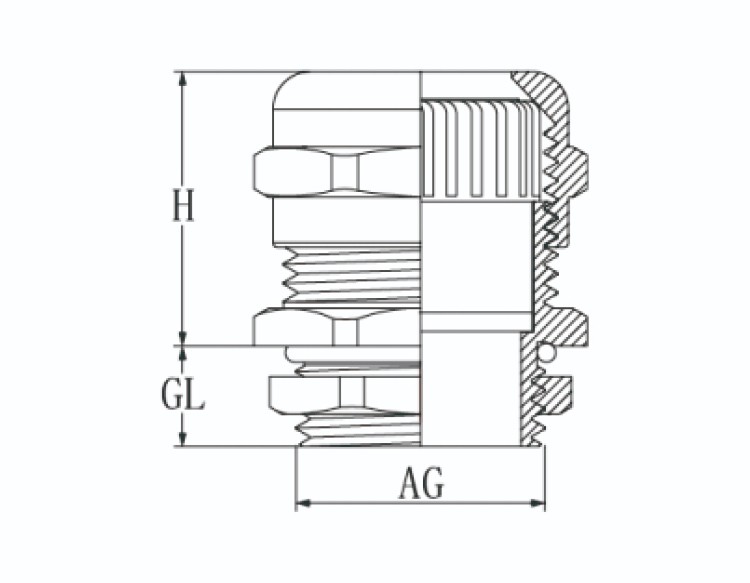

| Item | Range | Thread Length | Thread O.D. | Joint Length | Spanner size | Code |
| M8×1 | 2-5 | 5 | 8 | 13.5 | 12 | HX-NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10 | 17 | 14 | HX-NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 17 | 14 | HX-NPM12 |
| M14×1.5 | 4-8 | 8 | 14 | 18 | 17 | HX-NPM14 |
| M16×1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-NPM16 |
| M18×1.5 | 5-10 | 8 | 18 | 20 | 20 | HX-NPM18 |
| M20×1.5 | 6-12 | 8 | 20 | 21 | 22 | HX-NPM20 |
| M22×1.5 | 10-14 | 8 | 22 | 22 | 24 | HX-NPM22 |
| M24×1.5 | 10-14 | 9 | 24 | 22 | 24/27 | HX-NPM24 |
| M25×1.5 | 10-14 | 9 | 25 | 22 | 24/27 | HX-NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25 | 25 | 27 | HX-NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25 | 27 | 30/27 | HX-NPM25-18 |
| M27×1.5 | 13-18 | 9 | 27 | 27 | 30 | HX-NPM27 |
| M30×2 | 13-18 | 9 | 30 | 27 | 30/32 | HX-NPM30 |
| M32×1.5 | 15-22 | 10 | 32 | 29 | 35 | HX-NPM32 |
| M33×2 | 15-22 | 10 | 33 | 29 | 35/36 | HX-NPM33 |
| M36×1.5 | 18-25 | 10 | 36 | 31 | 40 | HX-NPM36 |
| M37×1.5 | 18-25 | 10 | 37 | 31 | 40 | HX-NPM37 |
| M40×1.5 | 18-25 | 11 | 40 | 31 | 40/45 | HX-NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40 | 35 | 45 | HX-NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47 | 37 | 50 | HX-NPM47 |
| M50×1.5 | 32-38 | 13 | 50 | 37 | 57/55 | HX-NPM50 |
| M60×1.5 | 37-44 | 14 | 60 | 38 | 64 | HX-NPM60 |
| M63×1.5 | 37-44 | 14 | 63 | 38 | 64/68 | HX-NPM63 |
Here are some key points about it:
1.Metal cable glands are typically made of stainless steel or nickel-plated brass.
2.They are robust and extremely suitable for industrial use.
3.These glands are designed to provide strain relief and are used to seal cables entering an enclosure, protecting the connection from dust, dirt, and liquids.
4.Some metal cable glands are designed for use with shielded cables, providing necessary Electromagnetic Compatibility (EMC) protection.
5.They deflect electromagnetic waves over the housing surface according to the Faraday cage principle and thus protect the exposed cables inside the housing.
