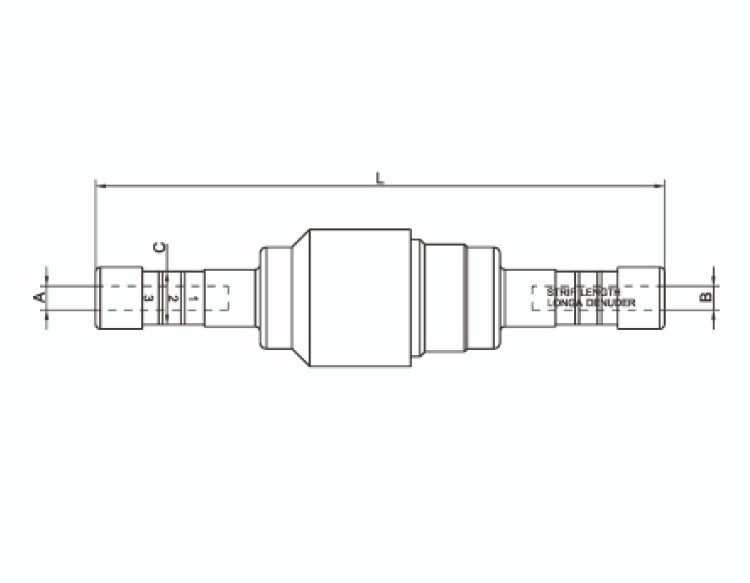

| Modle | Cable Size (mm2) | Plastic Sleeve Diameter(mm) | Length (mm) | |
| A | B | C | L | |
| MJPF 16/16 | 16 | 16 | 16.2 | 174 |
| MJPF 16/25 | 16 | 25 | 16.2 | 174 |
| MJPF 25/25 | 25 | 25 | 16.2 | 174 |

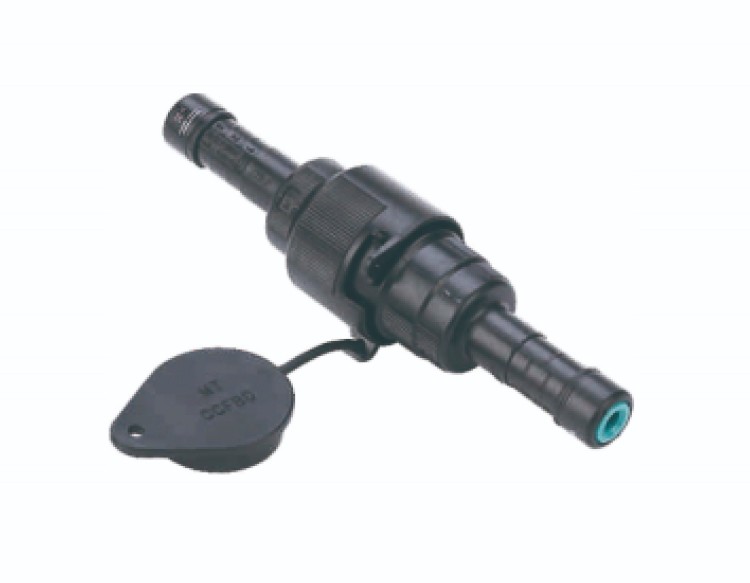

Here are the key features:
1.Material: Brass (silver plating) and aluminum.
2.Application: Used for full tension jointing of ABC (Aerial Bundled Conductor) cables.
3.Waterproof: Equipped with a cap to prevent water from entering the barrel.
4.Color-Coded: Different colors distinguish cable sizes.
5.Markings: Clearly marked with type, cable size, die size, inner cable length, and number of crimping.
