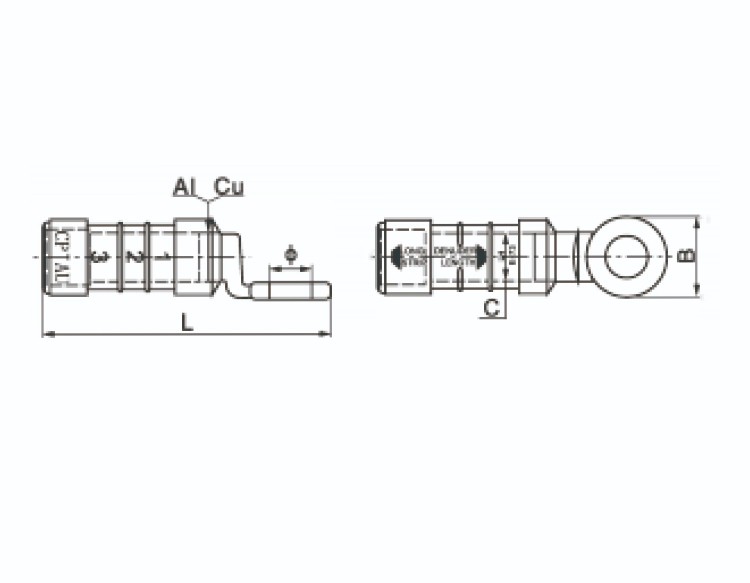

| Modle | Dimensions(mm) | Length(mm) | ||
| C | B | Φ | L | |
| CPTAU 16-10 | 16 | 20 | 10.5 | 73 |
| CPTAU 25-12 | 20 | 24 | 13 | 98.5 |
| CPTAU 35-12 | 20 | 24 | 13 | 98.5 |
| CPTAU50-12 | 20 | 24 | 13 | 98.5 |
| CPTAU54.6-12 | 20 | 24 | 13 | 98.5 |
| CPTAU70-12 | 20 | 24 | 13 | 98.5 |
| CPTAU95-12 | 20 | 24 | 13 | 98.5 |
| CPTAU120-12 | 23 | 30 | 13 | 125 |
| CPTAU150-12 | 23 | 30 | 13 | 125 |
| CPTAU180-12 | 32 | 35 | 13 | 145 |
| CPTAU240-12 | 32 | 35 | 13 | 145 |

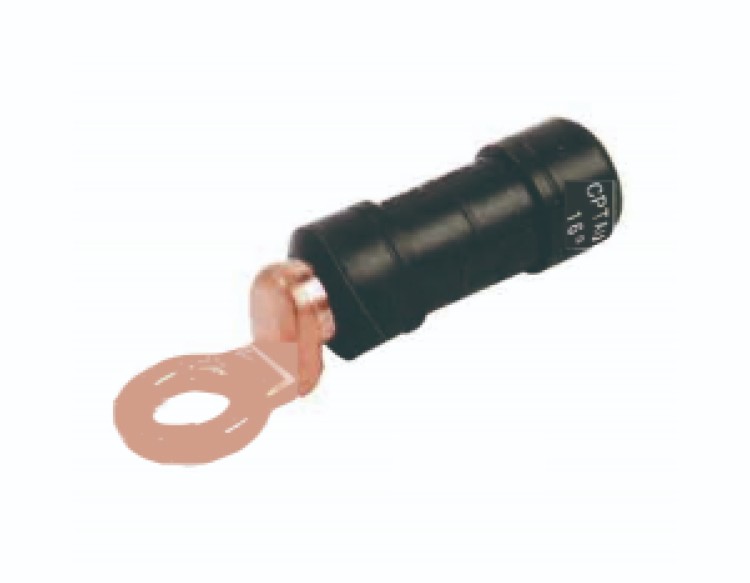

Here are the key details:
1.Material:
1)Palm: Made of copper (Cu ≥ 99.9%)
2)Barrel: Made of aluminum (Al ≥ 99.5%)
2.Insulation Sheath:
1)Weather and UV resistant
2)Clear markings indicate crimping details, including die size, sequence, conductor cross-section, and stripping length.
3.Waterproof: Equipped with an elastomeric cap for watertightness.
4.Application: Connects bundle conductors to copper pads or transformer studs.
