| Modle | Cable Size (mm2) | Plastic Sleeve Diameter(mm) | Length (mm) | |
| A | B | C | L | |
| MJPTN 54.6/54.6 | 54.6 | 54.6 | 20 | 172.5 |
| MJPTN 54.6/70 | 54.6 | 70 | 20 | 172.5 |
| MJPTN 70/70 | 70 | 70 | 20 | 172.5 |
| MJPTN 95/95D | 95 | 95 | 25 | 172.5 |

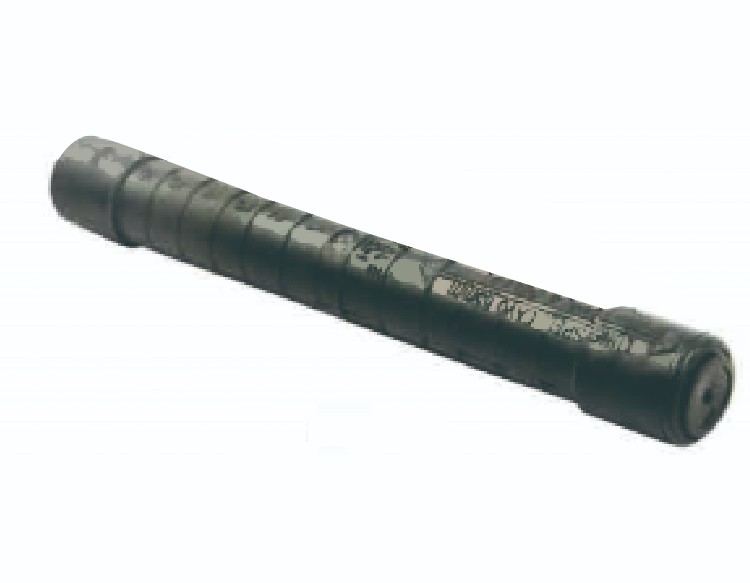

Here are the key features:
1.Application: It's used for full tension jointing of ABC (Aerial Bundled Conductor) cables.
2.Composition: The sleeve consists of a 1050A aluminum tube coated internally with contact grease and a stop to ensure correct conductor positioning.
3.Waterproof: The cap prevents water from entering the barrel.
4.Color-Coded: Different colors indicate cable sizes.
5.Material:
1)Conductive Material: Aluminum (99.6% pure)
2)Insulating Material: Thermoplastic polymer
