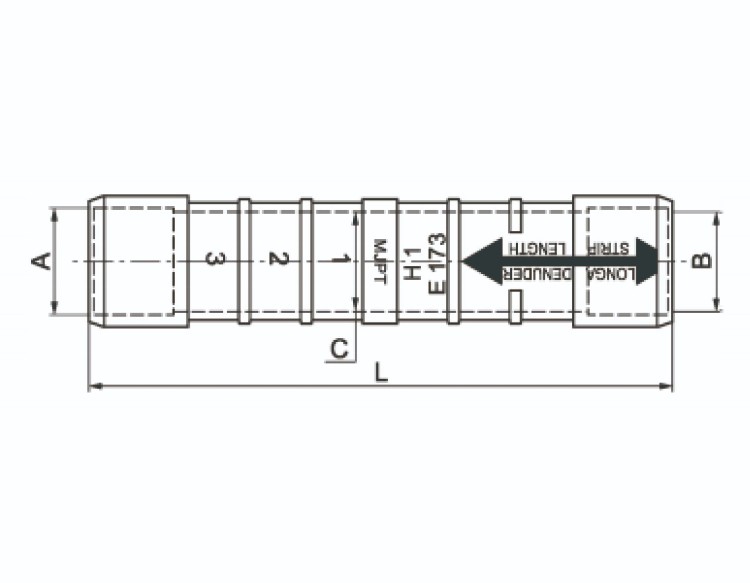

| Modle | Cable Size (mm2) | Plastic Sleeve Diameter(mm) | Length (mm) | |
| A | B | C | L | |
| MJPT 16/16 | 16 | 16 | 20 | 70 |
| MJPT 25/25 | 25 | 25 | 20 | 70 |
| MJPT 35/35 | 35 | 35 | 20 | 98.5 |
| MJPT 50/50 | 50 | 50 | 20 | 98.5 |
| MJPT 70/70 | 70 | 70 | 20 | 98.5 |
| MJPT 95/95 | 95 | 95 | 25 | 135 |
| MJPT 120/120 | 120 | 120 | 25 | 150 |

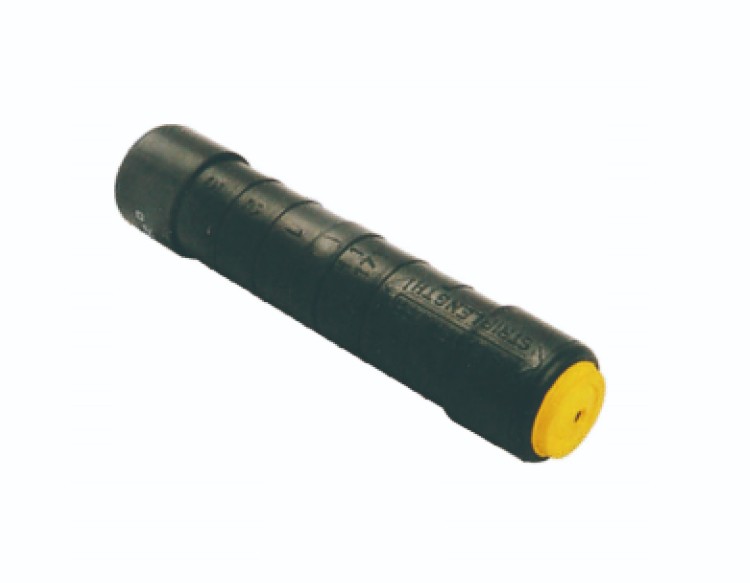

Here are the key features:
1.Application: It's used for connecting aluminum and copper cables to power distribution networks and ABC cables up to 1kV.
2.Composition: The sleeve consists of an aluminum (phase) or aluminum alloy, along with a neutral sleeve that has a stop in the middle.
3.Sealing: The black thermoplastic is sealed with a flexible elastomer ring.
4.Grease: Inside the tube, there's neutral contact grease to improve the contact area and protect the aluminum against oxidation.
5.Weather-Resistant: Made of high-quality aluminum alloy and UV-resistant plastic, it withstands various weather conditions.
6.Easy Installation: Crimping is done on the plastic part following marks on the sleeve body.
7.Usage: Connects insulated aluminum conductors for residential and commercial buildings, as well as ABF power distribution cables up to 1kV.
