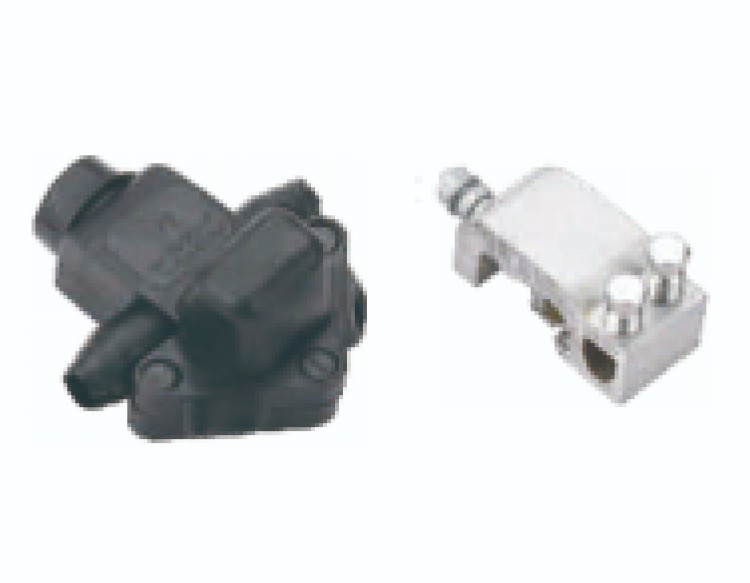

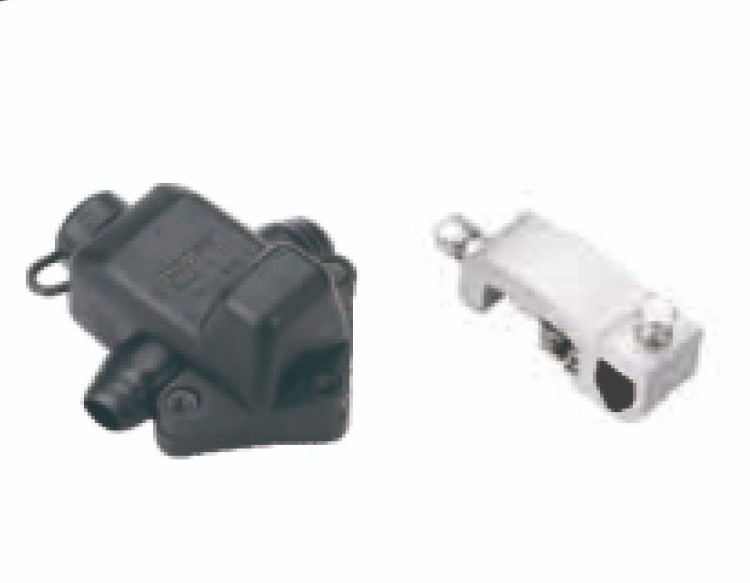

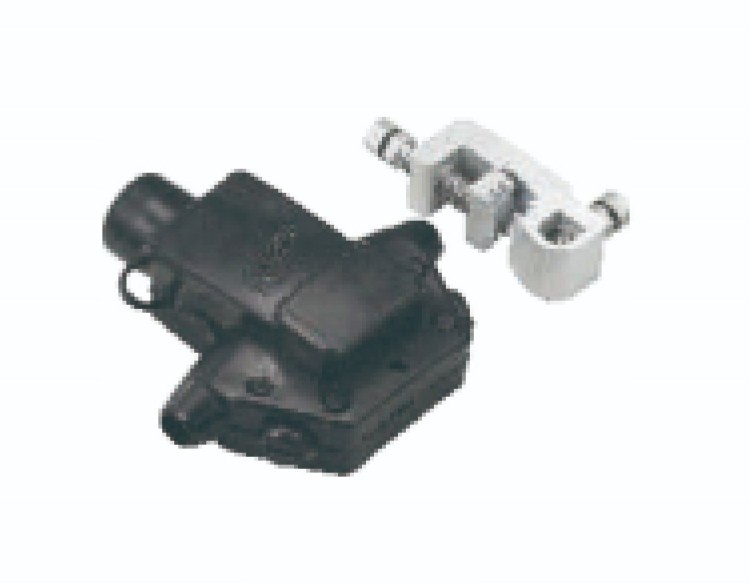

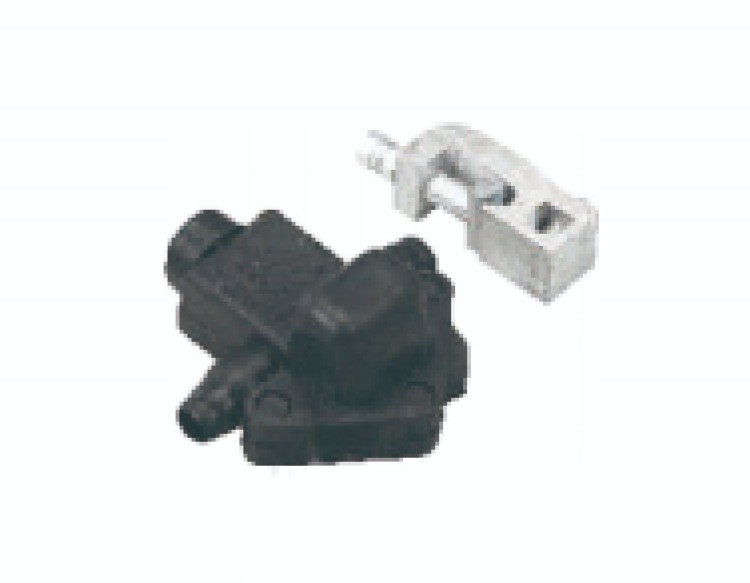

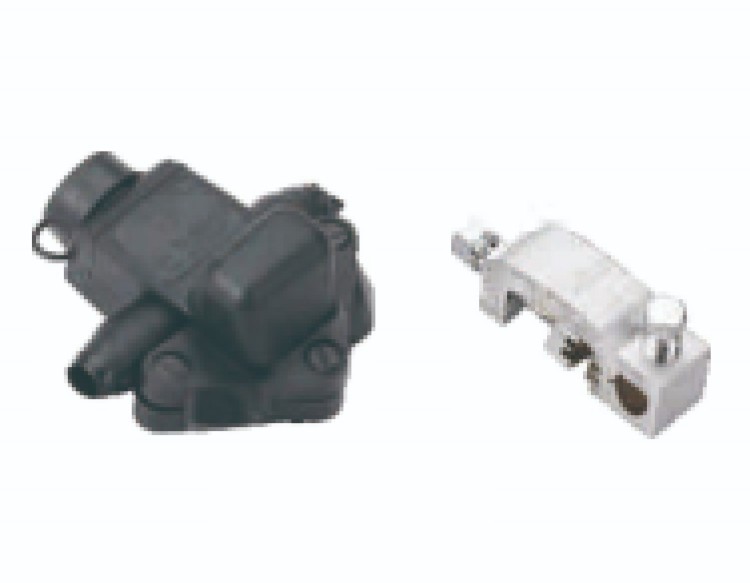

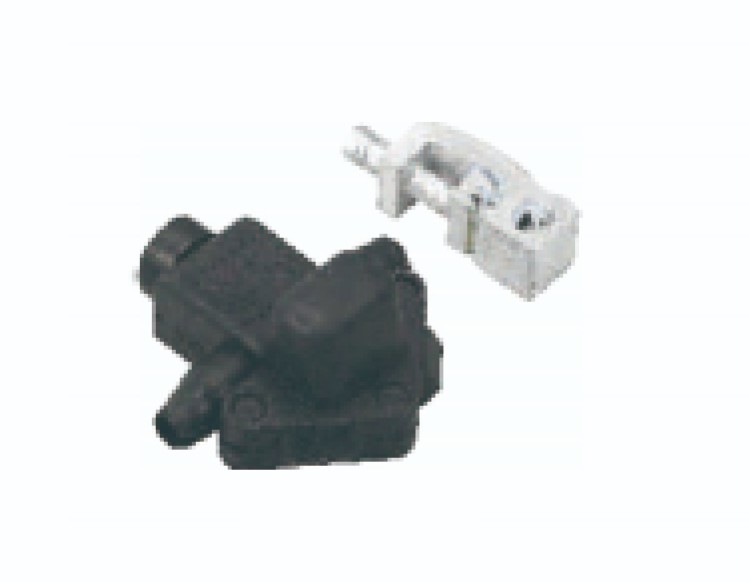

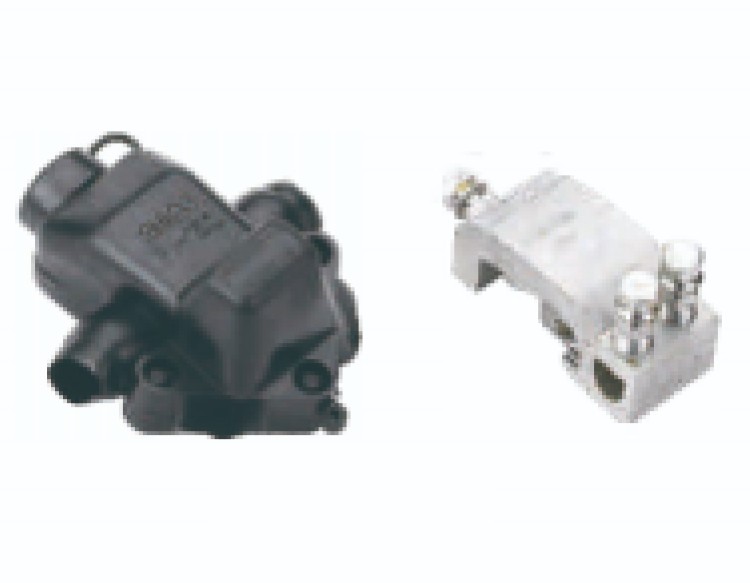

| Modle | Main Conductor Cross-section(mm2) | Tap Conductor Cross-section(mm2) |
| PI-71 | (35-95) | (4-54) |
| CD-71 | (35-95) | (4-54) |
| PC-150 | (35-150) | (4-50) |
| P-71 | (35-95) | (4-50) |
| P-72 | (35-95) | 2x(4-50) |
| P-150 | (70-150) | 2x(4-54) |
| P-151 | (16-150) | (6-95) |
Here are the key features:
1.Connection Process: The IPC pierces or displaces the insulation of a wire or cable, creating a conductive path with the conductor inside.
2.Materials: Typically made of aluminum and/or copper stranded conductors.
3.Blades: Tin-plated copper blades embedded in the connector body ensure weatherproof electrical contact.
4.Sealing Compound: Surrounds the blades to maintain insulation and weather resistance.

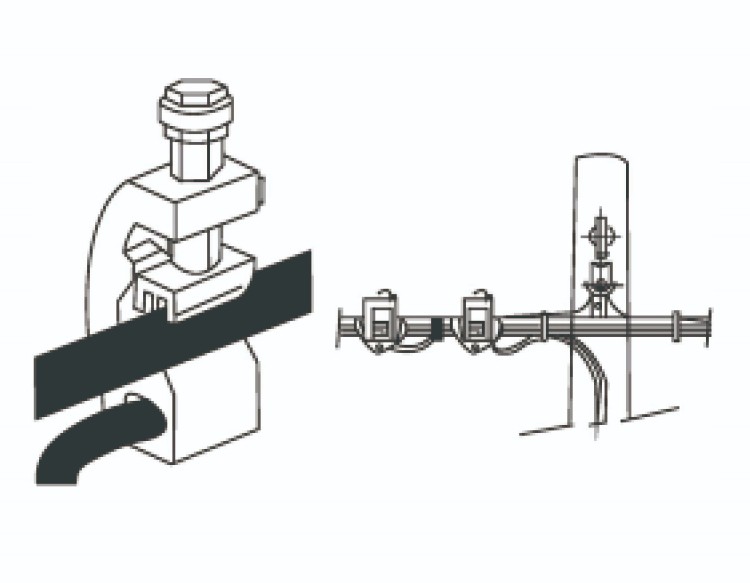

5.Installation: A single torque control nut draws the connector halves together, shearing off when the teeth pierce the insulation and make contact with the conductor strands.
