Piercing Grounding Protection(20kV)

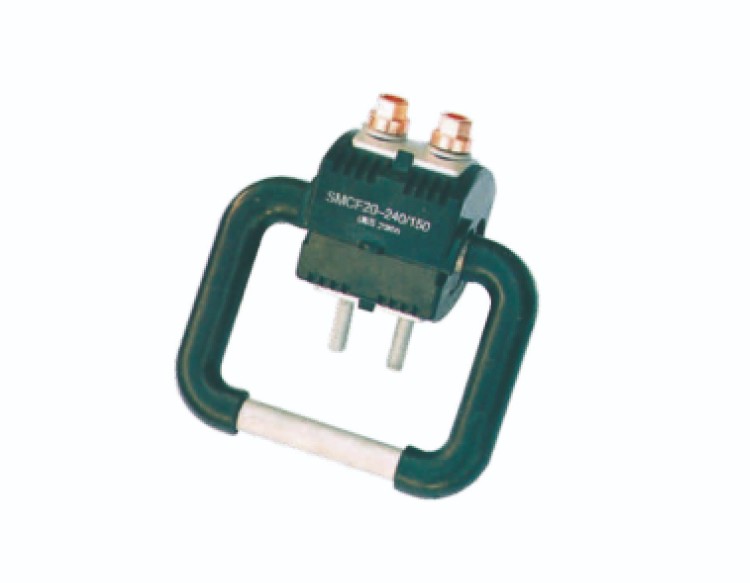

    The SMCF20 insulation piercing grounding connector is designed for grounding protection during electric power construction for 20kV or below insulated overhead lines.

  • Product Details
ModleApplicable
voltage(kV)
Applicable
cable(mm2)

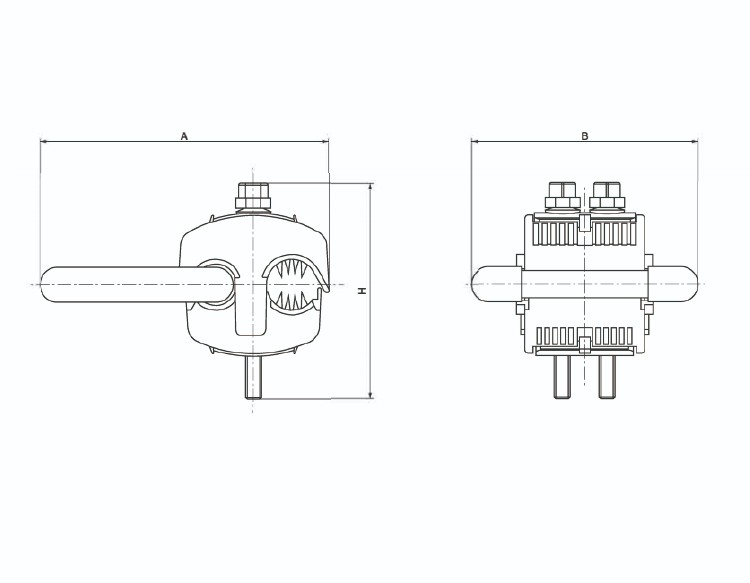

Dimensions(mm)Nominal
Current(A)
Bolt No.
(Piece)
ABH
SMCF20-120/352035~1201661401232992
SMCF20-240/15020150~2401701401404762


Here are the key features:


1.Application: Suitable for grounding protection during electric power construction for 20kV or below insulated overhead lines.

2.Temperature Rise Performance: Under high current conditions, the temperature rise of the connector is less than that of the connection lead.

3.Resistance to Corrosion Performance: Endures three cycles of fourteen days of testing under conditions of SO2 and salt fog.

4.Environmental Aging Performance: Withstands ultraviolet radiation, dryness, moisture, and temperature changes for six weeks.

5.Advantages:

  1)The SMCF20 connector ensures safe, reliable grounding protection without the need for maintenance.

  2)Its simple installation and economical cost make it a practical choice for electrical applications.
