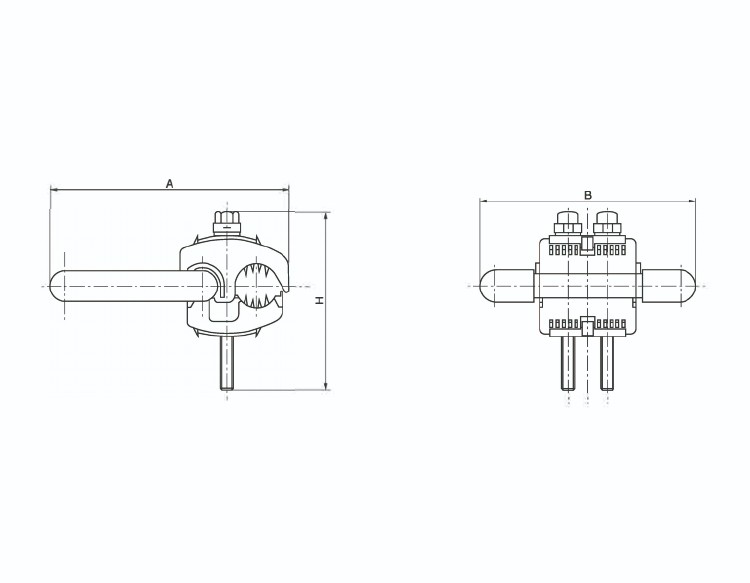

| Modle | Applicable voltage(kV) | Applicable cable(mm2) | Dimensions(mm) | Nominal Current(A) | Bolt No. (Piece) | ||
| A | B | H | |||||
| SMCF10-300/150 | 10 | 150~300 | 167.5 | 140 | 118 | 600 | 2 |
| SMCF10-240/150 | 10 | 150~240 | 160 | 140 | 113 | 476 | 2 |
| SMCF10-185/95 | 10 | 95~185 | 158 | 140 | 113 | 399 | 2 |
| SMCF10-95/25 | 10 | 25~95 | 148.5 | 140 | 98 | 257 | 2 |
Here are the key features:
1.Application: Applicable to grounding protection during electric power construction for 10kV or below insulated overhead lines.
2.Temperature Rise Performance: Under the condition of high current, the temperature rise of the connector is less than that of the connection lead.
3.Resistance to Corrosion Performance: Endures three cycles of fourteen days of testing under conditions of SO2 and salt fog.
4.Environmental Aging Performance: Withstands ultraviolet radiation, dryness, moisture, and temperature changes for six weeks.
5.Advantages:

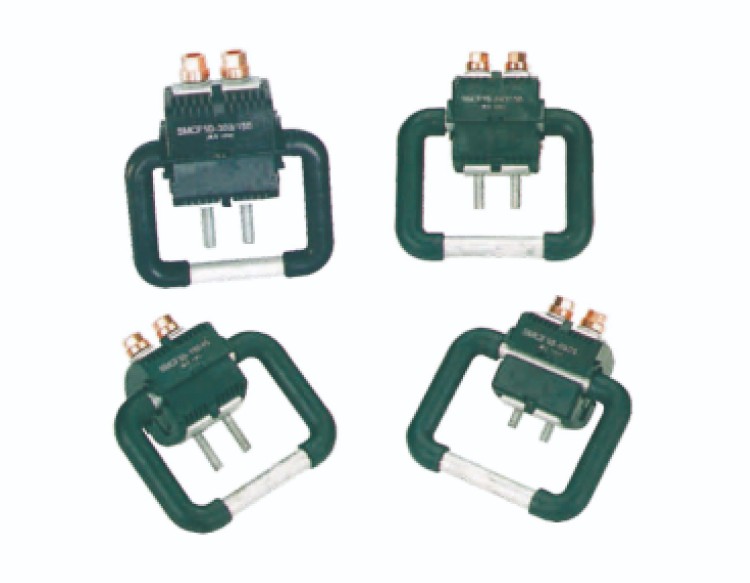

1)The SMCF10 connector ensures safe, reliable grounding protection without the need for maintenance.
2)Its simple installation and economical cost make it a practical choice for electrical applications.
