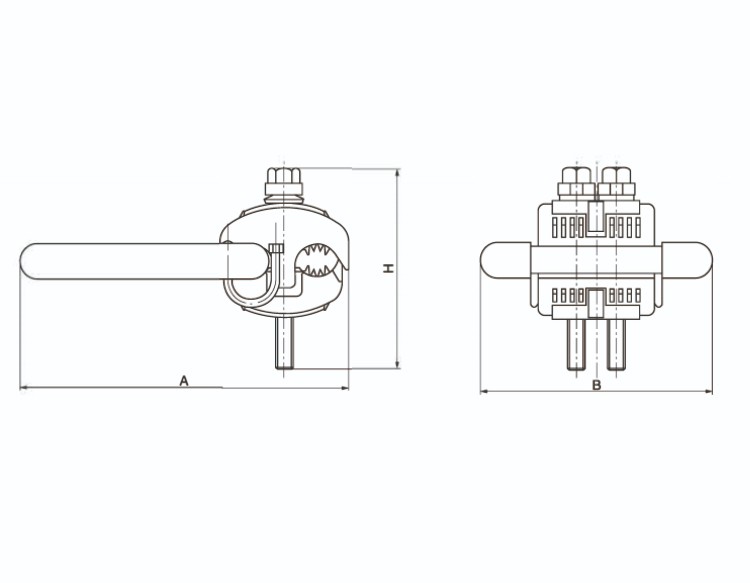

| Modle | Applicable voltage(kV) | Applicable cable(mm2) | Dimensions(mm) | Nominal Current(A) | Bolt No. (Piece) | ||
| A | B | H | |||||
| SMCF-240/150 | 1 | 150~240 | 160 | 140 | 113 | 476 | 2 |
| SMCF-185/95 | 1 | 95~185 | 158 | 140 | 113 | 399 | 2 |
| SMCF-120/35 | 1 | 35~120 | 152.5 | 106 | 87 | 299 | 2 |
| SMCF-95/16 | 1 | 16~95 | 139 | 88 | 78 | 257 | 1 |
Here are its key features:
1.Application: Suitable for grounding protection during electric power construction for 1 kV or below insulated overhead lines.
2.Installation: Simple installation without stripping the insulated coat. It allows branching in random locations of the cable without cutting off the main cable.
3.Safety: Resistant to distortion, quake, fire, wet conditions, electrochemical corrosion, and aging. Requires no maintenance and has a successful track record of 30 years.
4.Economical: Saves installation space, reduces bridge and land construction costs, and eliminates the need for terminal boxes and junction boxes.
