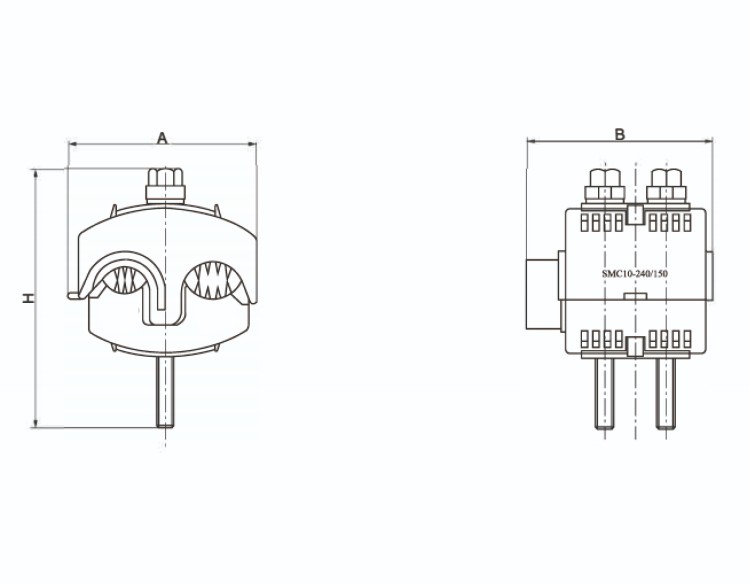

| Modle | Applicable cable(mm2) | Dimensions(mm) | Nominal Current(A) | Bolt No. (Piece) | |||
| Main line | Branch line | A | B | H | |||
| SMC10-300/300 | 150~300 | 150~300 | 100 | 85 | 136 | 600 | 2 |
| SMC10-300/150 | 150~300 | 35~150 | 92 | 83 | 118 | 342 | 2 |
| SMC10-240/240 | 95~240 | 95~240 | 90 | 85.5 | 113 | 476 | 2 |
| SMC10-240/150 | 95~240 | 50~150 | 85.5 | 83 | 113 | 342 | 2 |
| SMC10-240/50 | 95~240 | 16~50 | 76 | 83 | 113 | 162 | 2 |
| SMC10-185/50 | 95~185 | 16~50 | 78.5 | 80.5 | 113 | 162 | 2 |
| SMC10-95/70 | 25~95 | 16~70 | 68 | 82.5 | 97.5 | 207 | 2 |
Here are its key features:
1.Suitable for Aluminum and Copper Conductors: The connector works with both aluminum and copper conductors.
2.Potential-Free Tightening Bolts: These bolts allow safe installation on live lines.
3.Waterproof and Corrosion-Resistant: The connector teeth are factory greased and covered with a rubber seal to prevent water entry and corrosion.
4.Contact Plates: Made of tinned copper, ensuring optimal contact area transition.
5.Insulation Material: The insulation material is weather and UV resistant glass fiber-reinforced polymer.
