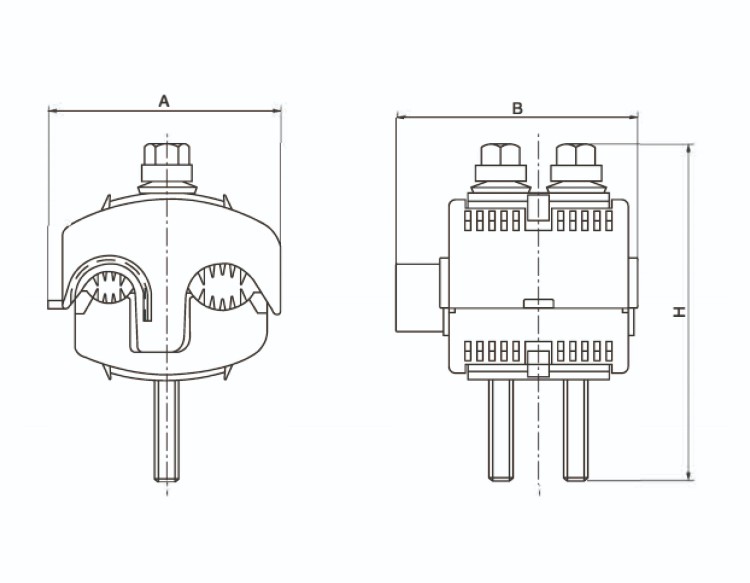

| Modle | Applicable cable(mm2) | Dimensions(mm) | Nominal urrent(A) | Bolt No. (Piece) | |||
| Main line | Branch line | A | B | H | |||
| SMC-150/150 | 35~150 | 35~150 | 65 | 53 | 87 | 342 | 2 |
| SMC-120/50 | 25~120 | 10~50 | 56 | 51 | 78 | 162 | 1 |
| SMC-95/50 | 25~95 | 6~50 | 54 | 51 | 78 | 162 | 1 |
| SMC-50/35 | 16~50 | 4~35 | 45 | 51 | 68 | 132 | 1 |
| SMC-95/10 | 25~95 | 1.5~10 | 37 | 25 | 58 | 75 | 1 |
| SMC-50/10 | 10~50 | 1.5~10 | 32 | 32 | 49 | 75 | 1 |
| SMC-240/240 | 95~240 | 95~240 | 90 | 85.5 | 113 | 476 | 2 |
| SMC-240/185 | 95~240 | 70~185 | 85.5 | 83 | 113 | 399 | 2 |
| SMC-240/50 | 150~240 | 16~50 | 76 | 83 | 113 | 162 | 2 |
| SMC-185/95 | 70~185 | 16~95 | 78.5 | 80.5 | 113 | 257 | 2 |

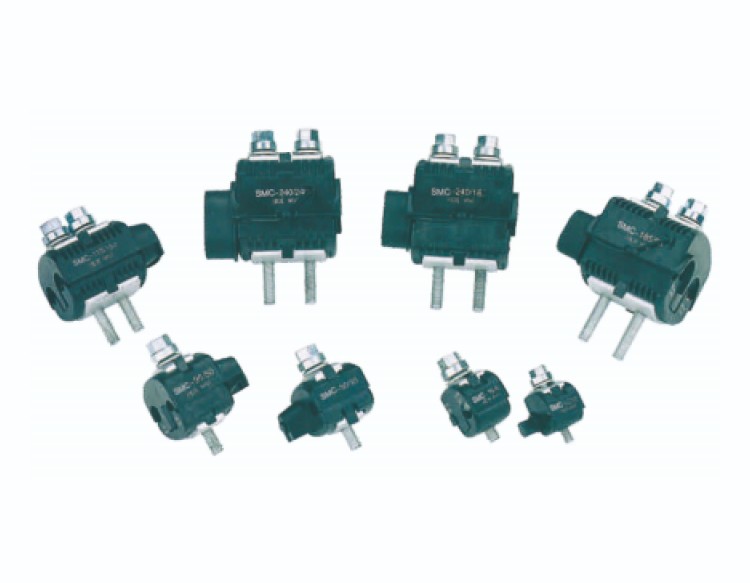

Here are its key features:
1.Suitable for Aluminum and Copper Conductors: The connector works with both aluminum and copper conductors.
2.Potential-Free Tightening Bolts: These bolts allow safe installation on live lines.
3.Waterproof and Corrosion-Resistant: The connector teeth are factory greased and covered with a rubber seal to prevent water entry and corrosion.
4.Contact Plates: Made of tinned copper, ensuring optimal contact area transition.
5.Insulation Material: The insulation material is weather and UV resistant glass fiber-reinforced polymer.
6.Various Sizes Available: Different models accommodate wire sizes from 16 mm² to 240 mm².
