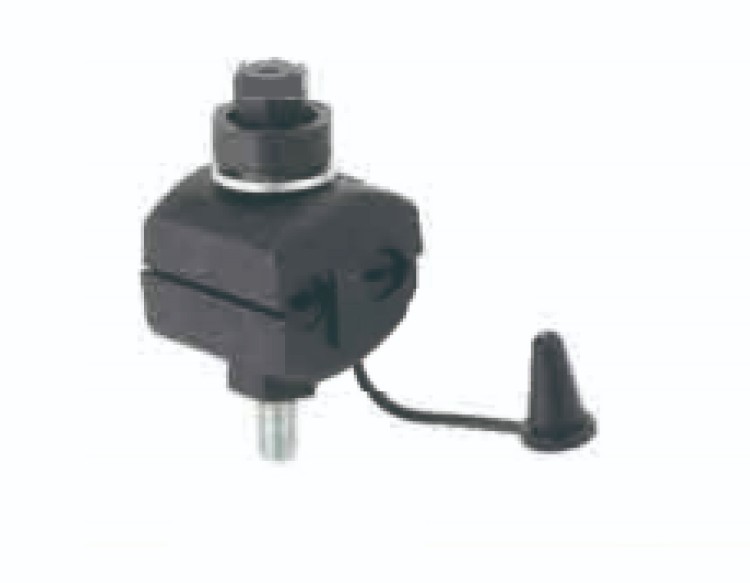

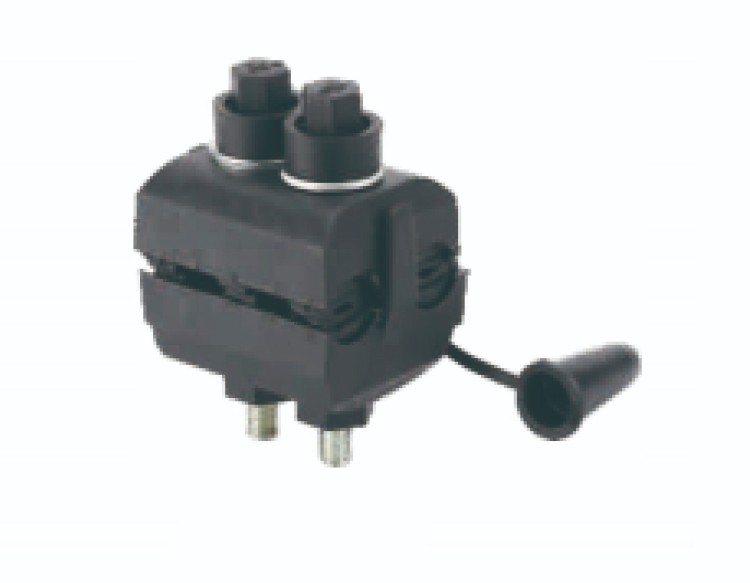

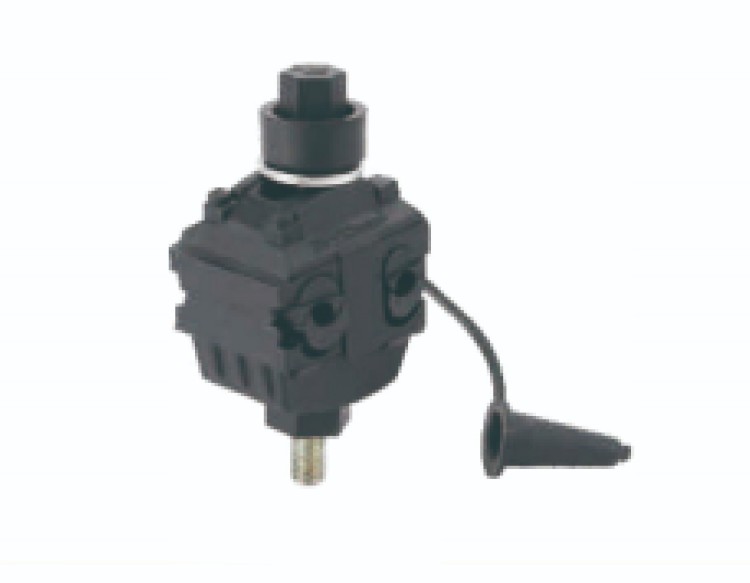

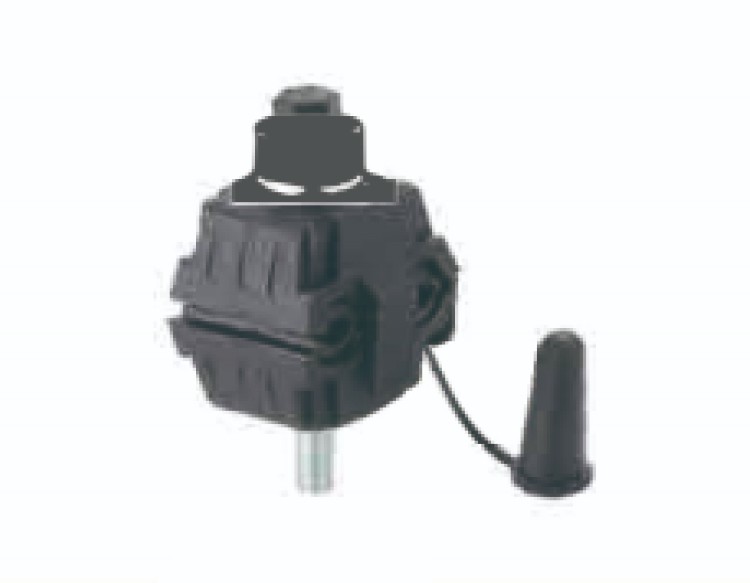

Insulation Piercing Connector-YN

Here are the key details:

1.Composition:

  1)Reinforced shell

  2)Piercing blade

  3)Sealing gasket

  4)Waterproof silicone grease

  5)High-strength bolts

  6)Torque nuts

  7)Cable terminal caps

2.Installation Process:

  When branching or connecting cables:

    1)Insert the cable branch line terminal into the waterproof terminal.

    2)Determine the location for the main line branch.

    3)Use a socket wrench to tighten the torque nut on the clamp.

    4)The piercing blade will penetrate the cable insulation layer and make contact with the conductor.

    5)The sealing gasket ensures waterproofing.

    6)Silicone grease provides additional protection.

    7)Once the torque reaches the set value, the connection is complete.

3.Advantages:

  1)Easy installation without cutting off the main cable or stripping insulation.

  2)Fully insulated joints suitable for live operations.

  3)Can be used at any position along the cable.

  4)Resistant to distortion, shock, water, corrosion, and aging.

Using YN insulation piercing connectors offers cost-effective benefits compared to traditional methods.
