| Modle | Conductor Range(mm2) | No.Bolt | |
| Main | Tap | ||

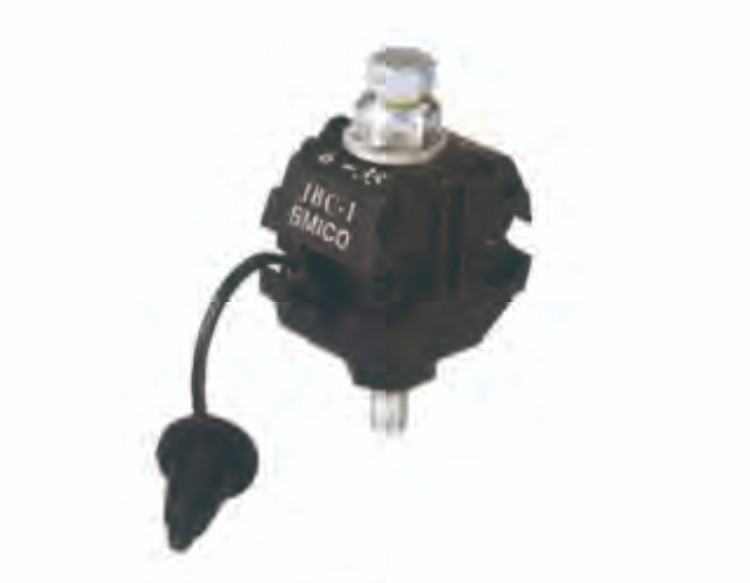

| JBC-1 | 35-70 | 6-35 | 1 |
| JBC-2 | 35-150 | 35-150 | 1 |
| JBC50-240 | 50-240 | 50-240 | 2 |
Here are the key details:
1.Installation:
1)JBC connectors allow easy installation by tightening bolts to force teeth to penetrate the insulation of both the main line and tap line simultaneously.
2)Stripping of insulation is avoided for both lines.
2.Features:
1)Suitable for branch connections.
2)Main line: Insulated aluminum cable (0.2-35 mm²).
3)Tap line: Insulated aluminum or copper cable.
4)High-strength, weather-resistant molded body.
5)Teeth penetrate the cable without compromising conductor strength.
6)Elastic seal and silicone grease ensure excellent waterproofing and corrosion resistance.
