| Modle | Main line section | Branch section | Nominal current | Outline size | Weight | Piercing depth |
| SM756 | (0.75-6) | (0.75-6) | 41 | 21x27x23 | 10 | (1-1.5) |
| SM041 | (6-10) | (1.5-6) | 41 | 26x39x54 | 85 | (1.5-2) |
| SM101 | (1.5-2.5) | (1.5-10) | 55 | 27x41x62 | 55 | (1.5-2) |

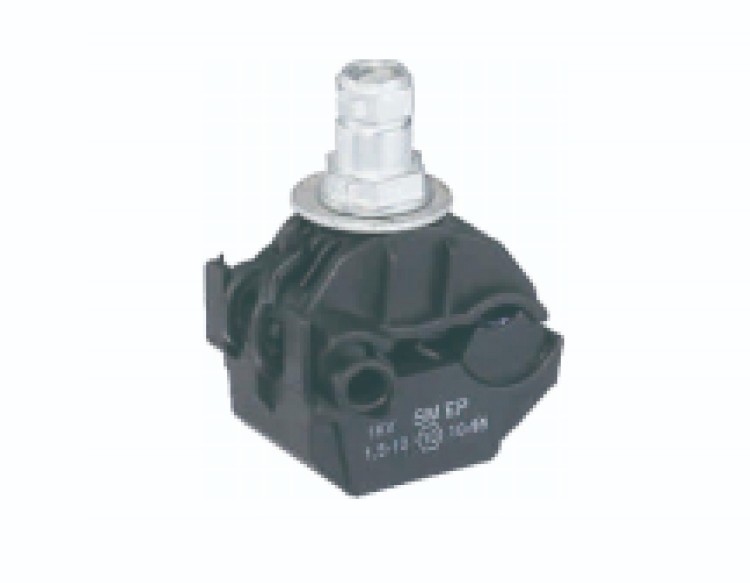

| SMEP | (16-95) | (1.5-10) | 55 | 27x41x62 | 55 | (1-2) |
| SM2-95 | (16-95) | （4-35（50）） | 157 | 46x52x87 | 160 | (1.5-2) |
| SM2-150 | (50-150) | （6-35（50）） | 157 | 46x52x87 | 162 | (1.5-2.5) |
| SM3-95 | (25-95) | （25-95） | 214 | 50x61x100 | 198 | (1.5-2) |
| SM4-150 | (50-150) | （50-150） | 316 | 50x64x100 | 219 | (1.5-2.5) |
| SM6 | (120-240) | （25-120） | 211 | 52x68x100 | 360 | (1.5-2.5) |
| SM7 | (150-240) | （10-25） | 102 | 52x68x100 | 336 | (1.5-2.5) |
| SM240 | (95-240) | （95-240） | 425 | 83x130x130 | 1040 | (1.5-2.5) |
| SM300 | 300 | ANY | 425 | 83x130x130 | 1040 | (1.5-2.5) |
| SM400 | 400 | ANY | 425 | 83x130x130 | 1040 | (1.5-2.5) |
Here are the key features and details:
1.Design and Purpose:
1)IPCs are used for main-to-main connections in low voltage overhead distribution networks.
2)They allow branch connections without stripping cable insulation.
3)The connector body contains tin-plated copper blades (P3/P4) embedded in a sealing compound for weatherproof electrical contact.
4)The plastic body with fiberglass provides high UV resistance and mechanical strength.
5)A single torque control nut secures the connector halves, shearing off when the teeth pierce the insulation and make contact with conductor strands.
6)The bolt allows live line installation but offload.
2.Features:
1)Expanded wire range acceptance.
2)Compatibility with copper conductors.
3)Waterproof design.
4)End caps for taps and splices.
5)Single-bolt application with ring washers for residual pressure.
6)Torque control nut ensures precise pressure on conductor and insulation.
