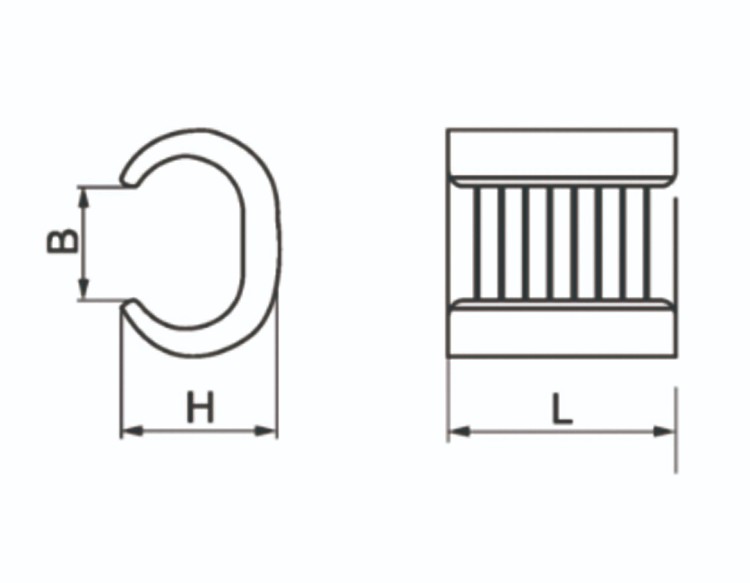

| Catalog No. | Dimensions(mm) | Conductor Cross-setion(mm2) | ||
| L | B | H | ||
| U-T44 | 20 | 8.3 | 14 | 27-44 |
| U-T60 | 22.5 | 10.8 | 15 | 45-60 |
| U-T76 | 22.5 | 9.5 | 17 | 61-76 |
| U-T98 | 25 | 14.5 | 19 | 77-98 |
| U-T122 | 26 | 14 | 21 | 99-122 |
| U-T154 | 28 | 17 | 25 | 123-154 |
| U-T190 | 35 | 17 | 25 | 155-190 |
| U-T240 | 40 | 20 | 29 | 191-240 |
| U-T288 | 45 | 22 | 32 | 241-288 |
| U-T365 | 50 | 27.5 | 34 | 289-365 |
| U-T450 | 60 | 28 | 41 | 366-450 |

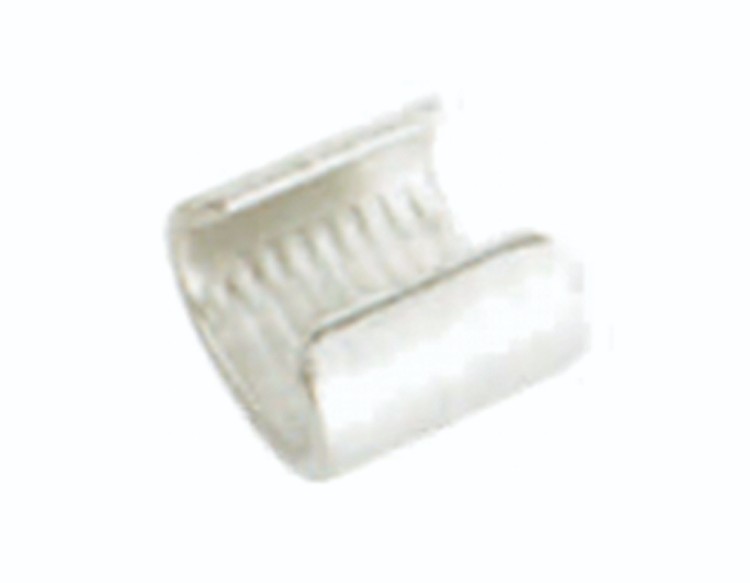

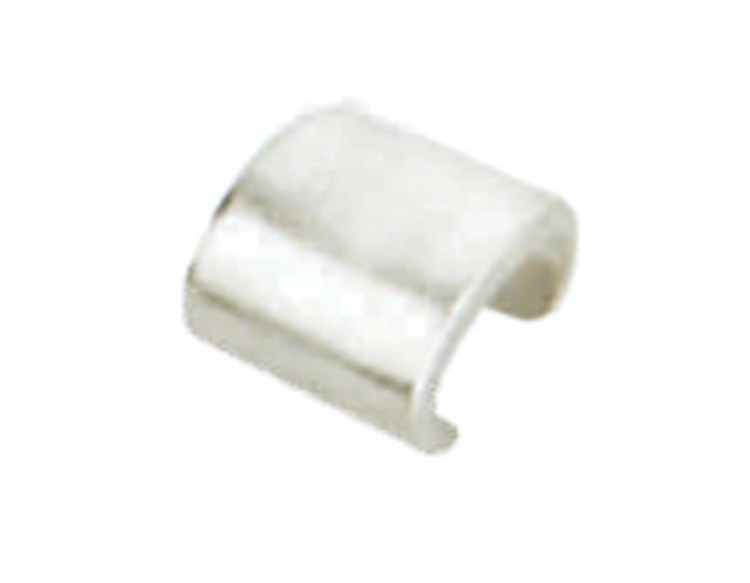

Here are its key features:
1.Material: Made from copper with a purity of ≥ 99.9%.
2.Surface: Tin-plated for corrosion resistance.
3.Internal Surface: Indented to enhance tensile strength.
4.Mouth: Chamfered to protect the conductor from damage.
