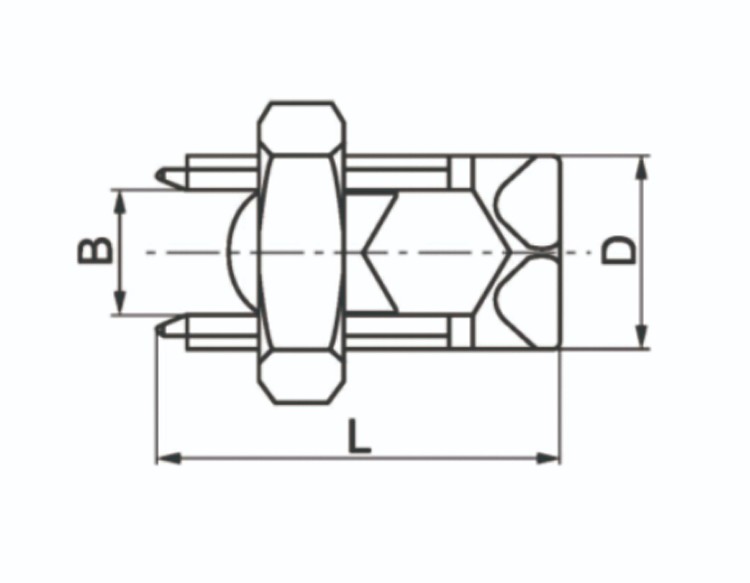

| Catalog No. | Dimensions(mm) | |||
| L | D | B | ScrewThread | |
| SB16-35 | 38 | 17 | 8.5 | 5/8-18UNF-2A |
| SB25-50 | 42 | 19 | 10 | 3/4-16UNF-2A |
| SB50-70 | 46 | 21 | 11 | 3/4-16UNF-2A |
| SB95-120 | 50 | 26 | 14.5 | 1-12UNF-2A |
| SB150-185 | 60 | 30 | 17.2 | 1 3/16-12UNF-2A |
| SB200-240 | 65 | 32 | 19.3 | 1¼-12UNF-2A |
| SB 10 | 27 | 13 | 5 | ½--20UNF-2A |
| SB 16 | 30 | 14 | 6 | G1/4 |
| SB 25 | 32 | 17 | 7 | 5/8-18UNF-2A |
| SB 35 | 38 | 17 | 8.5 | 5/8-18UNF-2A |
| SB 50 | 42 | 19 | 10 | 3/4-16UNF-2A |
| SB 70 | 46 | 21 | 11 | 3/4-16UNF-2A |
| SB 95 | 46 | 26 | 13.3 | 1-12UNF-2A |
| SB 120 | 50 | 26 | 14.5 | 1-12UNF-2A |
| SB 150 | 55 | 30 | 16.5 | 1 3/16-12UNF-2A |
| SB 185 | 60 | 30 | 17.2 | 1 3/16-12UNF-2A |
| SB 240 | 65 | 32 | 19.3 | 1¼-12UNF-2A |
Here are the key points:
1.Function:

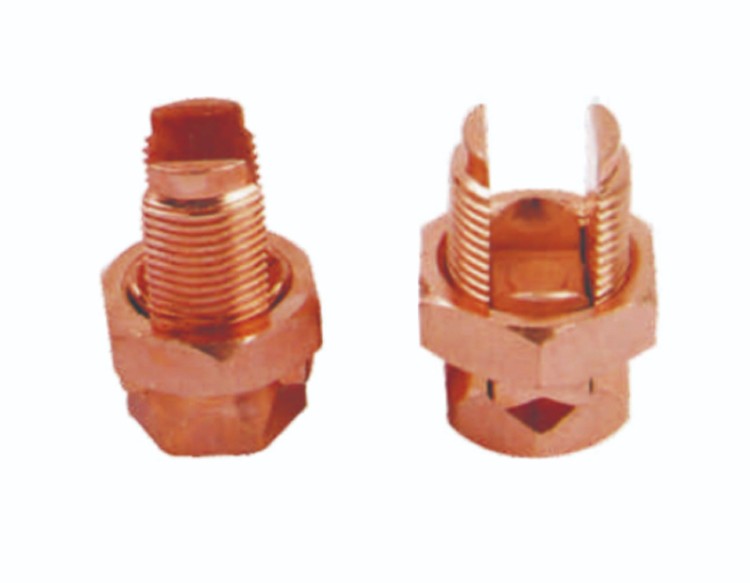

1)Joining Cables: Split bolts connect two cables together, whether for extension or branching purposes.
2)Materials Compatibility: They work with various cable types, including rigid and flexible conductors, as well as different cross-sectional areas.
2.Types of Split Bolt Connectors:
1)SERVIT: Made from high-strength copper alloys, these tin-plated split bolts accommodate combinations of copper, aluminum, ACSR, AAAC, 5005, and steel.
2)T SERVIT: Aluminum alloy construction with tin plating, suitable for aluminum-to-aluminum, aluminum-to-copper, and copper-to-copper connections.
3)SERVIT POST: Connects up to two grounding wires to steel structures, fences, transformers, or copper bars.
4)BULKHEAD: Consists of male and female split bolts for through-panel connections (e.g., inside and outside a casing).
5)HANDYBUG: A versatile option for splicing, branching, or terminating cables, meeting burial standards.
3.Benefits:
1)Cost-Effective: Simplified installation without soldering.
2)Reliable: Ensures secure connections.
3)Durable: Suitable for direct burial without replacement.
