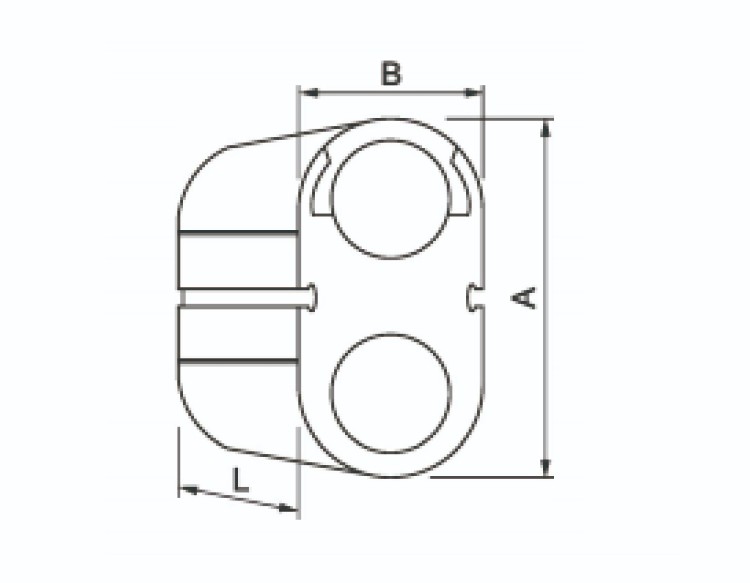

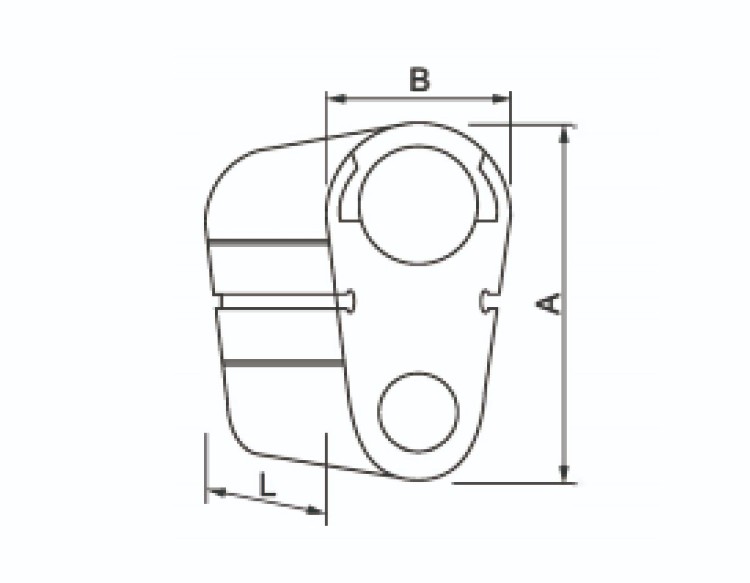

| Catalog No. | Hole1 mm2 | Hole2 mm2 | Dimensions(mm) | ||
| A | B | L | |||
| CPTO10-16/10-16 | 10-16 | 10-16 | 18.8 | 10.5 | 35.3 |
| CPTO10-35/10-16 | 25-35 | 10-16 | 22.8 | 14.5 | 37.7 |
| CPTO10-35/16-35 | 25-35 | 25-35 | 26 | 14 | 38.6 |
| CPTO50-70/10-16 | 50-70 | 10-16 | 29.5 | 19.5 | 37 |
| CPTO50-70/16-35 | 50-70 | 25-35 | 28.4 | 20 | 38 |
| CPTO50-70/50-70 | 50-70 | 50-70 | 33.8 | 20 | 45.5 |
| CPTO70-150/50-70 | 70-150 | 50-70 | 44 | 23.6 | 60.3 |
| CPTO70-150/70-150 | 70-150 | 70-150 | 49 | 23.6 | 60.3 |
| CPTO150-240/70-150 | 150-240 | 70-150 | 54.8 | 30.3 | 65 |
| CPTO150-240/150-240 | 150-240 | 150-240 | 62.4 | 30.3 | 75.5 |
Here are the key details:

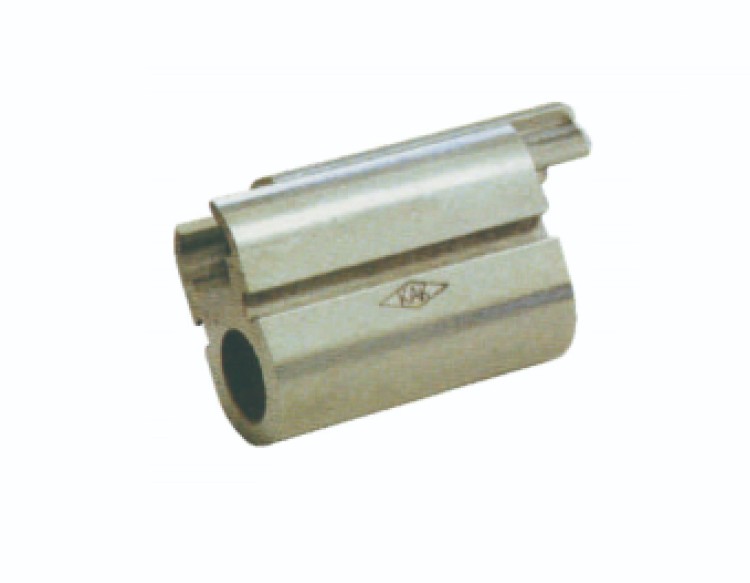

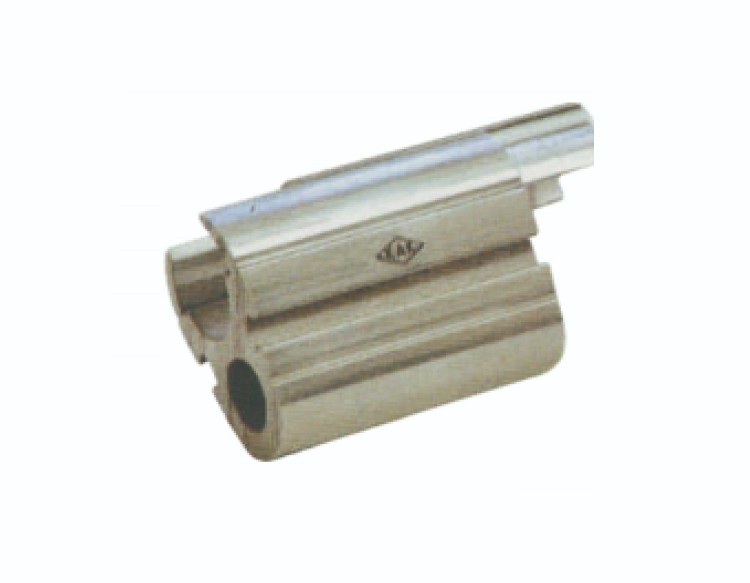

1.Design: The Type O connector features a universal and reversible design, effectively separating the run and tap conductors to minimize galvanic corrosion.
2.Application: It is suitable for a wide range of conductors.
3.Installation: The connector can be gripped using a tool and easily slipped over the line during installation.
4.Material: Made of high-strength and highly conductive 1350 aluminum alloy.
5.Features:
1)Bendable tabs secure both run and tap conductors, allowing linemen to work efficiently with installation tools.
2)The robust aluminum construction minimizes corrosion due to galvanic effects.
