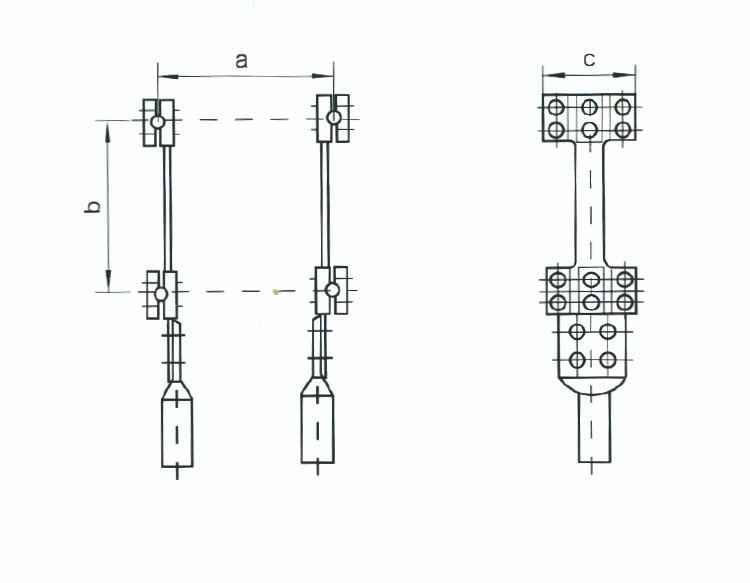

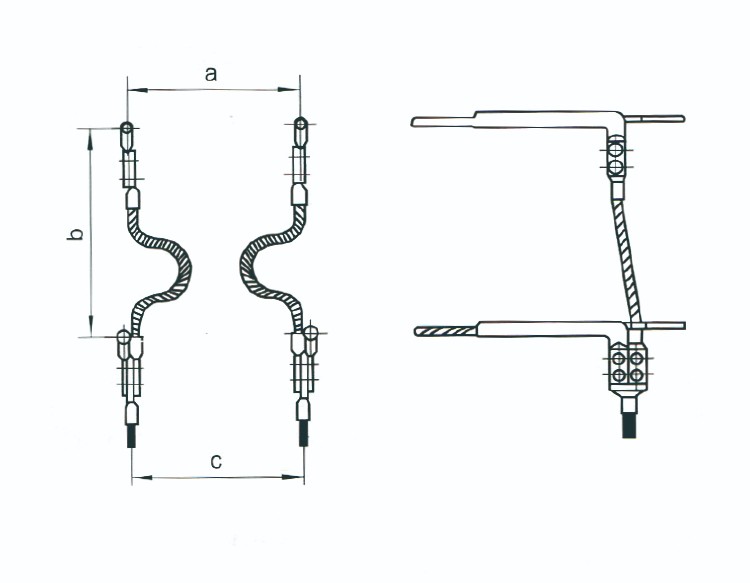

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Weight(KG) | |||
| wire Jumper | nultiple conductor | a | b | c | ||
| JR-2/4-1 | LGJ-300 | LGKK-900 | 450 | 450 | 346 | 20.6 |
| JR-2/4-2 | LGJ-400 | LGKK-900 | 450 | 450 | 346 | 22.8 |
| JR-2/4-3 | LGJ-300 | LGJQT-1400 | 450 | 450 | 353 | 21.6 |
| JR-2/4-4 | LGJ-400 | LGJQT-1400 | 450 | 450 | 160 | 16.6 |
| JT-2×1400/4×400 | LGJ-400 | LGJQT-1400 | 450 | 450 | 160 | 16.6 |
Here are the key details:
1.Technics: These connectors are cast using specific techniques.
2.Usage: They are commonly used as substation fittings.
3.Type: The connectors fall into the category of terminal clamps.
1)Clamp Material: The clamp itself is made of aluminum alloy.
2)Tightening Parts Material: The tightening parts are constructed from steel.
