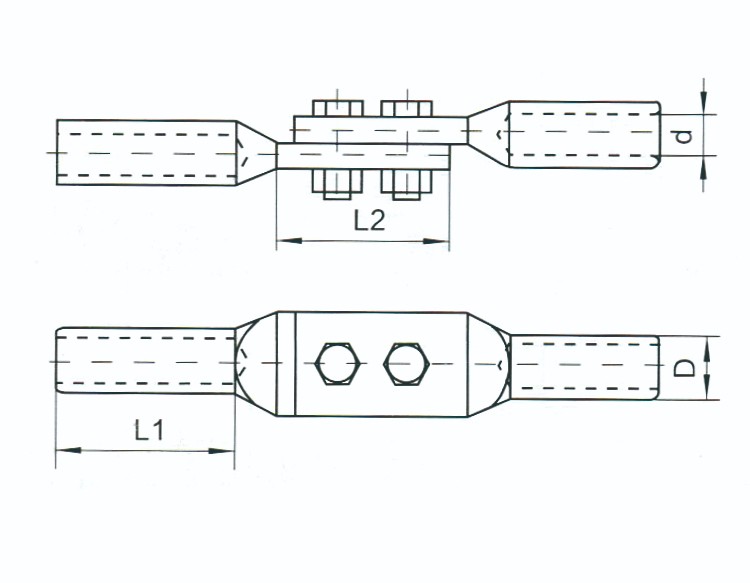

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Weight(KG) | |||
| D | d | L1 | L2 | |||
| JYT-35/6 | LGJ-35/6 | 16 | 9.5 | 60 | 65 | 0.41 |
| JYT-50/8 | LGJ-50/8 | 18 | 11 | 60 | 65 | 0.45 |
| JYT-70/10 | LGJ-70/10 | 22 | 13 | 70 | 65 | 0.54 |
| JYT-95/15 | LGJ-95/15 | 26 | 15 | 80 | 65 | 0.62 |
| JYT-120/7 | LGJ-120/7 | 26 | 16 | 80 | 85 | 0.6 |
| JYT-120/20 | LGJ-120/20 | 26 | 16.5 | 80 | 85 | 0.58 |
| JYT-150/8 | LGJ-150/8 | 30 | 17.5 | 90 | 85 | 0.84 |
| JYT-150/20 | LGJ-150/20 | 30 | 18 | 90 | 85 | 0.84 |
| JYT-150/25 | LGJ-150/25 | 30 | 18.5 | 90 | 85 | 0.84 |
| JYT-185/10 | LGJ-185/10 | 32 | 19.5 | 90 | 85 | 0.94 |
| JYT-185/25 | LGJ-185/25 | 32 | 20.5 | 90 | 85 | 0.9 |
| JYT-185/30 | LGJ-185/30 | 32 | 20.5 | 90 | 85 | 0.9 |
| JYT-210/10 | LGJ-210/10 | 34 | 20.5 | 100 | 85 | 1.18 |
| JYT-210/25 | LGJ-210/25 | 34 | 21.5 | 100 | 85 | 1.14 |
| JYT-210/35 | LGJ-210/35 | 34 | 22 | 100 | 85 | 1.1 |
| JYT-240/30 | LGJ-240/30 | 36 | 23 | 110 | 85 | 1.21 |
| JYT-240/40 | LGJ-240/40 | 36 | 23 | 100 | 85 | 1.21 |
| JYT-300/15 | LGJ-300/15 | 40 | 24.5 | 110 | 105 | 1.74 |
| JYT-300/25 | LGJ-300/25 | 40 | 25 | 110 | 105 | 1.74 |
| JYT-300/40 | LGJ-300/40 | 40 | 25.5 | 110 | 105 | 1.74 |
Here are the key points:
1.Function: Jumper connectors "jump" or bridge the gap between two points, allowing electrical signals to flow freely.
2.Types:
1)Closed Top/Grip: Fully enclosed connectors.
2)Insulated: Covered to prevent accidental short circuits.
3)Non-Insulated: Uncovered connectors.
4)Open Top/Grip: Partially enclosed with an open top.
3.Applications:
1)Used in breadboards or prototype circuits.
2)Connect components without soldering.
4.Common Use Cases:
1)Configuring settings on computer peripherals.
2)Interconnecting circuit components.
