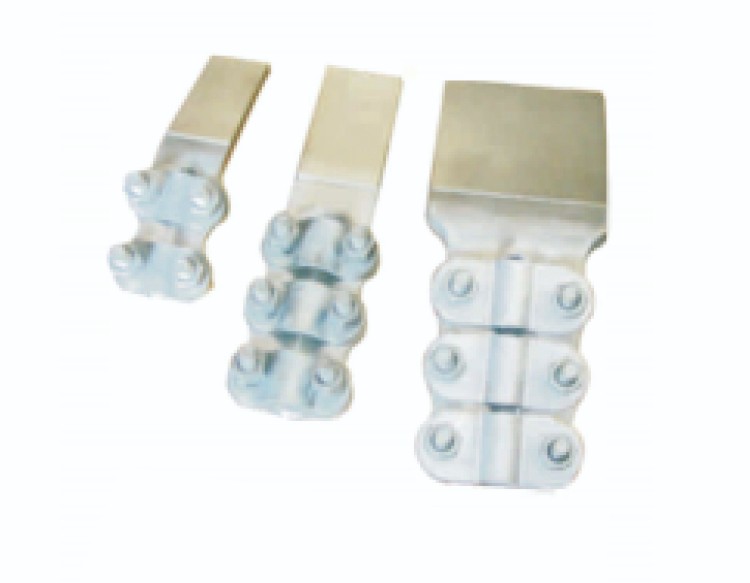

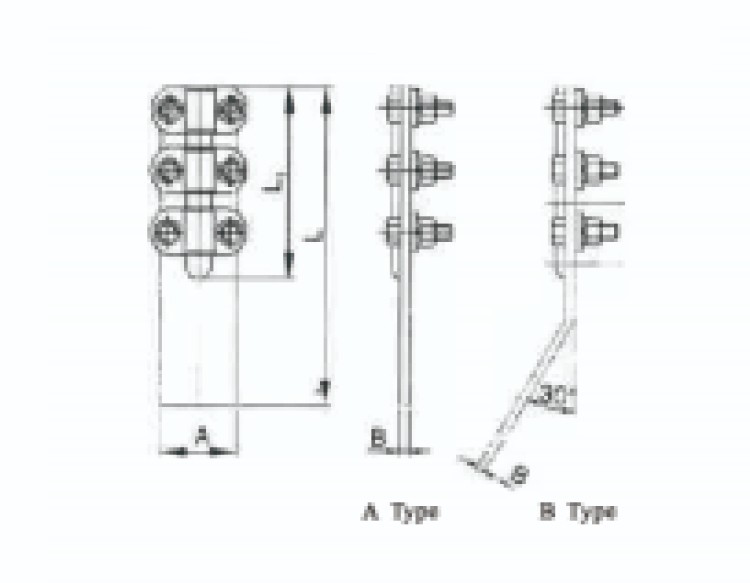

| Model | Applicable TraverseSection(mm2) | Dimensions(mm) | ||||
| B | A | L1 | L2 | L | ||
| / | 35-50 | 6 | 40 | 65 | 45 | 120 |
| / | 70-95 | 6 | 40 | 65 | 45 | 136 |
| SLG-1Q | 35-50 | 6 | 40 | 80 | 65 | 145 |
| SLG-2Q | 70-95 | 6 | 40 | 65 | 80 | 175 |
| SLG-2Q-80 | 70-95 | 8 | 80 | 80 | 80 | 185 |
| SLG-3Q-80 | 70-95 | 10 | 100 | 80 | 100 | 205 |
| SLG-3Q | 120-150 | 8 | 50 | 80 | 85 | 225 |
| SLG-3Q-63 | 120-150 | 8 | 63 | 125 | 85 | 239 |
| SLG-3Q-80 | 120-150 | 8 | 80 | 125 | 85 | 239 |
| SLG-3Q-100 | 120-150 | 10 | 100 | 125 | 100 | 2960 |
| SLG-4Q | 185-240 | 8 | 50 | 125 | 85 | 225 |
| SLG-4Q-63 | 185-240 | 8 | 63 | 125 | 85 | 239 |
| SLG-4Q-80 | 185-240 | 8 | 80 | 125 | 85 | 239 |
| SLG-4Q-100 | 185-240 | 10 | 100 | 125 | 100 | 260 |
| SLG-5Q | 300-400 | 10 | 63 | 130 | 85 | 245 |
| SLG-5Q-80 | 300-400 | 10 | 80 | 130 | 85 | 245 |
| SLG-5Q-100 | 300-400 | 10 | 100 | 130 | 100 | 260 |
Here are the key details:
1.Purpose:
1)The SLG-Q clamp facilitates secure connections between the bus-bar down lead and equipment terminals.
2)It's used for terminal connections between the bus-bar down lead and electrical equipment.
2.Materials:
1)Available in both copper and aluminum versions.
2)Suitable for down leads made of AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced).
3.Construction:
1)Utilizes brazing technology, resulting in a dense and high-strength structure.
2)Avoids defects like internal porosity, sand inclusions, and slag inclusion that can occur with casting processes, reducing the risk of compression cracking and poor contacts.
4.Application:Use the SLG-Q clamp for connecting aluminum or copper conductors to equipment terminals.
