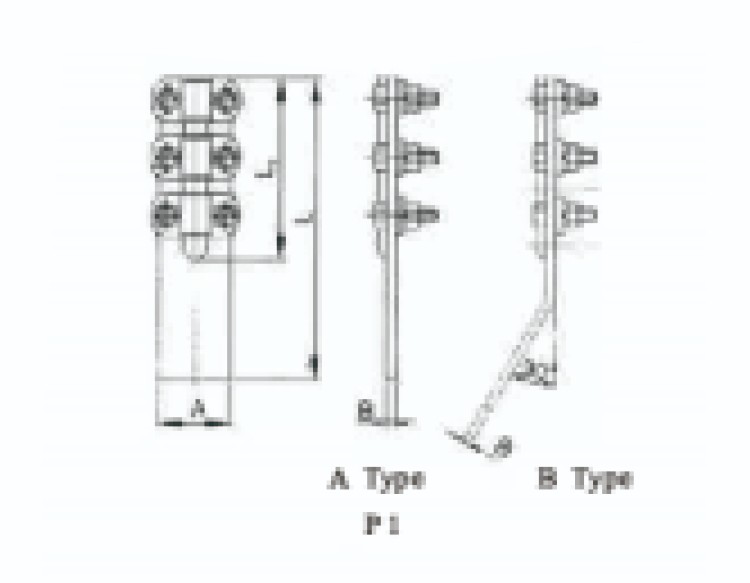

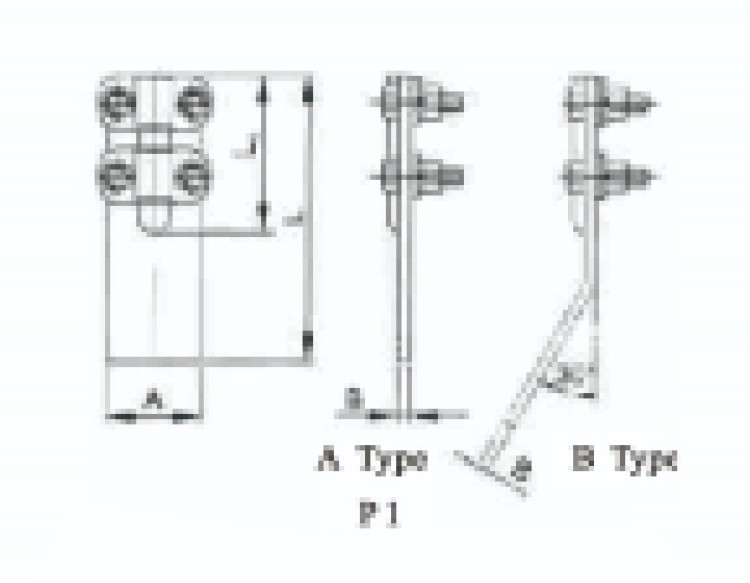

| Model | Applicable TraverseSection(mm2) | Dimensions(mm) | ||||
| B | A | L1 | L2 | L | ||
| SLG-1F | 35-50 P1 | 6（5） | 40 | 65 | 65 | 145 |
| SLG-2F | 70-95 P1 | 6（5） | 40 | 80 | 80 | 175 |
| SLG-3F | 35-50 P1 | 6.3 | 50 | 125 | 85 | 225 |
| SLG-4F | 70-95 P1 | 6.3 | 50 | 125 | 85 | 225 |
| SLG-3F-80 | 120-150 P2 | 6.3 | 80 | 125 | 85 | 225 |
| SLG-3F-80 | 185-240 P2 | 6.3 | 80 | 125 | 85 | 225 |
Here are the key details:

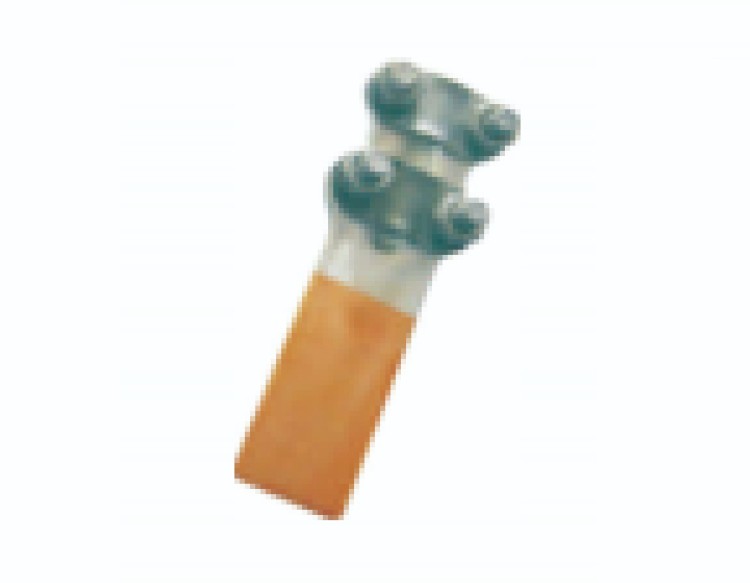

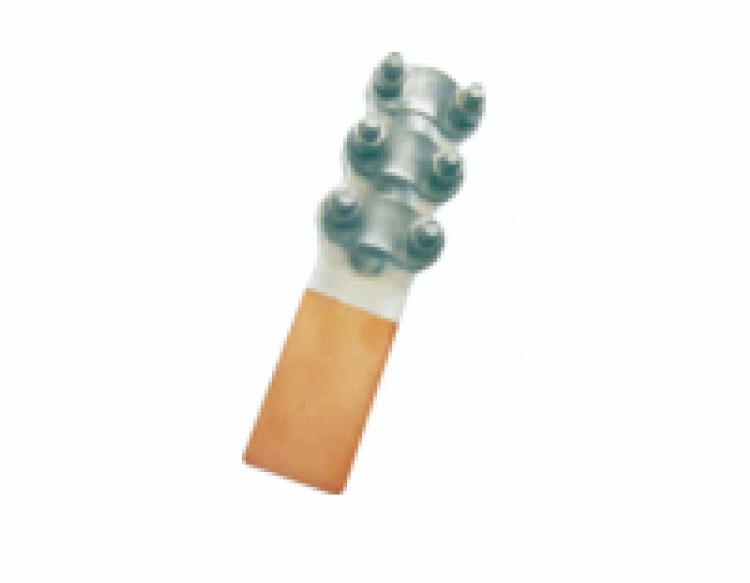

1.Purpose: The SLG-F clamp facilitates secure connections between the bus-bar down lead and equipment terminals (such as transformers, circuit breakers, dis-connectors, and wall bushings).
2.Materials:
1)Suitable for both copper and aluminum terminals.
2)Designed for down leads made of AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced).
3.Construction:
1)Features a bolted design for easy installation.
2)Ensures reliable electrical connections and minimizes resistance.
4.Application:Use the SLG-F clamp wherever you need to connect aluminum or copper conductors to equipment terminals.
