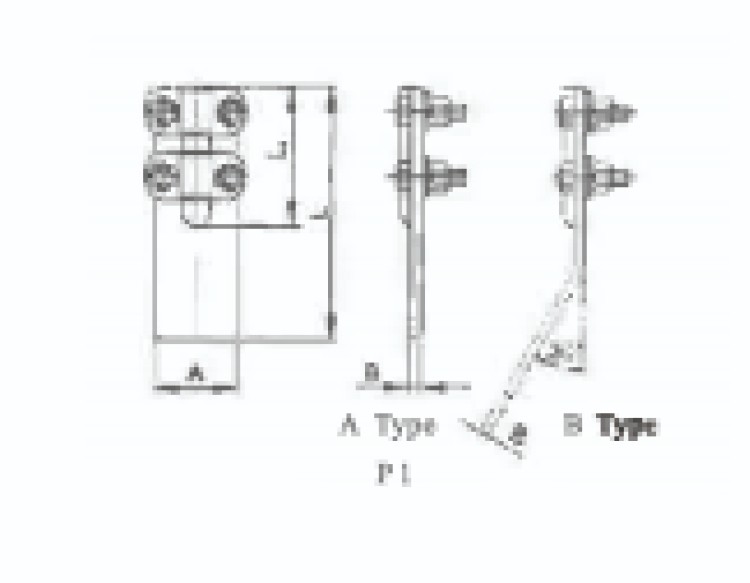

| Model | ApplicableTraverse Section(mm2) | Dimensions(mm) | |||
| B | A | L1 | L2 | ||
| / | 35-50P1 | 5 | 40 | 65 | 42 |
| / | 70-95 P1 | 5 | 40 | 80 | 45 |
| SLG-1 | 35-50P1 | 5 | 40 | 65 | 60 |
| SLG-2 | 70-95 P1 | 5 | 40 | 80 | 60 |
| SLG-3-80 | 120-150P2 | 6 | 80 | 125 | 85 |
| SLG-4-80 | 185-240 P2 | 6 | 80 | 125 | 85 |
| SLG-1(98) | 300-400 P1 | 6.3 | 40 | 65 | 65 |
| SLG-2(98) | 70-95 P1 | 6.3 | 40 | 80 | 80 |
| SLG-3(98) | 120-150P2 | 6.3 | 50 | 125 | 85 |
| SLG-4(98) | 185-240 P2 | 6.3 | 50 | 125 | 85 |
Here are some key details:

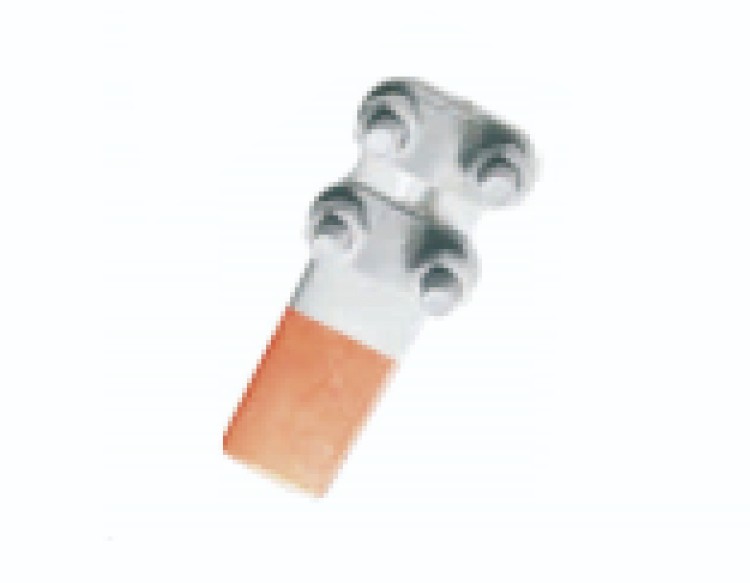

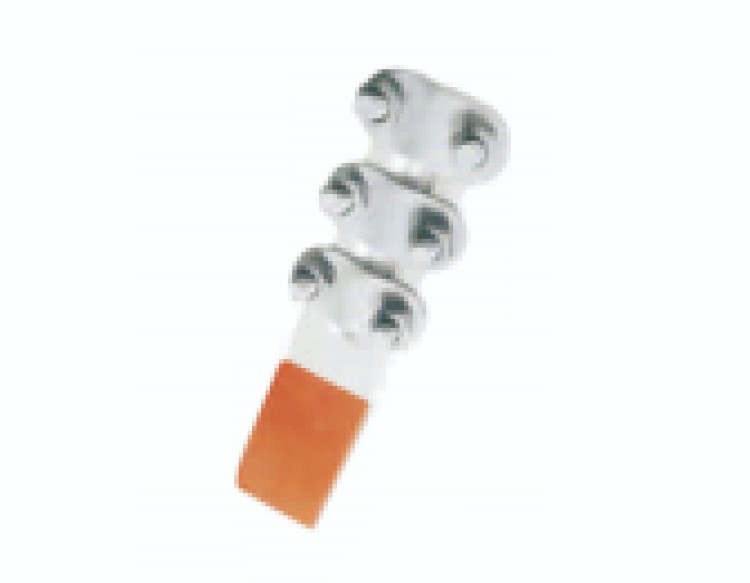

1.Purpose: The SLG clamp facilitates secure connections between the bus-bar down lead and equipment terminals (such as transformers, circuit breakers, dis-connectors, and wall bushings).
2.Materials:
1)The clamp is designed for both copper and aluminum terminals.
2)It's suitable for down leads made of AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced).
3.Construction:
1)The SLG clamp features a bolted design for easy installation.
2)It ensures reliable electrical connections and minimizes resistance.
4.Application:Use the SLG clamp wherever you need to connect aluminum or copper conductors to equipment terminals.
