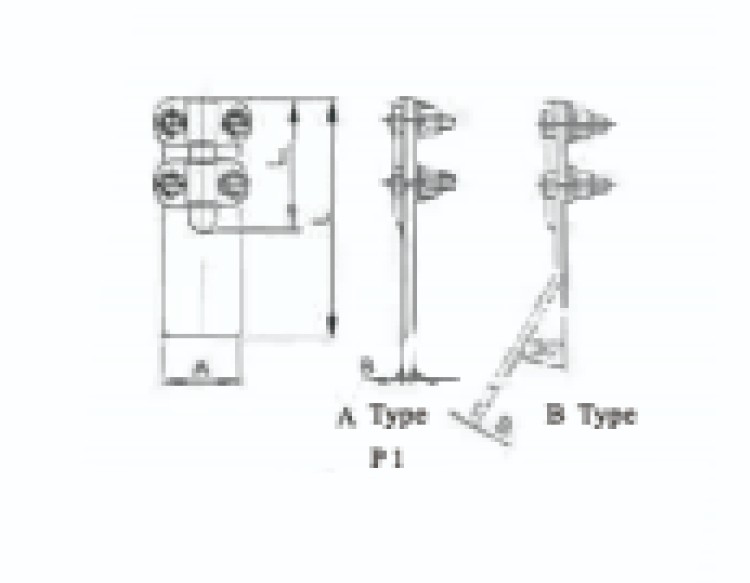

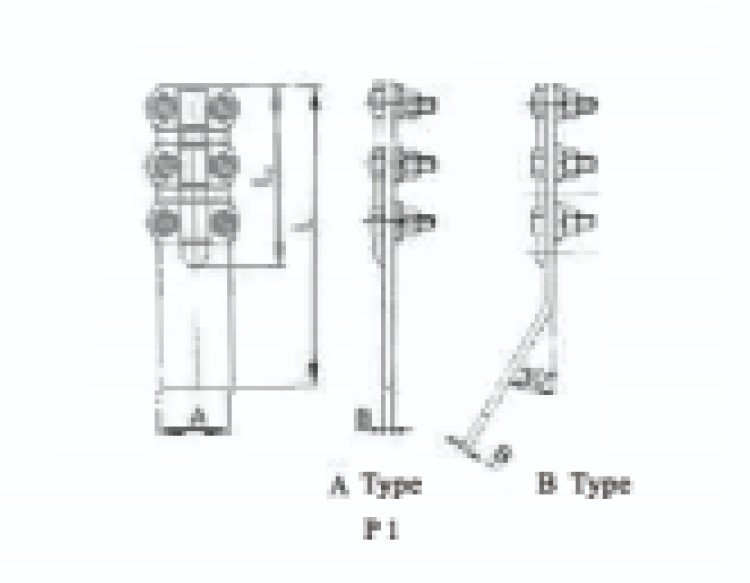

| Model | ApplicableTraverse Section(mm2) | Dimensions(mm) | |||
| B | A | L1 | L2 | ||
| / | 35-50 P1 | 4.5 | 40 | 65 | 120 |
| / | 70-95 P1 | 4.5 | 40 | 80 | 136 |
| ST/SL-1A(B) | 35-50 P1 | 4.5 | 40 | 65 | 145 |
| ST/SL-2A(B) | 70-95P1 | 4.5 | 40 | 80 | 175 |
| STlSL-3A(B) | 120-150 P2 | 5 | 50 | 125 | 225 |
| ST/SL-4A(B) | 185-240 P2 | 5 | 50 | 125 | 225 |
| ST/SL-5A(B) | 300-400 P2 | 6 | 63 | 130 | 245 |
| ST/SL-2A(B)-80 | 70-95 P1 | 5 | 80 | 80 | 185 |
| ST/SL-3A(B)-80 | 120-150 P2 | 5 | 80 | 125 | 239 |
| ST/SL-4A(B)-80 | 185-240 P2 | 5 | 80 | 125 | 239 |
| ST/SL-5A(B)-80 | 300-400 P2 | 8 | 80 | 130 | 245 |
| ST/SL-2A(B)-100 | 70-95 P1 | 6 | 100 | 80 | 205 |
| ST/SL-3A(B)-100 | 120-150 P2 | 6 | 100 | 125 | 260 |
| STISL-4A(B)-100 | 185-240 P2 | 6 | 100 | 130 | 260 |
| ST/SL-5A(B)-100 | 300-400 P2 | 8 | 100 | 130 | 260 |
| ST/SL-6A(B)-100 | 500-630 P2 | 8 | 100 | 130 | 260 |

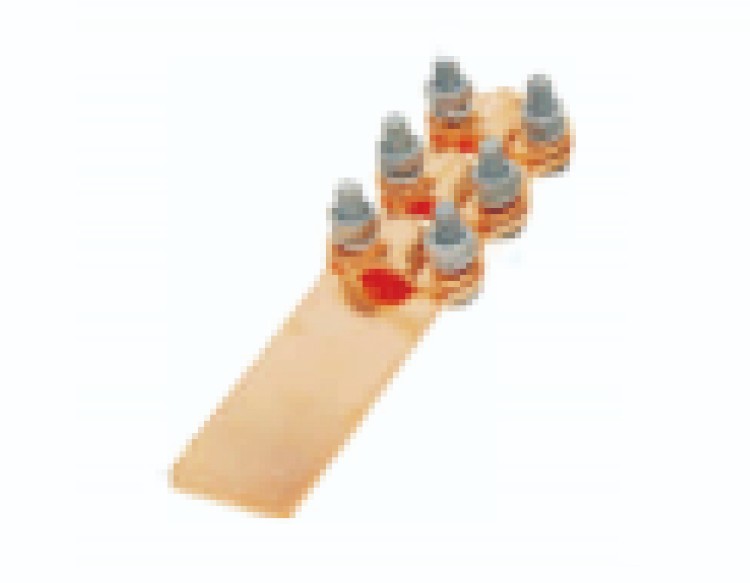

1.ST Bolt Copper Equipment Clamp:
1)Application: Used to connect the bus-bar down lead and the outgoing terminal of electrical equipment (such as transformers, circuit breakers, and dis-connectors).
2)Type: Bolt type equipment clamp.
3)Material: Made from copper.
4)Compatibility: Designed for outgoing wires, which are mostly aluminum stranded wire or steel core aluminum stranded wire.

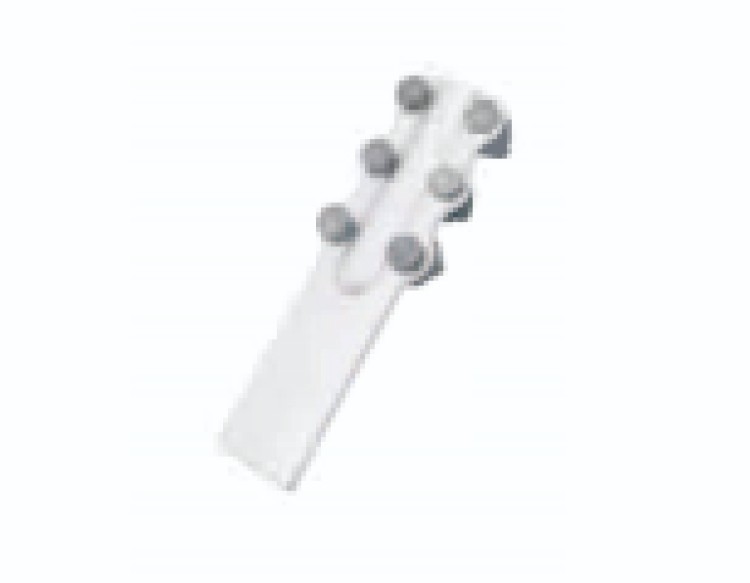

2.SL Bolted Aluminum Equipment Clamp:
1)Application: Similar to the ST clamp, it's used for connecting bus-bars and outgoing terminals.
2)Type: Bolted type equipment clamp.
3)Material: Made from aluminum.
4)Compatibility: Suitable for aluminum stranded wires.
