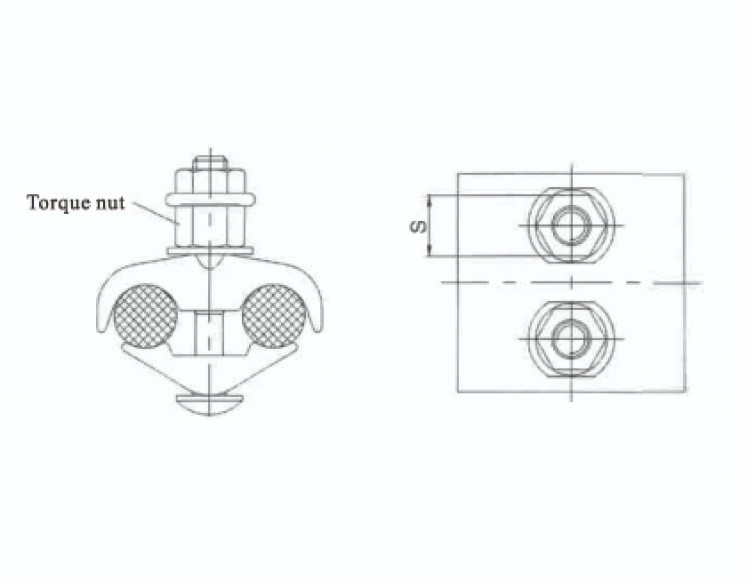

| Model | Applicable Traverse Section(mm2) | Applicable Branch Section(mm2) | Conductor Diamter Range | Bolt Quantity | S | Insta1lation torque N.w | Equivalent Model |
| JBY-302 | (10-95) | (10-95) | (Φ3.8-12) | 2xM8 | 14 | 25±3 | PGA-302、JBL-O |
| JBY-502 | (25-150) | (25-70) | (Φ6-16) | 2xM8 | 14 | 35±4 | PGA-502 |
| JBY-503 | (25-150) | (25-150) | (Φ6-16) | 3xM8 | 14 | 35±4 | PGA-502、JBL-1 |
| JBY-602 | (50-240) | (50-120) | (Φ8.3-18.4) | 2xM12 | 19 | 50±5 | PGA-602 |
| JBY-603 | (50-240) | (50-240) | (Φ8.3-18.4) | 3xM12 | 19 | 50±5 | PGA-603、JBL-2 |
| JBY-803 | (95-300) | (95-300) | (Φ11.6-23) | 3xM12 | 19 | 50±5 | PGA-803、JBL-3 |
Here are the key features:

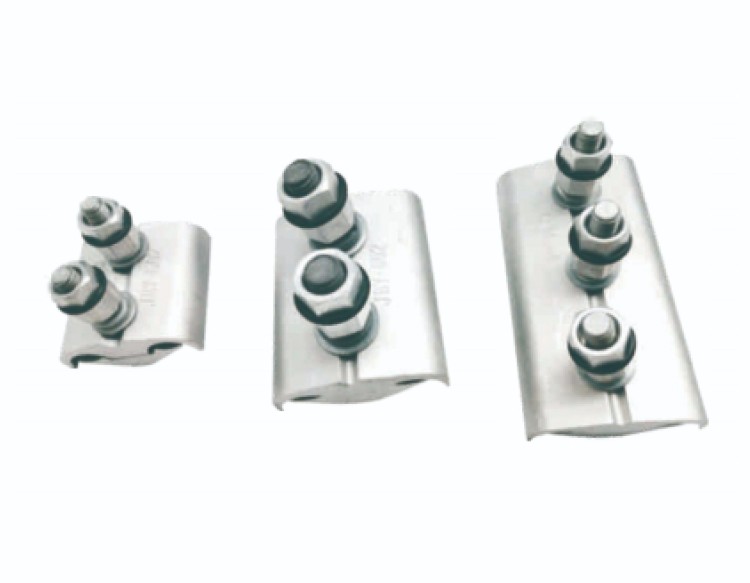

1.Material: The clamp body and insulation shell are integrally molded using aluminium alloy or copper-aluminium construction.
2.Installation Convenience: The integral injection molding process makes installation more convenient.
3.Application: Suitable for non-bearing connections and branching of overhead insulated lines.
4.Power Frequency Withstand Voltage: Withstands 18kV without breakdown.
5.Temperature Range: Operates in temperatures from -30°C to 90°C.
6.Specific Resistance: Greater than 1.0×10^12 Ω·cm.
7.Weather Fastness: Remains high-performing after 1008 hours of artificial weathering aging testing.
These clamps serve as an ideal substitute for traditional parallel trench clamps and insulation covers.
