| Modle | Conductor size mm2(Max) | Suitable for clamp |
| SM1-1 | 16-150 | CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM1-2 | 35-240 | CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM2-1 | 16-120 | CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM2-2 | 35-240 | CAPG,APG,ALPG,CUPG,PGS,PGT,SM,JBL,JBTL,JBT |
| SM3-1 | 16-150 | CAPG,APG,CUPG |
| SM3-2 | 35-200 | CAPG,APG,CUPG |
Here are the key features:

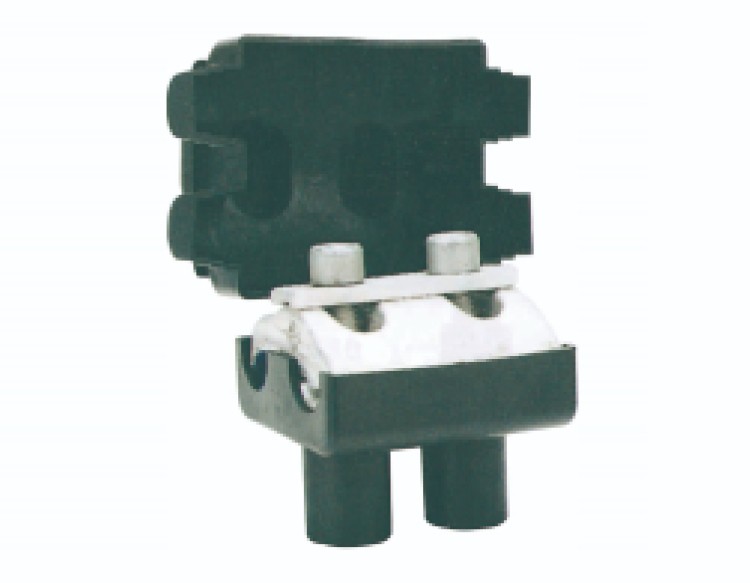

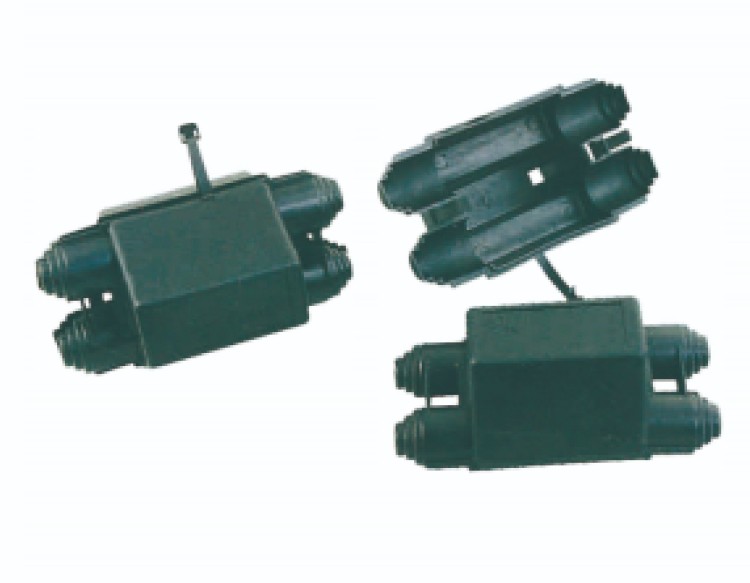

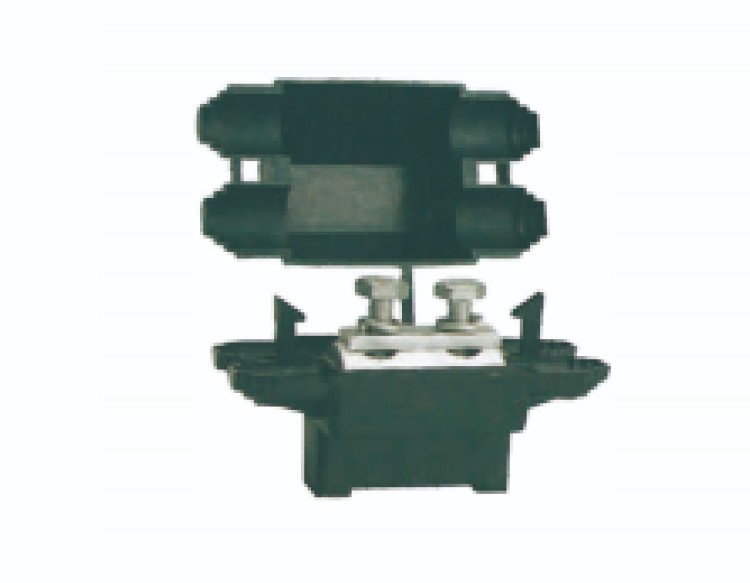

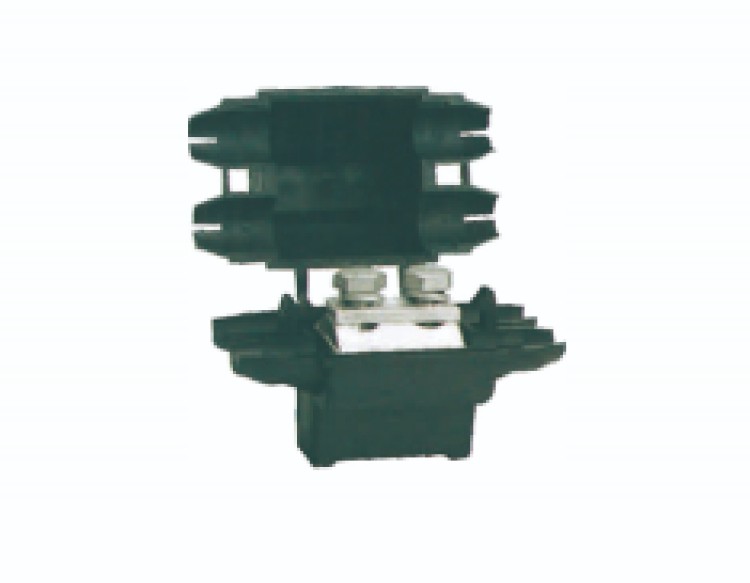

1.Design: These clamps consist of two parts—an upper body and a lower body. The span clamp body and the insulation shell are integrally molded, making installation more convenient.
2.Application: They are suitable for non-bearing connections and branching of overhead insulated lines up to 10kV.
3.Material:
1)Clamp Body: Made from high-strength aluminum alloy.
2)Insulation Shell: Provides additional protection and prevents accidental contact with conductors.
4.Function:
1)Derivation: Use these clamps to create secondary connections from one conductor to another.
2)Loop Closure: Close a loop of a single conductor to fit it on an insulator.
