| Modle | Conductor Cross-section(mm2) | Bolts |

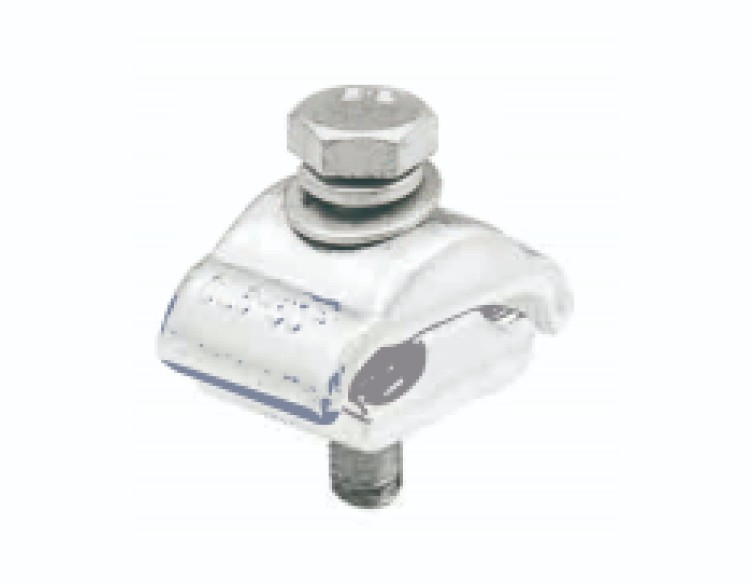

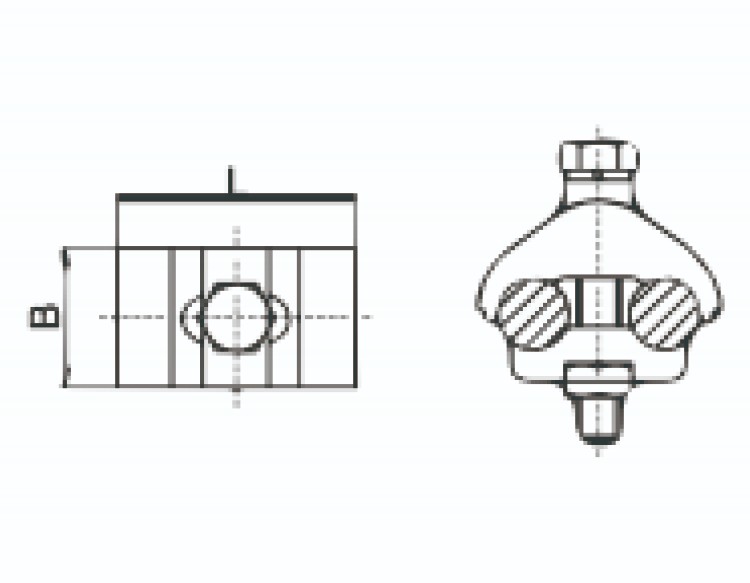

| CAPG-A1 | Cu 6-50 Al 16-70 | 1 ×M8×40 |
| CAPG-A2 | Cu 10-95 Al 25-150 | 1×M8×45 |

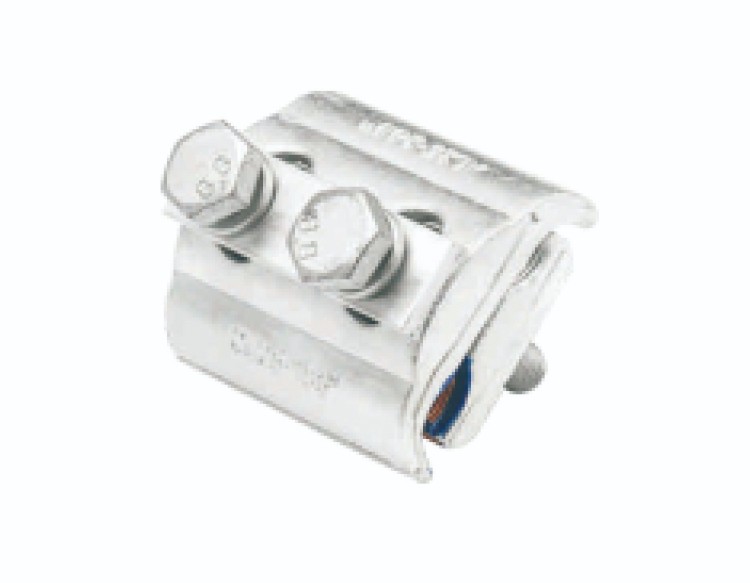

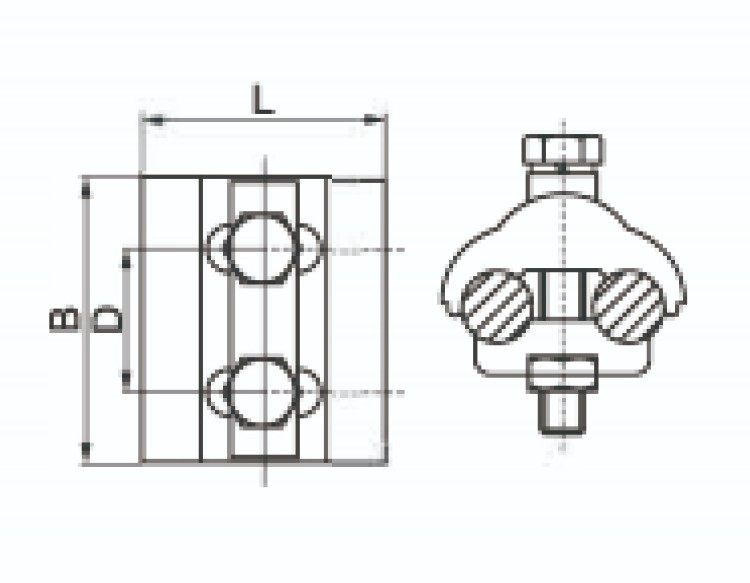

| CAPG-B1 | Cu 6-50 Al 16-70 | 2×M8×45 |
| CAPG-B2 | Cu 10-95 Al 25-150 | 2×M8×50 |
| CAPG-B3 | Cu 25-185 Al 35-200 | 2×M10×60 |

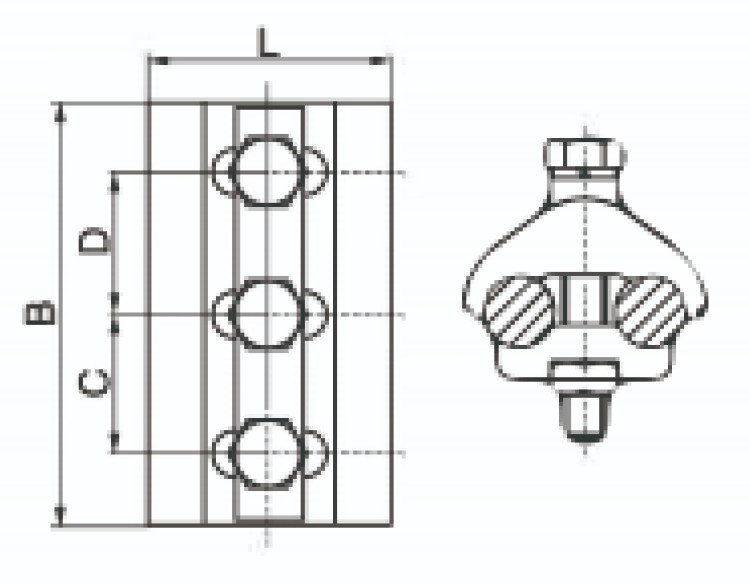

| CAPG-C1 | Cu 6-50 Al 16-70 | 3×M8×45 |
| CAPG-C2 | Cu 10-95 Al 25-150 | 3×M8×50 |
| CAPG-C3 | Cu 25-185 Al 35-240 | 3×M10×60 |
| CAPG-C4 | Cu 35-240 Al 35-300 | 3×M10×70 |
Here are their key features:

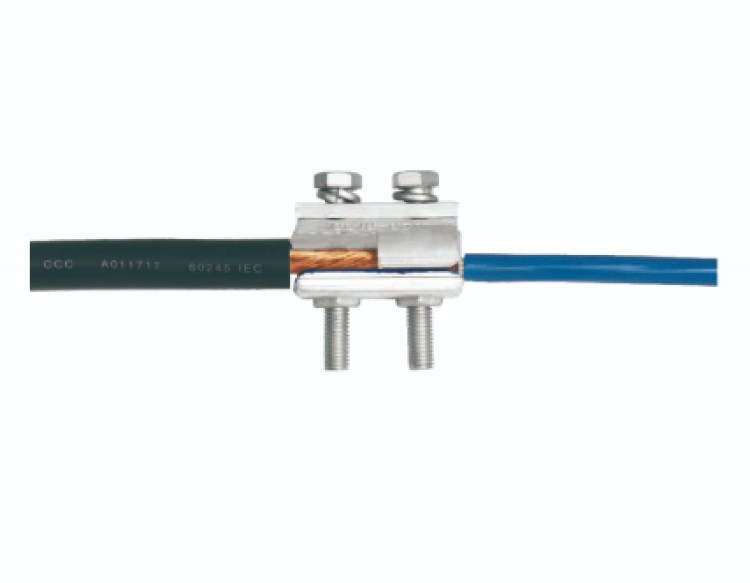

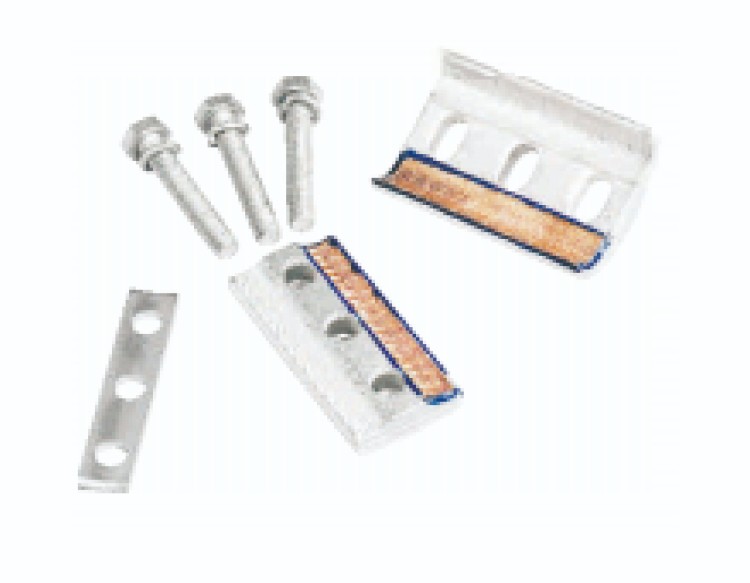

1.Bi-Metal Construction: These clamps have a friction-welded copper insert clearly marked in blue for making copper conductor connections.
2.Serrated Grooves: The clamps feature serrated transverse grooves for maximum conductor contact.
3.Bolted Connection: They use decrement steel bolts for secure connections.
4.Belleville Washers: These washers prevent thermal ratcheting under cyclic loads.
