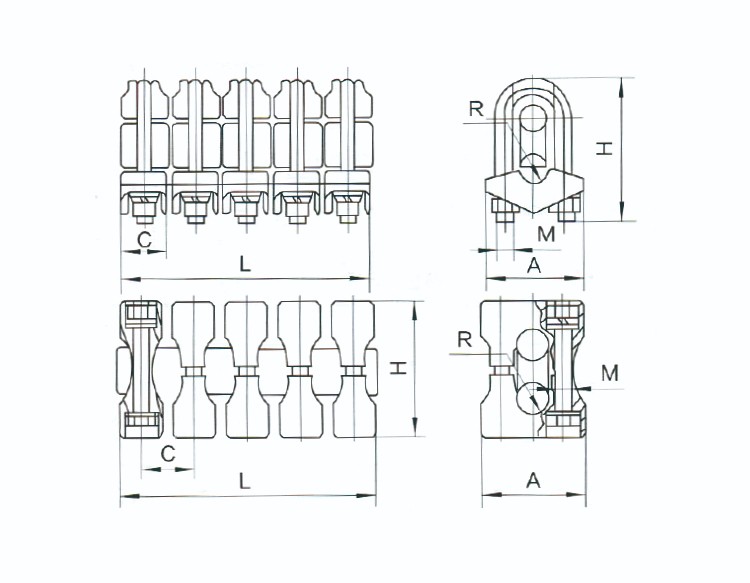

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Bolt No. | |||||
| L | A | H | R | C | L1 | |||
| JB-400N | NAHLGJQ-400 | 250 | 96 | 125 | 14 | 58 | 46 | 3.8 |
| JB-1440N | NAHLGJQ-1440 | 280 | 144 | 170 | 26 | 92 | 76 | 4.3 |
1.Conductor Compatibility: Designed to connect two parallel bare conductors, whether they are aluminum alloy or aluminum steel reinforced (ACSR).
2.Non-Bearing Connection: Used for non-bearing connections and offset of aluminum stranded wires.
3.Insulation Option: Can be used with insulating covers for protective and insulation effects.
4.Dual-Rated: These clamps are dual-rated for use on aluminum, ACSR, and copper conductors.
5.Oxide Inhibitor Option: Available prefilled with oxide inhibitor to prevent oxidation in copper-to-aluminum connections.
