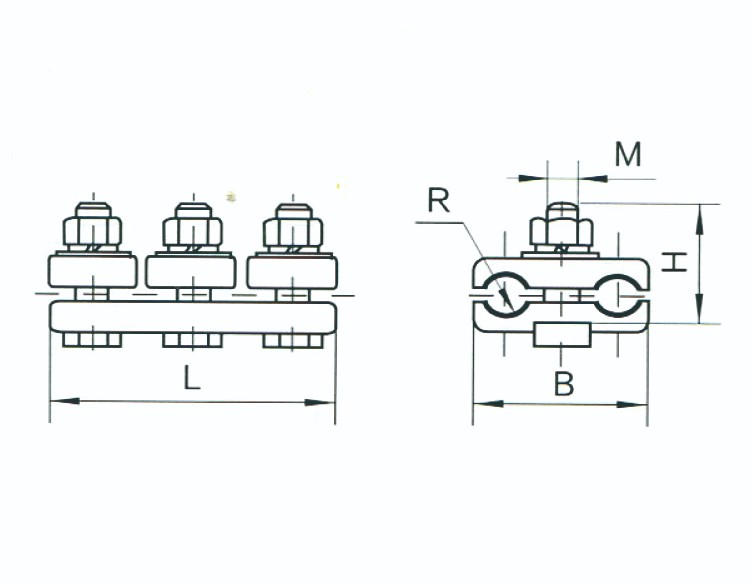

| Cataiog No. | Suitable Conductor diameter | Main dimensions(mm) | Bolt No. | |||
| L | B | R | M | |||
| JBG-1 | 6.6~7.8 | 90 | 44 | 4.5 | 12 | 2 |
| JBG-2 | 7.8~11 | 90 | 50 | 6 | 16 | 2 |
| JBG-3 | 13~14 | 124 | 56 | 7 | 16 | 2 |
| JBG-4 | 14.5~20 | 138 | 70 | 10 | 16 | 3 |
1.Material: Made from high-strength aluminum alloy or electrolytic copper.
2.Corrosion Resistance: Protected by UV-proof varnish to prevent corrosion.
3.Uniform Pressure: Pressure pad and spring washers maintain uniform pressure even with temperature changes.
4.Electrical Contact: Ensures excellent electrical contact without corrosion.
5.Mechanical Strength: Improves mechanical pull-out strength for secure connections.
