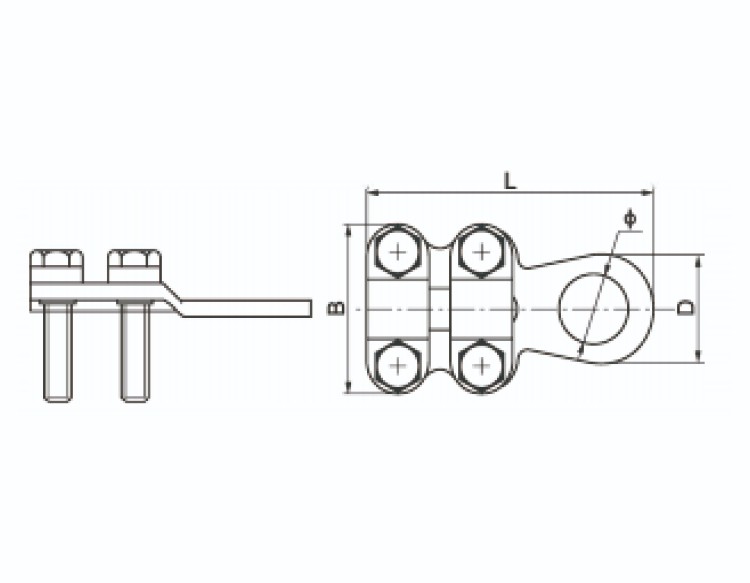

| Catalog No. | Dimensions(mm) | |||
| L | d | B | Ф | |
| WCJB6-10-6 | 31 | 15 | 18.5 | 6.5 |
| WCJB16-25-8 | 46 | 18.5 | 24 | 85 |
| WCJB25-35-10 | 53 | 215 | 24 | 10.5 |
| WCJB50-70-10 | 63 | 235 | 31 | 105 |
| WCJB70-95-12 | 69 | 24 | 34 | 13 |
| WCJB120-150-12 | 76 | 30 | 42 | 13 |
| WCJB120-150-16 | 76 | 30 | 42 | 17 |
| WCJB185-240-16 | 85.5 | 34 | 48.5 | 17 |
| WCJB185-240-20 | 88.5 | 36 | 485 | 21 |
| WCJB240-300-20 | 87 | 345 | 50.5 | 21 |
1.Features:
1)Material: CU ≥ 99.9%, AL ≥ 99.5%
2)Suitable for indoor distributing devices
3)T2 red copper material with nickel plating surface for enhanced durability
It ensures a tight and safe connection between the cable and electrical appliances.
