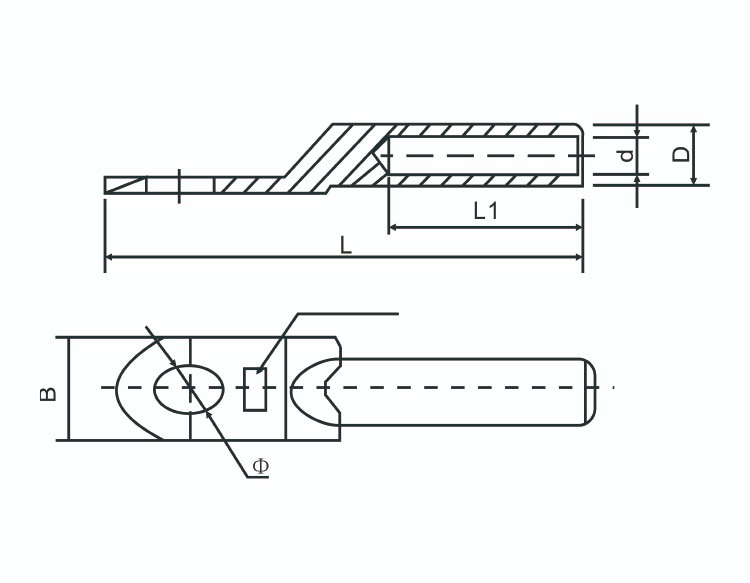

| Catalog No. | B | S | L | Ф | L1 | D | d |
| 10-8 | 16 | 2.2 | 63 | 1.8 | 32 | 9 | 5.2 |
| 16-8 | 16 | 2.2 | 66.2 | 1.8 | 33.4 | 10 | 6.2 |
| 25-8 | 18 | 2.6 | 72 | 1.8 | 33.4 | 11.2 | 7 |
| 35-10 | 20 | 2.6 | 75.8 | 1.8 | 39 | 12.2 | 8.2 |
| 50-10 | 23 | 3.4 | 86.2 | 2 | 42 | 14 | 9.8 |
| 70-12 | 26 | 4 | 93 | 2 | 45 | 16.2 | 11.4 |
| 95-12 | 28 | 4 | 103 | 2 | 48 | 18 | 13.8 |
| 120-14 | 30 | 4.6 | 110.4 | 2.2 | 50.2 | 20 | 14.8 |
| 150-14 | 34 | 5.2 | 117.2 | 2.2 | 52.2 | 22 | 17.2 |
| 185-16 | 37 | 5.8 | 124 | 2.2 | 57.4 | 24 | 19 |
| 240-16 | 40 | 6.4 | 135 | 3 | 63 | 27 | 20.8 |
| 300-21 | 50 | 7 | 150 | 3.2 | 67 | 30 | 23 |
| 400-21 | 50 | 7.6 | 158 | 3.8 | 68 | 34 | 26.5 |
| 500-21 | 54.2 | 7.9 | 166 | 4.5 | 74 | 38 | 29 |
| 630-21 | 59.8 | 9.8 | 203 | 5 | 78.6 | 45 | 34.2 |
| Catalog No. | B | S | L | d | L1 |
| 10-8 | 16 | 2.8 | 64.8 | 7 | 30.9 |
| 16-8 | 16 | 3 | 70 | 7.6 | 33 |
| 25-8 | 18 | 3.1 | 76 | 8 | 36 |
| 35-10 | 20.6 | 3.1 | 84 | 9 | 44 |
| 50-10 | 23.2 | 4.4 | 90 | 9.8 | 44 |
| 70-12 | 25.6 | 4.4 | 104 | 12 | 48 |
| 95-12 | 27.6 | 4.9 | 108 | 13.8 | 53 |
| 120-14 | 30.2 | 5.4 | 118 | 15.2 | 50.8 |
| 150-14 | 34.4 | 5.8 | 125 | 16.8 | 58.8 |
| 185-16 | 37.4 | 5.8 | 129 | 62 | |
| 240-16 | 40.4 | 7 | 137.9 | 20.8 | 68 |
| 300 | 50 | 8.1 | 159 | 23.5 | 73 |
| 400 | 50 | 8.2 | 158 | 26.3 | 75.2 |
The Aluminum Nose DL offers several advantages:
1.High electrical conductivity: Ensures efficient power transmission.
2.Low resistance: Reduces energy loss.
3.Good corrosion resistance: Enhances durability and longevity.
4.Lightweight: Eases handling and installation.
5.High reliability: The design ensures stable and safe connections.
