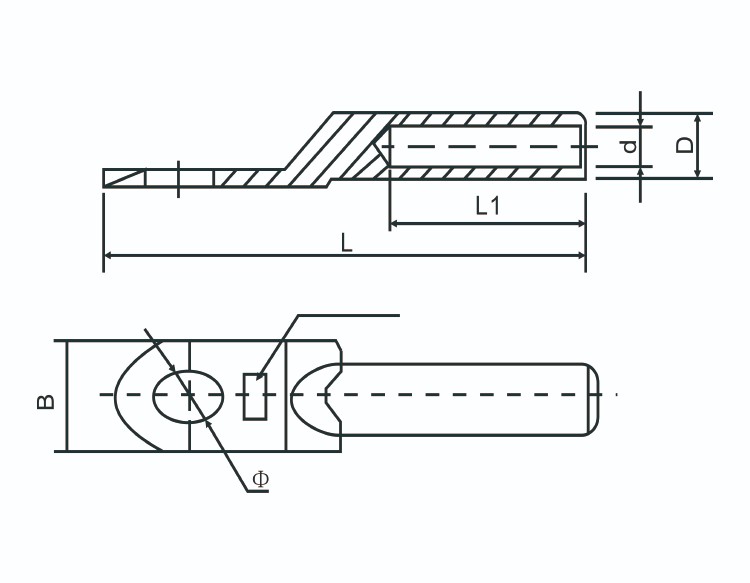

| Catalog No. | B | S | L | L1 | d | D |
| 10-8 | 14 | 1.8 | 60 | 27 | 5.2 | 6 |
| 16-8 | 16 | 2.2 | 65.2 | 27 | 6.2 | 7 |
| 25-8 | 16 | 2.2 | 69 | 32 | 7.2 | 8 |
| 35-10 | 18 | 2.4 | 76.8 | 38 | 8 | 9 |
| 50-10 | 20 | 3.2 | 83.2 | 39 | 9.6 | 10 |
| 70-12 | 23 | 3.2 | 90.8 | 42.6 | 11.8 | 13 |
| 95-12 | 26 | 3.8 | 98 | 42 | 13.8 | 15 |
| 120-14 | 28 | 4.4 | 106.2 | 48.8 | 15.4 | 16.5 |
| 150-14 | 30 | 5 | 114 | 51 | 17 | 18 |
| 185-16 | 34 | 5.6 | 121 | 55.6 | 18.4 | 20 |
| 240-16 | 37 | 5.6 | 128 | 55.8 | 20.8 | 22.3 |
| 300-21 | 45 | 6.8 | 155.6 | 62.2 | 23.2 | 25 |
| 400 |
| Catalog No. | B | S | L | Φ | L1 | D | d |
| 10-8 | 13 | 1.5 | 56.2 | 1.2 | 27 | 8 | 6 |
| 16-8 | 15 | 2 | 60 | 1.2 | 30 | 9 | 6.2 |
| 25-8 | 16 | 2 | 63.6 | 1.2 | 31.8 | 10 | 7 |
| 35-10 | 18 | 2.3 | 68.9 | 1.8 | 35 | 11.2 | 8.2 |
| 50-10 | 20 | 2.8 | 74.9 | 1.8 | 36 | 12.9 | 9.8 |
| 70-12 | 23 | 2.8 | 85.8 | 1.8 | 42 | 14.9 | 11.9 |
| 95-12 | 26 | 3.2 | 93.6 | 1.8 | 45.6 | 17 | 13.2 |
| 120-14 | 28 | 3.2 | 98 | 1.8 | 47 | 19.2 | 15.2 |
| 150-14 | 30 | 4 | 104.2 | 1.8 | 49 | 21 | 16.9 |
| 185-16 | 34 | 4 | 114.2 | 1.8 | 53.2 | 23 | 18.8 |
| 240-16 | 36 | 5 | 117.8 | 2.8 | 52 | 26 | 21.2 |
| 300-21 | 45 | 6 | 148 | 3 | 67 | 29 | 23 |
| 400 | 50 | 7.6 | 156 | 3.8 | 68 | 34 | 26.5 |
| 6-6 | 8.8 | 1.2 | 37 | 0.9 | 6 | 4.2 |
1.Features
1)Lightweight: Aluminum is known for being light, which makes handling and installation easier.
2)Good electrical conductivity: Aluminum is used in various electrical connections due to its ability to conduct electricity efficiently.
3)They are typically used for low-voltage electrical connections due to these properties.
For high-voltage or high-current connections, copper joints are preferred due to better electrical conductivity. Copper-aluminum joints combine the advantages of both materials.
