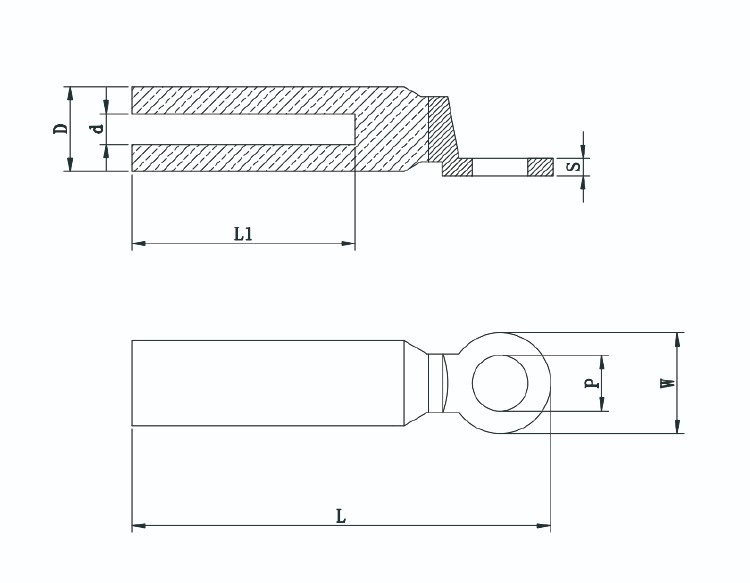

| TypeA(mm) | P±0.3 | D±0.5 | d±0.3 | L±3 | L1±0.3 | W±0.5 | S±0.3 |
| DTL-2-16-11 | Ф11 | Ф16 | Ф6 | 80 | 40 | Ф20 | 3 |
| DTL-2-25-11 | Ф11 | Ф16 | Ф7 | 80 | 40 | Ф20 | 3 |
| DTL-2-35-11 | Ф11 | Ф16 | Ф8.5 | 80 | 40 | Ф20 | 3 |
| DTL-2-50-13 | Ф13 | Ф20 | Ф10 | 90 | 43 | Ф25 | 4.5 |
| DTL-2-70-13 | Ф13 | Ф20 | Φ11.5 | 90 | 43 | Ф25 | 4.5 |
| DTL-2-95-13 | Ф13 | Ф20 | Φ13.5 | 90 | 43 | Ф25 | 4.5 |
| DTL-2-120-13 | Ф13 | Ф25 | Ф15 | 115 | 59 | Ф30 | 5.5 |
| DTL-2-150-13 | Ф13 | Ф25 | Ф16.5 | 115 | 59 | Ф30 | 5.5 |
| DTL-2-185-13 | Ф13 | Ф32 | Φ18.5 | 122 | 60 | Ф35 | 6 |
| DTL-2-240-13 | Ф13 | Ф32 | Ф21 | 122 | 60 | Ф35 | 6 |
| DTL-2-300-13 | Ф13 | Ф34 | Φ23.5 | 128 | 65 | Ф35 | 6 |
| DTL-2-400-17 | Ф17 | Ф40 | Ф26 | 160 | 90 | Ф36 | 6 |
| DTL-2-500-17 | Round head Ф17 | Ф40 | Ф30 | 160 | 95 | Ф36 | 6 |
| DTL-2-500 | Square head | Ф47 | Ф30 | 205 | 95 | 60*60 | 8 |
| DTL-2-630-17 | Round head | Ф47 | Φ33.5 | 205 | 95 | 60 | 8 |
| DTL-2-630 | Square head | Ф47 | Φ33.5 | 205 | 95 | 60*60 | 8 |
| DTL-2-800 | Round head | Ф60 | Φ38.5 | 240 | 110 | 80 | 9 |
| DTL-2-800 | Square head | Ф60 | Φ38.5 | 240 | 110 | 80*80 | 9 |
| DTL-2-1000 | Round head | Ф60 | Ф43.5 | 240 | 110 | 80 | 9 |
| DTL-2-1000 | Square head | Ф60 | Ф43.5 | 240 | 110 | 80 | 9 |
1.These clamps are designed to connect two parallel conductors for creating derivations or closing loops.
2.Features:
1)They are used for the transition connection of aluminum, aluminum alloy conductor cables, and copper electrical equipment side.
2)They utilize friction welding technology.
3)They have an aluminum blocking oil structure filled with conductive paste to prevent galvanic corrosion and ensure a long service life.
