| Catalog No. | Dimensions(mm) | |||

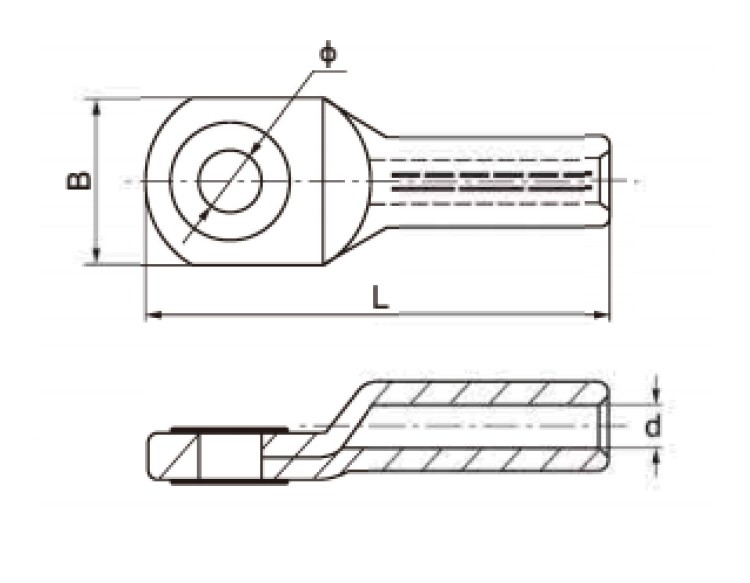

| L | d | B | Φ | |
| ATL10-6 | 63 | 5 | 18 | 6.5 |
| ATL10-8 | 63 | 5 | 22 | 8.5 |
| ATL 16-8 | 63 | 5.8 | 22 | 8.5 |
| ATL16-10 | 65 | 5.8 | 25 | 10.5 |
| ATL25-8 | 71 | 6.8 | 22 | 8.5 |
| ATL25-10 | 73 | 6.8 | 25 | 10.5 |
| ATL25-12 | 73 | 6.8 | 27.5 | 13 |
| ATL35-8 | 79 | 8 | 22 | 8.5 |
| ATL35-10 | 80 | 8 | 26 | 10.5 |
| ATL35-12 | 82.5 | 8 | 30 | 13 |
| ATL50-8 | 84.5 | 9.8 | 25 | 8.5 |
| ATL50-10 | 86 | 9.8 | 27 | 10.5 |
| ATL50-12 | 87.5 | 9.8 | 30 | 13 |
| ATL 70-8 | 98.5 | 11.2 | 28 | 8.5 |
| ATL70-10 | 100 | 11.2 | 29 | 10.5 |
| ATL70-12 | 102.5 | 11.2 | 32 | 13 |
| ATL95-10 | 106.5 | 13.2 | 32 | 10.5 |
| ATL95-12 | 106.5 | 13.2 | 35 | 13 |
| ATL95-16 | 108.5 | 13.2 | 38 | 17 |
| ATL120-10 | 107.5 | 14.7 | 34 | 10.5 |
| ATL120-12 | 107.5 | 14.7 | 35 | 13 |
| ATL120-16 | 109.5 | 14.7 | 38 | 17 |
| ATL150-10 | 119 | 16.3 | 35 | 10.5 |
| ATL150-12 | 119 | 16.3 | 35 | 13 |
| ATL150-16 | 121.5 | 16.3 | 41 | 17 |
| ATL150-20 | 123 | 16.3 | 44 | 21 |
| ATL185-12 | 123.5 | 18.3 | 40 | 13 |
| ATL185-16 | 124.5 | 18.3 | 42 | 17 |
| ATL185-20 | 126 | 18.3 | 46 | 21 |
| ATL240-12 | 136 | 21 | 45 | 13 |
| ATL240-16 | 136 | 21 | 45 | 17 |
| ATL240-20 | 136 | 21 | 49 | 21 |
| ATL300-16 | 144 | 23.3 | 51 | 17 |
| ATL300-20 | 145 | 23.3 | 51 | 21 |
| ATL400-16 | 187 | 26 | 58 | 17 |
| ATL400-20 | 187 | 26 | 58 | 21 |

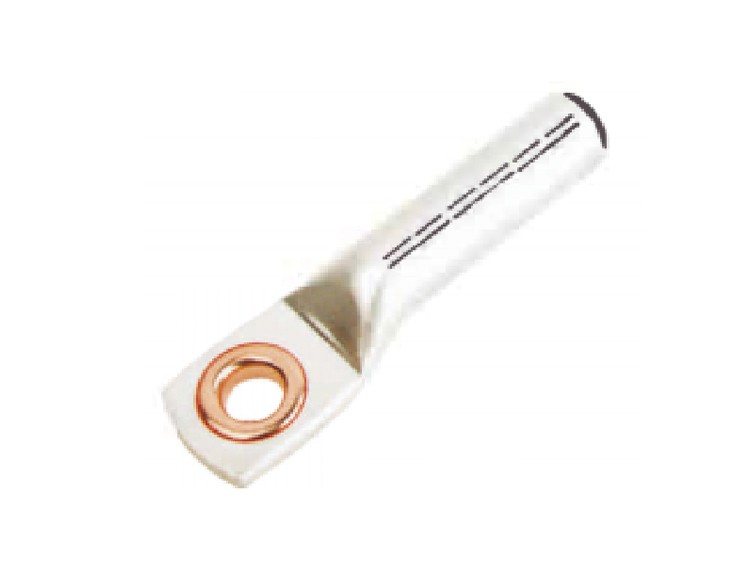

1.It's made using friction welding technology, ensuring high weld strength, good electrical performance, and resistance to electrochemical corrosion.
2.These lugs are designed to connect aluminum cables to copper busbars or contacts and are filled with jointing compound to prevent oxidation.
3.The advantages of using Bimetal Lug-ATL include:
1)High weld strength: Ensures a durable connection.
2)Good electrical performance: Provides reliable conductivity.
3)Electrochemical corrosion resistance: Increases longevity in various environments.
4)Prevents oxidation: The jointing compound in the lug prevents oxidation of the aluminum conductor.
5)Compatibility: Allows for the connection of aluminum cables to copper busbars or contacts, which is common in electrical installations .
These features make it a strong and safe choice for electrical connections.
