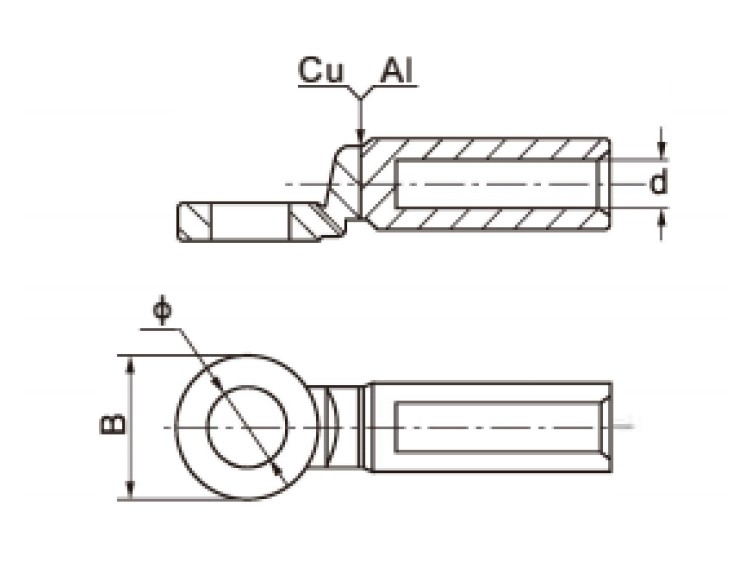

| Catalog No. | Dimensions(mm) | ||
| d | B | Φ | |
| CAL-16BS-10 | 5.6 | 20 | 10.5 |
| CAL-25BS-10 | 6.5 | 20 | 10.5 |
| CAL-35BS-10 | 8.5 | 20 | 10.5 |
| CAL-50BS-12 | 9.5 | 24 | 12.8 |
| CAL-70BS-12 | 11 | 24 | 12.8 |
| CAL-95BS-12 | 12.5 | 24 | 12.8 |
| CAL-120BS-12 | 13.7 | 30 | 12.8 |
| CAL-150BS-12 | 15.5 | 30 | 12.8 |
| CAL-185BS-12 | 17 | 35 | 12.8 |
| CAL-240BS-12 | 19.5 | 35 | 12.8 |
| CAL-300BS-16 | 23.3 | 36 | 16.5 |
| CAL-400BS-16 | 26 | 36 | 16.5 |
| CAL-500BS-16 | 29 | 60 | 17 |
| CAL-630BS-16 | 32.5 | 60 | 17 |

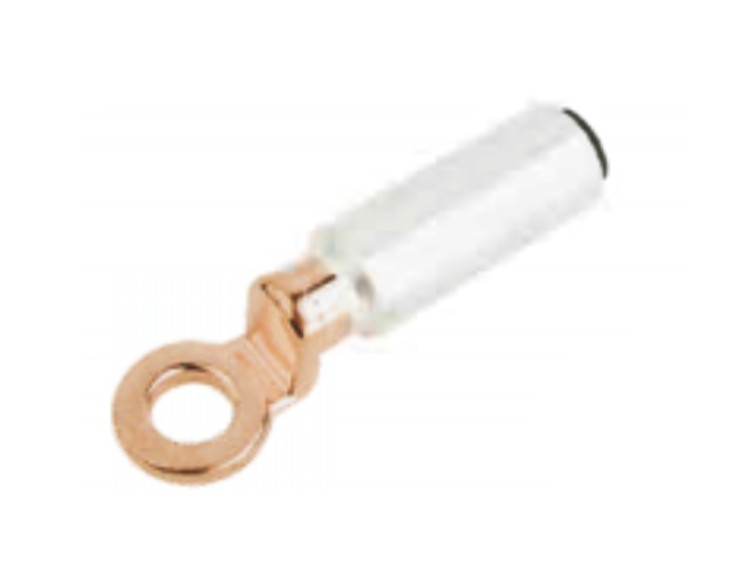

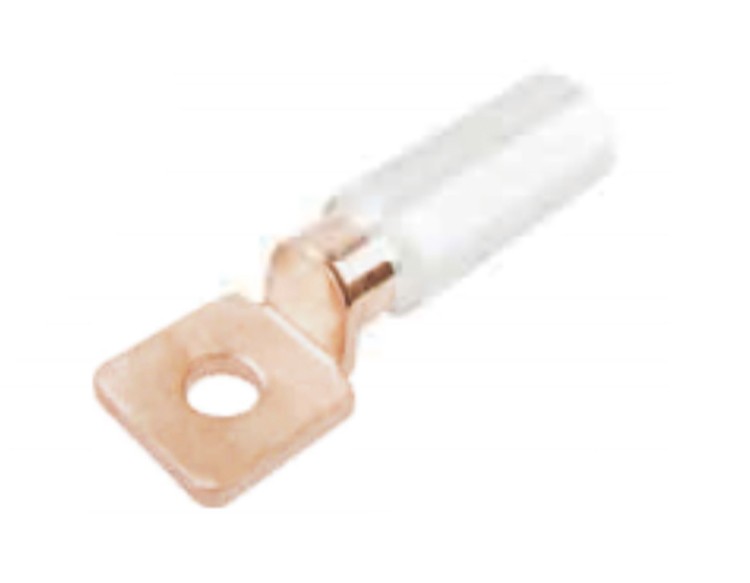

Its features include:
1.Material composition with aluminum (Al) content of at least 99.5% and copper (Cu) content of at least 99.9%.
2.An oil-blocking structure to prevent leakage.
3.Friction welding for a secure joint.
4.Clear markings on the barrel to indicate the correct crimping location.
5.It is available for cable sizes ranging from 10 to 1000 mm².
