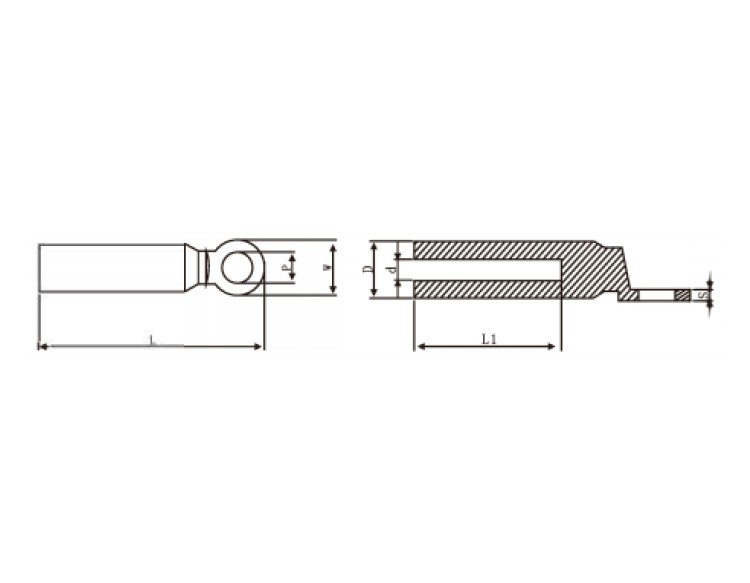

| Catalog No. | Dimensions(mm) | ||||||
| P±0.3 | P±0.3 | P±0.3 | P±0.3 | P±0.3 | P±0.3 | P±0.3 | |
| DTL-2-16-11 | Φ11 | Φ16 | Φ6 | 80 | 40 | Φ20 | 3 |
| DTL-2-25-11 | Φ11 | Φ16 | Φ7 | 80 | 40 | Φ20 | 3 |
| DTL-2-35-11 | Φ11 | Φ16 | Φ8.5 | 80 | 40 | Φ20 | 3 |
| DTL-2-50-13 | Φ13 | Φ20 | Φ10 | 90 | 43 | Φ25 | 4.5 |
| DTL-2-70-13 | Φ13 | Φ20 | Φ11.5 | 90 | 43 | Φ25 | 4.5 |
| DTL-2-95-13 | Φ13 | Φ20 | Φ13.5 | 90 | 43 | Φ25 | 4.5 |
| DTL-2-120-13 | Φ13 | Φ25 | Φ15 | 115 | 59 | Φ30 | 5.5 |
| DTL-2-150-13 | Φ13 | Φ25 | Φ16.5 | 115 | 59 | Φ30 | 5.5 |
| DTL-2-185-13 | Φ13 | Φ32 | Φ18.5 | 122 | 60 | Φ30 | 6 |
| DTL-2-240-13 | Φ13 | Φ32 | Φ21 | 122 | 60 | Φ35 | 6 |
| DTL-2-300-13 | Φ13 | Φ34 | Φ23.5 | 128 | 65 | Φ35 | 6 |
| DTL-2-400-17 | Φ17 | Φ40 | Φ26 | 160 | 90 | Φ36 | 6 |
| DTL-2-500-17 | Φ17 | Φ40 | Φ30 | 160 | 95 | Φ36 | 6 |
| DTL-2-630-17 | Φ17 | Φ47 | Φ33.5 | 205 | 95 | Φ60 | 10 |
| DTL-2-800 | Φ17 | Φ60 | Φ38.5 | 240 | 110 | Φ80 | 10 |
| DTL-2-1000 | Φ17 | Φ60 | Φ43.5 | 240 | 110 | Φ80 | 10 |

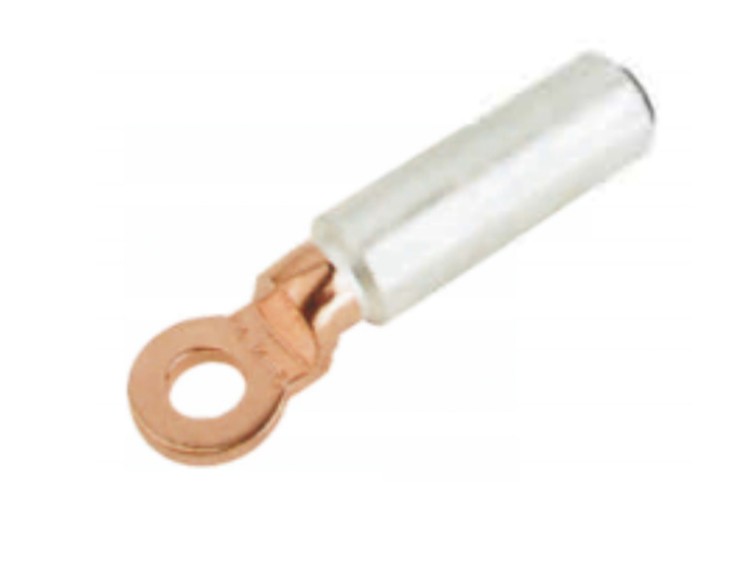

With the following features:
1.Aluminium barrel filled with neutral grease and covered by a cap to prevent corrosion.
2.Friction welded for a strong, reliable joint.
3.Made of high purity materials: copper (Cu) content of at least 99.9% and aluminum (Al) content of at least 99.5%.
4.Available in various sizes, typically from 16 Sqmm to 1000 Sqmm.
5.It can also be customized with 2 or 3 holes and tinned on the copper palm or aluminum barrel for specific applications.
