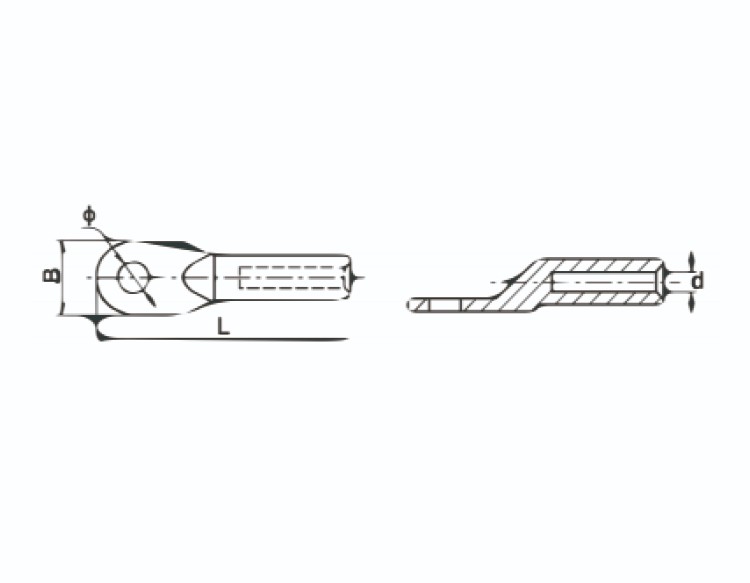

| Catalog No. | Dimensions(mm) | |||
| L | d | B | Φ | |
| DL16-6 | 70 | 5.8 | 16 | 6.5 |
| DL16-8 | 70 | 5.8 | 16 | 8.5 |
| DL25-8 | 75 | 7.2 | 17.5 | 8.5 |
| DL35-8 | 85 | 8.5 | 20 | 8.5 |
| DL35-10 | 85 | 8.5 | 20 | 10.5 |
| DL50-10 | 90 | 9.7 | 23 | 10.5 |
| DL70-12 | 100 | 11.5 | 26 | 12.5 |
| DL95-12 | 110 | 13.5 | 28 | 12.5 |
| DL120-14 | 120 | 15 | 31 | 14.5 |
| DL150-14 | 125 | 16.5 | 35 | 14.5 |
| DL150-16 | 125 | 16.5 | 35 | 17 |
| DL185-16 | 133 | 18.5 | 37.5 | 17 |
| DL240-16 | 140 | 21 | 40 | 17 |
| DL300-18 | 160 | 23.5 | 44.5 | 18.5 |
| DL300-20 | 160 | 23.5 | 44.5 | 21 |

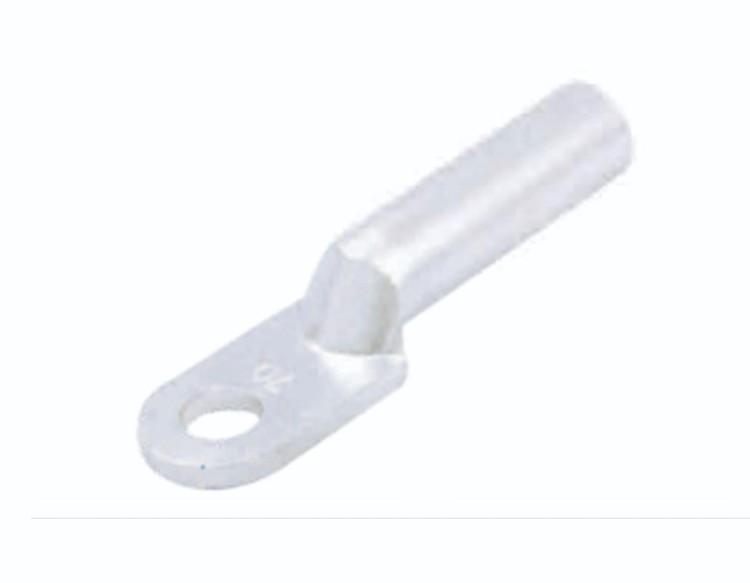

Key features of Cable Lug-DL(AL) typically include:
1.Material: Made of aluminum or bi-metallic materials suitable for electrical systems.
2.Secure connection: Designed to ensure a reliable and strong connection between cables and equipment.
3.Optimal electrical flow: Facilitates efficient energy transfer, preventing short circuits or fires.
4.Versatility: Can be used in various applications such as power distribution, renewable energy systems, and more.
