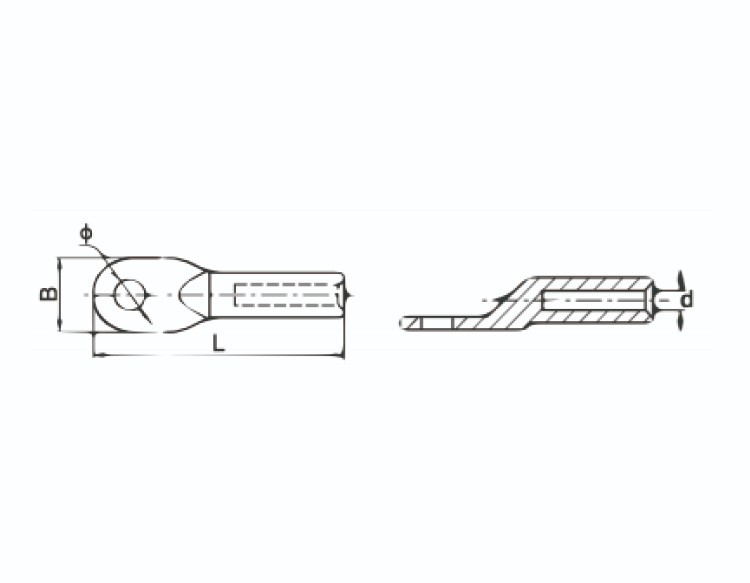

| Catalog No. | Dimensions(mm) | |||
| L | d | B | Φ | |
| DT10-6 | 59 | 4.7 | 13.5 | 6.5 |
| DT16-8 | 67 | 5.7 | 16 | 8.5 |
| DT25-8 | 70 | 7.2 | 17.5 | 85 |
| DT35-10 | 78 | 8.5 | 20 | 10.5 |
| DT50-10 | 87 | 9.7 | 23 | 10.5 |
| DT70-12 | 95 | 11.5 | 26 | 12.5 |
| DT95-12 | 105 | 13.5 | 28 | 12.5 |
| DT120-14 | 112 | 15 | 31 | 14.5 |
| DT150-14 | 116 | 16.5 | 35 | 14.5 |
| DT185-16 | 125 | 18.5 | 37.5 | 17 |
| DT240-16 | 134 | 21 | 40 | 17 |
| DT300-18 | 150 | 23.5 | 44.5 | 18.5 |
| DT400-20 | 160 | 26.5 | 50 | 21 |

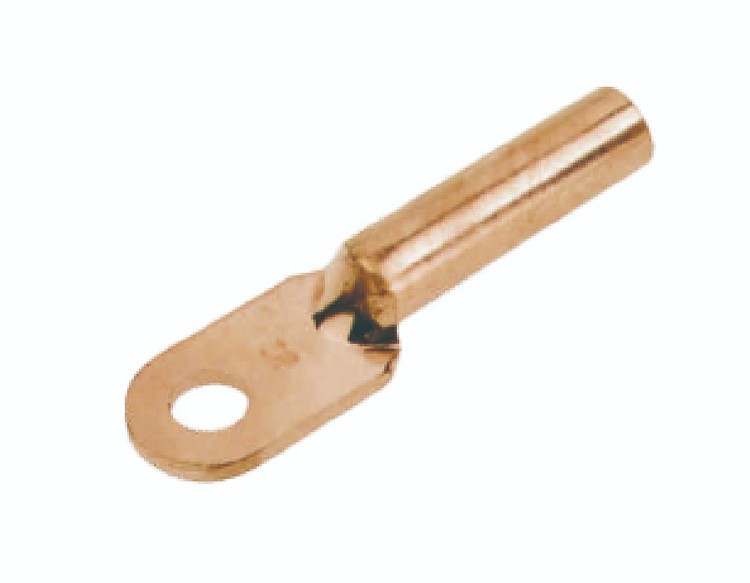

Key features of the Cable Lug-DT(CU) include:
1.High conductivity: Made with ETP copper alloy for optimal electrical flow.
2.Heavy wall design: Ensures durability and longevity.
3.Multiple holes pad: Available with 1, 2, or 4 holes pad for versatility.
4.Seamless design: On single and double hole terminals for a clean connection.
5.Scribe line: Identifies cable strip length and start crimp line for accurate installation.
6.Tin plated/non-plated versions: Offers options for different environmental conditions.
7.Easy installation: Compatible with industry-standard tools and CSA dies.
