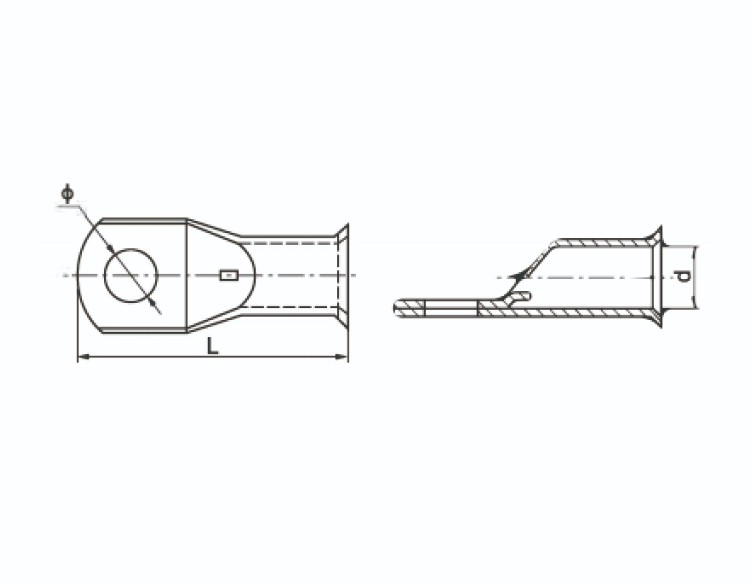

| Catalog No. | Dimensions(mm) | ||
| L | d | Φ | |
| JM(JGB)6-5 | 25 | 3.7 | 5.2 |
| JM(JGB)6-6 | 25 | 3.7 | 6.5 |
| JM(JGB)6-8 | 25 | 3.7 | 8.4 |
| JM(JGB)10-6 | 26 | 4.5 | 6.5 |
| JM(JGB)10-8 | 26 | 4.5 | 8.4 |
| JM(JGB)10-10 | 28 | 4.5 | 10.3 |
| JM(JGB)16-6 | 28.5 | 5.7 | 6.5 |
| JM(JGB)16-8 | 30.5 | 5.7 | 8.4 |
| JM(JGB)16-10 | 31 | 5.7 | 10.5 |
| JM(JGB)25-6 | 33.5 | 7.2 | 6.5 |
| JM(JGB)25-8 | 35 | 7.2 | 8.4 |
| JMUGB)25-10 | 35 | 7.2 | 10.5 |
| JM(JGB)35-6 | 37.5 | 8.5 | 6.5 |
| JM(JGB)35-8 | 38 | 8.5 | 8.5 |
| JM(JGB)35-10 | 39 | 8.5 | 10.5 |
| JM(JGB)35-12 | 39 | 8.5 | 13 |
| JM(JGB)50-6 | 43.5 | 9.8 | 6.5 |
| JM(JGB)50-8 | 45 | 9.8 | 8.5 |
| JM(JGB)50-10 | 45 | 9.8 | 10.5 |
| JM(JGB)50-12 | 45 | 9.8 | 13 |
| JM(JGB)70-8 | 50 | 11.5 | 8.5 |
| JM(JGB)70-10 | 51.5 | 11.5 | 10.5 |
| JM(JGB)70-12 | 51.5 | 11.5 | 13 |
| JM(JGB)95-10 | 58.5 | 13.7 | 10.5 |
| JM(JGB)95-12 | 58.5 | 13.7 | 13 |
| JM(JGB)120-12 | 65 | 15 | 13 |
| JM(JGB)120-14 | 65 | 15 | 14.7 |
| JM(JGB)120-16 | 66.5 | 15 | 17 |
| JM(JGB)150-10 | 73 | 16.7 | 10.5 |
| JM(JGB)150-12 | 73 | 16.7 | 13 |
| JM(JGB)150-14 | 73 | 16.7 | 14.7 |
| JM(JGB)150-16 | 73 | 16.7 | 17 |
| JM(JGB)185-12 | 80 | 19.2 | 13 |
| JM(JGB)185-14 | 80 | 19.2 | 14.7 |
| JM(JGB)185-16 | 80 | 19.2 | 17 |
| JM(JGB)240-16 | 92.5 | 21 | 17 |
| JM(JGB)240-20 | 92.5 | 21 | 21 |
| JM(JGB)300-16 | 24 | ||
| JM(JGB)300-20 | 24 | ||
| JM(JGB)400-16 | 27 | ||
| JM(JGB)400-20 | 27 | ||
| JM(JGB)500-16 | 30 | ||
| JM(JGB)500-20 | 30 | ||
| JM(JGB)630-20 | 35 | ||
| JM(JGB)630-22 | 35 | ||
| JM(JGB)800-22 | 39 | ||
| JM(JGB)1000-22 | 44 | ||

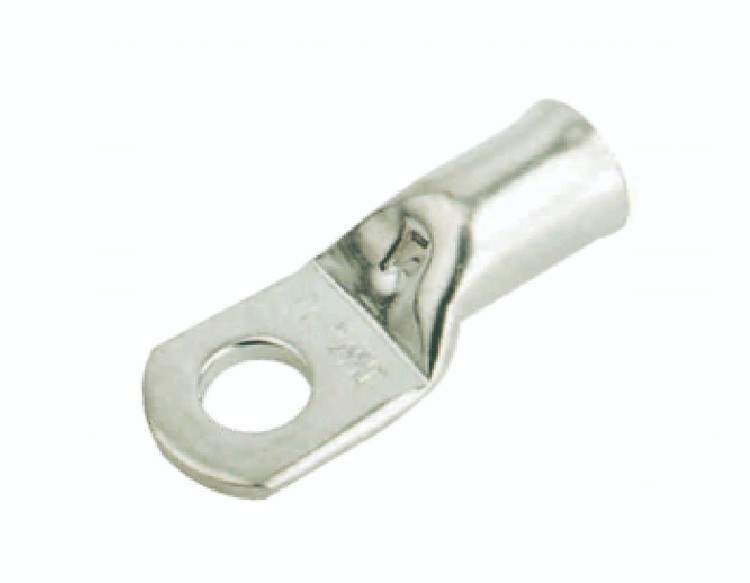

1.The JM (JGB) Copper Cable Lugs are designed to connect copper conductor ends.
2.They are made of E-Cu material and are tin-plated for surface treatment.
3.These lugs feature a viewing window to check the conductor's location and a bell mouth for easy cable installation.
4.They are used for low voltage connections and can accommodate cable sizes from 6 to 500 mm.
