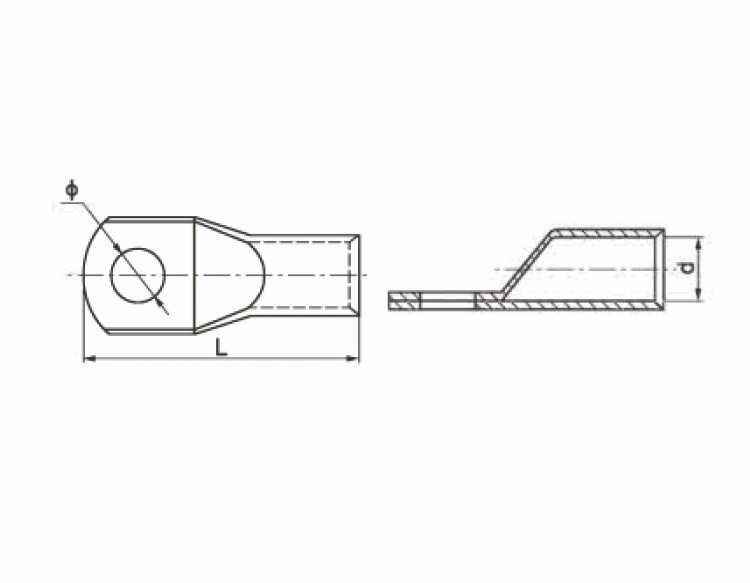

| Catalog No. | Dlmenslons(mm) | ||
| L | d | Φ | |
| JM(JGA)6-5 | 25 | 3.7 | 5.2 |
| JM(JGA)6-6 | 25 | 3.7 | 6.5 |
| JM(JGA)6-8 | 25 | 3.7 | 8.4 |
| JM(JGA)10-5 | 25 | 4.5 | 5.3 |
| JM(JGA)10-6 | 26 | 4.5 | 6.5 |
| JM(JGA)10-8 | 26 | 4.5 | 8.4 |
| JM(JGA)10-10 | 28 | 4.5 | 10.3 |
| JM(JGA)16-6 | 28.5 | 5.7 | 6.5 |
| JM(JGA)16-8 | 30.5 | 5.7 | 8.4 |
| JM(JGA)16-10 | 31 | 5.7 | 10.5 |
| JM(JGA)25-6 | 35 | 7.2 | 6.5 |
| JM(JGA)25-8 | 35 | 7.2 | 8.4 |
| JM(JGA)25-10 | 35 | 7.2 | 10.5 |
| JM(JGA)35-6 | 37.5 | 8.5 | 6.5 |
| JM(JGA)35-8 | 38 | 8.5 | 8.5 |
| JM(JGA)35-10 | 39 | 8.5 | 10.5 |
| JM(JGA)35-12 | 39 | 8.5 | 13 |
| JM(JGA)50-6 | 43.5 | 9.8 | 6.5 |
| JM(JGA)50-8 | 45 | 9.8 | 8.5 |
| JM(JGA)50-10 | 45 | 9.8 | 10.5 |
| JM(JGA)50-12 | 45 | 9.8 | 13 |
| JM(JGA)70-8 | 50 | 11.5 | 8.5 |
| JM(JGA)70-10 | 51.5 | 11.5 | 10.5 |
| JM(JGA)70-12 | 51.5 | 11.5 | 13 |
| JM(JGA)95-8 | 58.5 | 13.7 | 8.5 |
| JM(JGA)95-10 | 58.5 | 13.7 | 10.5 |
| JM(JGA)95-12 | 58.5 | 13.7 | 13 |
| JM(JGA)95-14 | 59 | 13.7 | 15 |
| JM(JGA)120-10 | 63.5 | 15 | 10.5 |
| JM(JGA)120-12 | 65 | 15 | 13 |
| JM(JGA)120-14 | 65 | 15 | 14.7 |
| JM(JGA)120-16 | 66.5 | 15 | 17 |
| JM(JGA)150-10 | 73 | 16.7 | 10.5 |
| JM(JGA)150-12 | 73 | 16.7 | 13 |
| JM(JGA)150-14 | 73 | 16.7 | 14.7 |
| JM(JGA)150-16 | 73 | 16.7 | 17 |
| JM(JGA)185-10 | 80 | 19.2 | 10.5 |
| JM(JGA)185-12 | 80 | 19.2 | 13 |
| JM(JGA)185-14 | 80 | 19.2 | 14.7 |
| JM(JGA)185-16 | 80 | 19.2 | 17 |
| JM(JGA)185-20 | 81.5 | 19.2 | 21 |
| JM(JGA)240-12 | 92.5 | 21 | 13 |
| JM(JGA)240-14 | 92.5 | 21 | 14.7 |
| JM(JGA)240-16 | 92.5 | 21 | 17 |
| JM(JGA)240-20 | 94.5 | 21 | 21 |
| JM(JGA)300-12 | 102 | 24 | 13 |
| JM(JGA)300-14 | 102 | 24 | 14.7 |
| JM(JGA)300-16 | 102 | 24 | 17 |
| JM(JGA)300-20 | 105 | 24 | 21 |
| JM(JGA)400-16 | 114 | 27 | 17 |
| JM(JGA)400-20 | 116 | 27 | 21 |
| JM(JGA)500-16 | 127 | 30 | 17 |
| JM(JGA)500-20 | 127 | 30 | 21 |
| JM(JGA)630-16 | 140 | 35 | 17 |
| JM(JGA)630-20 | 140 | 35 | 21 |
| JM(JGA)630-22 | 140 | 35 | 23 |
| JM(JGA)800-22 | 170 | 39 | 23 |
| JM(JGA)1000-22 | 200 | 44 | 23 |

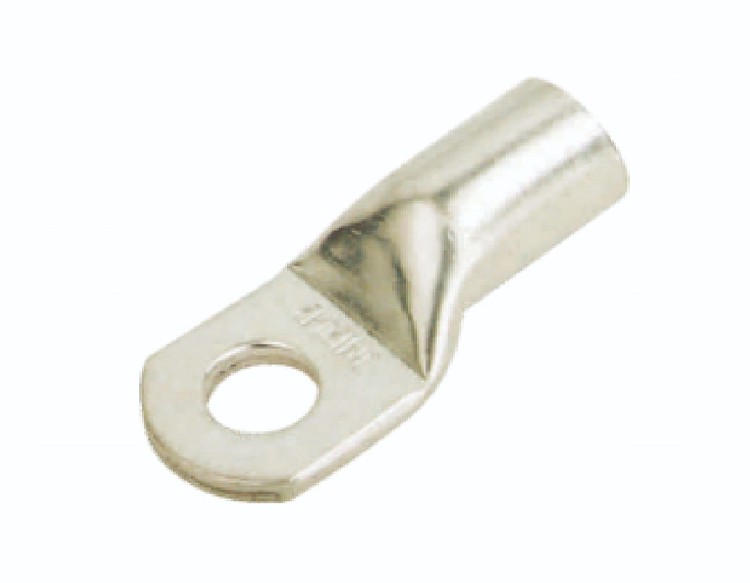

Cable lugs like the JM(JGA) are commonly used in various applications including:
1.Power distribution systems
2.Renewable energy setups like solar or wind power installations
3.Automotive industry for battery cable terminations
4.Marine applications due to their resistance to corrosion
They are essential for connecting cables to device terminals, simplifying assembly, maintenance, and repair processes.
