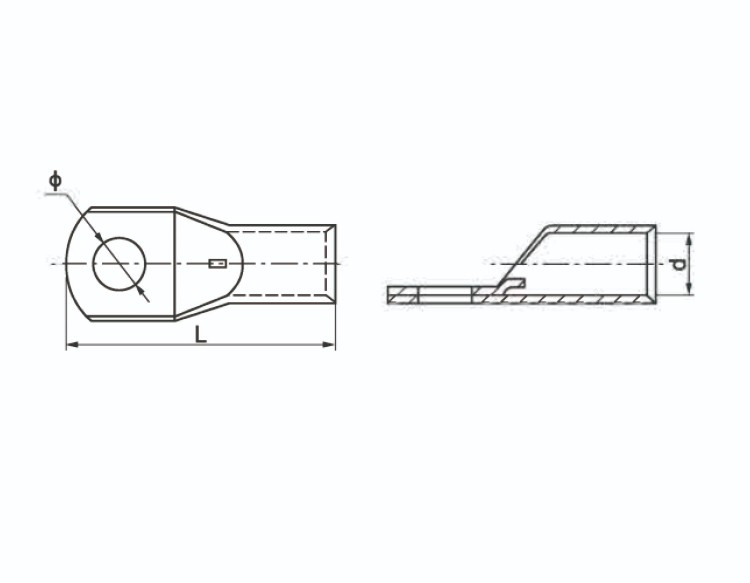

| Catalog No. | Dimensions(mm) | ||
| L | d | Φ | |
| JM(JGY)6-5 | 25 | 3.7 | 5.2 |
| JM(JGY)6-6 | 25 | 3.7 | 6.5 |
| JM(GY)6-8 | 25 | 3.7 | 8.4 |
| JM(JGY)10-5 | 26 | 4.5 | 5.3 |
| JM(JGY)10-6 | 26 | 4.5 | 6.5 |
| JM(JGY)10-8 | 26 | 4.5 | 8.4 |
| JM(JGY)10-10 | 28 | 4.5 | 10.3 |
| JM(JGY)16-6 | 28.5 | 5.7 | 6.5 |
| JM(JGY)16-8 | 30.5 | 5.7 | 8.4 |
| JM(JGY)16-10 | 31 | 5.7 | 10.5 |
| JM(JGY)25-6 | 35 | 7.2 | 6.5 |
| JM(JGY)25-8 | 35 | 7.2 | 8.4 |
| JM(JGY)25-10 | 35 | 7.2 | 10.5 |
| JM(JGY)35-6 | 37.5 | 8.5 | 6.5 |
| JM(JGY)35-8 | 38 | 8.5 | 8.5 |
| JM(JGY)35-10 | 39 | 8.5 | 10.5 |
| JM(JGY)35-12 | 39 | 8.5 | 13 |
| JM(JGY)50-6 | 43.5 | 9.8 | 6.5 |
| JM(JGY)50-8 | 45 | 9.8 | 8.5 |
| JM(JGY)50-10 | 45 | 9.8 | 10.5 |
| JM(JGY)50-12 | 45 | 9.8 | 13 |
| JM(JGY)50-14 | 45 | 9.8 | 14.5 |
| JM(JGY)70-8 | 50 | 11.5 | 8.5 |
| JM(JGY)70-10 | 51.5 | 11.5 | 10.5 |
| JM(JGY)70-12 | 51.5 | 11.5 | 13 |
| JM(JGY)95-8 | 58.5 | 13.7 | 8.5 |
| JM(JGY)95-10 | 58.5 | 13.7 | 10.5 |
| JM(JGY)95-12 | 58.5 | 13.7 | 13 |
| JM(JGY)95-14 | 59 | 13.7 | 15 |
| JM(JGY)120-10 | 63.5 | 15 | 10.5 |
| JM(JGY)120-12 | 65 | 15 | 13 |
| JM(JGY)120-14 | 65 | 15 | 14.7 |
| JM(JGY)120-16 | 66.5 | 15 | 17 |
| JM(JGY)150-10 | 73 | 16.7 | 10.5 |
| JM(JGY)150-12 | 73 | 16.7 | 13 |
| JM(JGY)150-14 | 73 | 16.7 | 14.7 |
| JM(JGY)150-16 | 73 | 16.7 | 17 |
| JM(JGY)185-10 | 80 | 19.2 | 10.5 |
| JM(JGY)185-12 | 80 | 19.2 | 13 |
| JM(JGY)185-14 | 80 | 19.2 | 14.7 |
| JM(JGY)185-16 | 80 | 19.2 | 17 |
| JM(JGY)240-12 | 92.5 | 21 | 13 |
| JM(JGY)240-14 | 92.5 | 21 | 14.7 |
| JM(JGY)240-16 | 92.5 | 21 | 17 |
| JM(JGY)240-20 | 94.5 | 21 | 21 |
| JM(JGY)300-12 | 102 | 24 | 13 |
| JM(JGY)300-16 | 102 | 24 | 17 |
| JM(JGY)300-20 | 105 | 24 | 21 |
| JM(JGY)400-16 | 114 | 27 | 17 |
| JM(JGY)400-20 | 116 | 27 | 21 |
| JM(JGY)500-16 | 127 | 30 | 17 |
| JM(JGY)500-20 | 127 | 30 | 21 |
| JM(JGY)630-16 | 140 | 35 | 17 |
| JM(JGY)630-20 | 140 | 35 | 21 |
| JM(JGY)630-22 | 140 | 35 | 23 |
| JM(JGY)800-22 | 170 | 39 | 23 |
| JM(JGY)1000-22 | 200 | 44 | 23 |

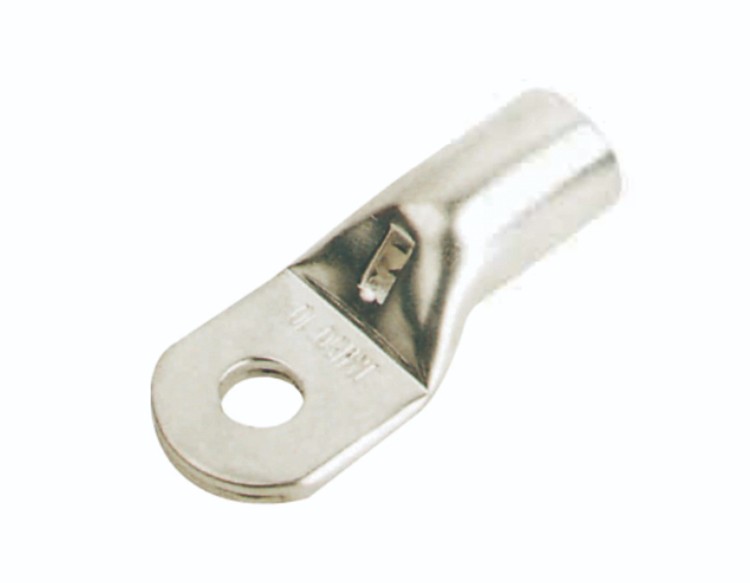

1.It is made of tin-plated copper, which provides excellent conductivity and corrosion resistance.
2.The lug features an inspection hole for verifying proper cable insertion and socketing for secure attachment.
