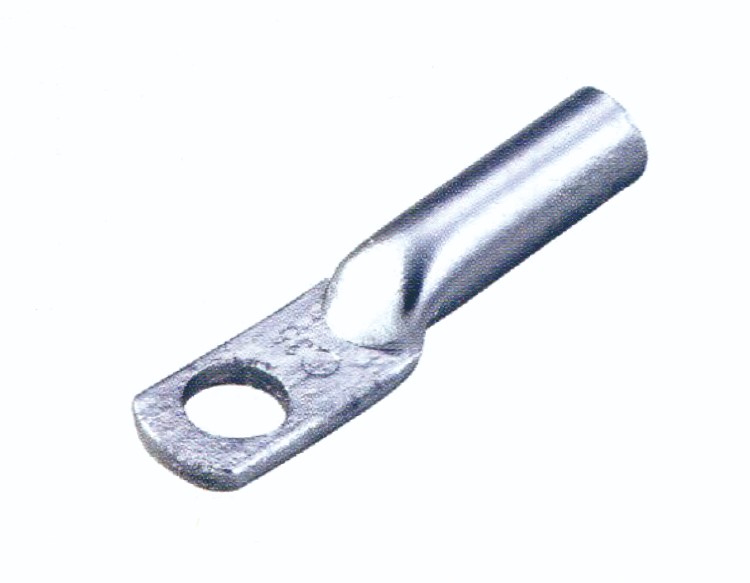

| Cataiog No. | Main dimensions(mm) | |||||

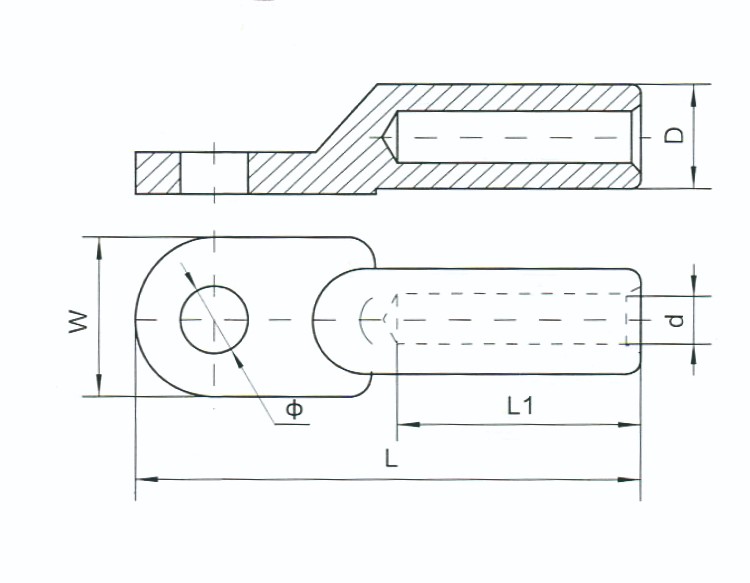

| D | d | Φ | L | L1 | W | |
| DG-70G | 26 | 11.2 | 20 | 125 | 60 | 40 |
| DG-80G | 26 | 12.1 | 20 | 125 | 60 | 40 |
| DG-100G | 28 | 13.7 | 20 | 135 | 70 | 40 |
| DG-120G | 28 | 15.2 | 20 | 145 | 80 | 40 |
| DG-150G | 32 | 16.7 | 20 | 155 | 90 | 40 |
| DG-185G | 38 | 18.3 | 20 | 170 | 105 | 40 |
1.Function:Its main function is to provide a secure and reliable grounding path for electrical systems, which helps protect against electrical shock and equipment damage due to faults.
2.Installation:
1)Turn Off Power:Ensure that the power supply to the area where you will be working is turned off to prevent any electrical hazards.
2)Prepare Wires:Strip the insulation off the ends of the wires that will be connected to the ground terminal block to expose the bare conductors.
3)Insert Wires:Loosen the screws on the terminal block, insert the stripped end of the wire into the terminal, and then tighten the screw to secure the wire in place.
4)Connect to Ground:The other end of the wire should be connected to your grounding system, which could be a ground rod or a metal part of the building's structure that is used for grounding.
5)Verify Connections:Double-check all connections to ensure they are tight and secure.
6)Test for Continuity:Use a multimeter to test for continuity between the ground terminal block and the grounding system to confirm a proper connection.
