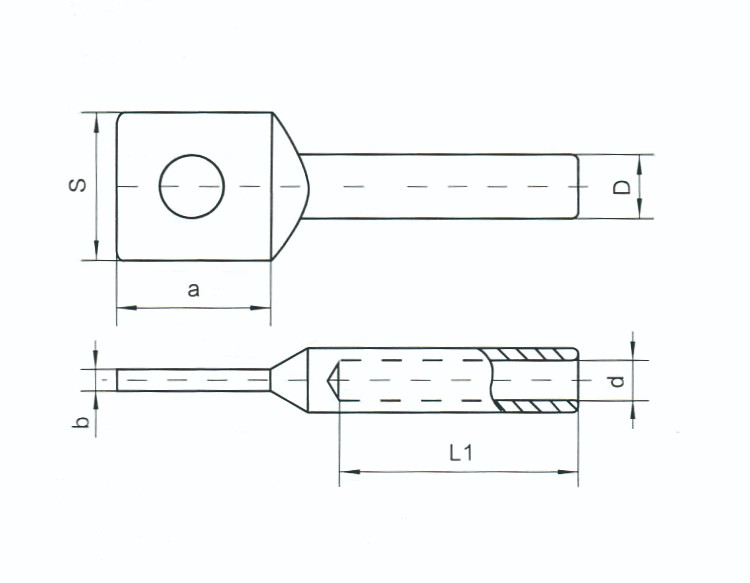

| stable design Cataiog No. | Main dimensions(mm) | Weight(KG) | |||||
| D | d | b | S | a | L1 | ||
| JDBG-80 | 22 | 13 | 8 | 40 | 65 | 70 | 0.12 |
| JDBG-100 | 26 | 15 | 8 | 40 | 65 | 80 | 0.16 |
| JDBG-120 | 26 | 16 | 10 | 50 | 85 | 80 | 0.21 |
| JDBG-150 | 30 | 17.5 | 10 | 50 | 85 | 90 | 0.28 |
1.Purpose:Its primary purpose is to prevent electrical shock and damage to equipment by providing a safe path for fault currents to the ground.
2.Installation:These blocks are typically made of conductive metal and are mounted on DIN rails or directly to the chassis of electrical panels.
3.Function:They ensure a secure and reliable connection that helps maintain the integrity of the electrical system.
