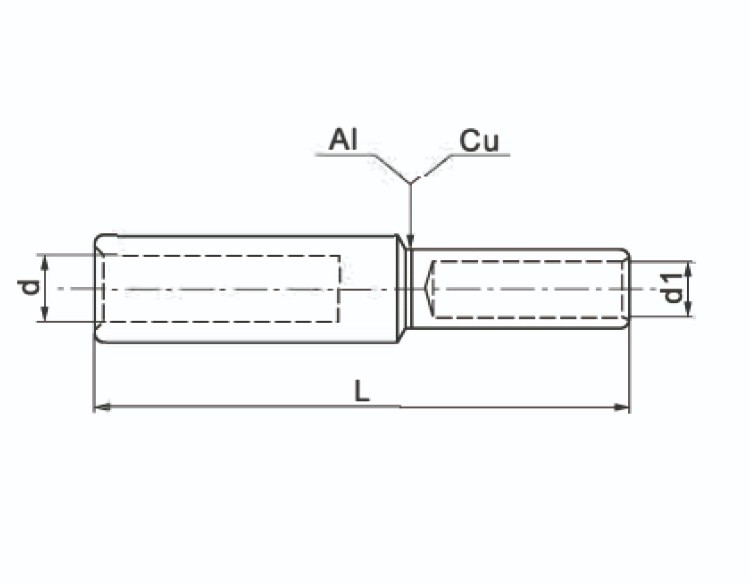

| Modle | Dimensions(mm) | ||
| L | d | d1 | |
| GTL-AL25/CU16 | 70 | 6.8 | 5.5 |
| GTL-AL35/CU16 | 76 | 8 | 5.5 |
| GTL-AL35/CU25 | 82 | 8 | 7 |
| GTL-AL50/CU25 | 85 | 9.8 | 7 |
| GTL-AL50CU35 | 90 | 9.8 | 8.2 |
| GTL-AL70/CU35 | 95 | 11.2 | 8.2 |
| GTL-AL70/CU50 | 100 | 11.2 | 10 |
| GTL-AL95/CU50 | 105 | 13.2 | 10 |
| GTL-AL95/CU70 | 110 | 13.2 | 11.5 |
| GTL-AL120/CU70 | 116 | 14.7 | 11.5 |
| GTL-AL120/CU95 | 118 | 14.7 | 13.5 |
| GTL-AL150/CU95 | 120 | 16.3 | 13.5 |
| GTL-AL150/CU120 | 122 | 16.3 | 15.5 |
| GTL-AL185/CU120 | 128 | 18.3 | 15.5 |
| GTL-AL185/CU150 | 130 | 18.3 | 17 |
| GTL-AL240/CU150 | 132 | 21 | 17 |
| GTL-AL240/CU185 | 135 | 21 | 19 |
| GTL-AL240/CU240 | 140 | 21 | 21.5 |
| GTL-AL300/CU240 | 145 | 23.3 | 21.5 |
| GTL-AL300/CU300 | 150 | 23.3 | 24.5 |

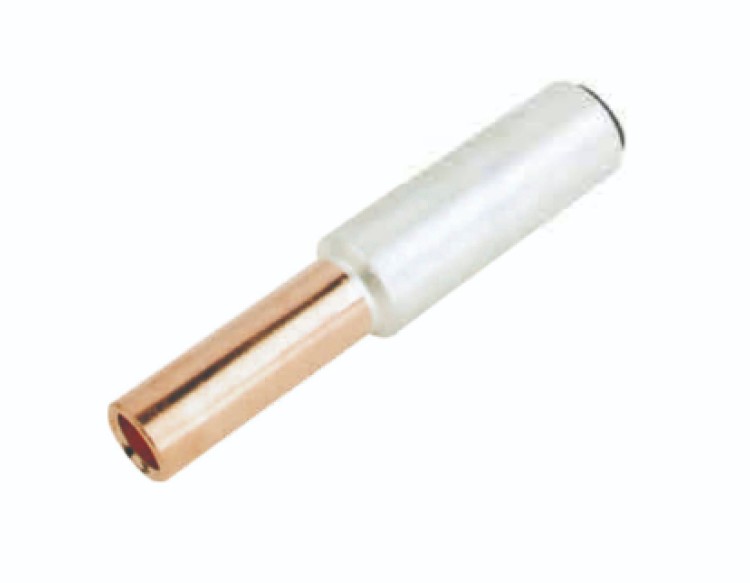

1.Bimetal links serve as quality termination points for transitioning between aluminum and copper cables.
2.These links are manufactured from high-conductivity aluminum and copper, with the aluminum barrels supplied along with jointing compound and a seal cap.
3.They're commonly used when connecting different types of conductors, ensuring reliable electrical connections.
