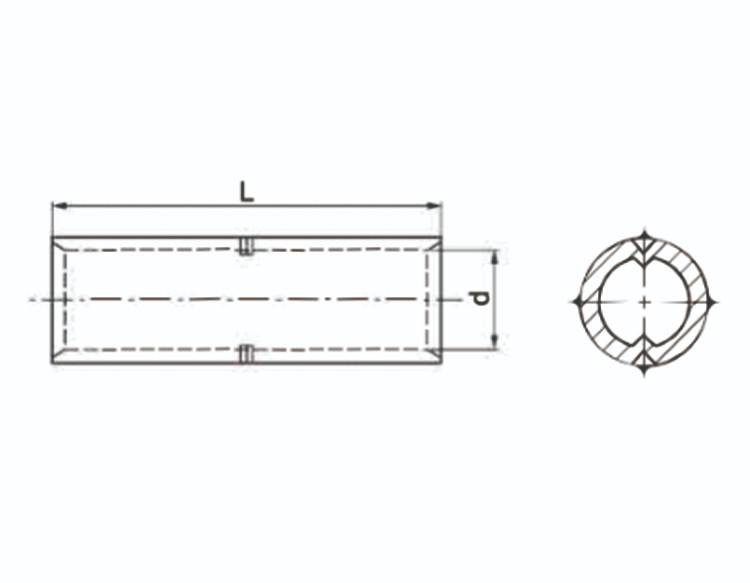

| Modle | Dimens ions (mm) | |
| L | d | |
| GTY-2-1.5 | 20 | 1.9 |
| GTY-2-2.5 | 20 | 2.8 |
| GTY-2-4 | 20 | 3.2 |
| GTY-2-6 | 25 | 3.7 |
| GTY-2-10 | 30 | 4.5 |
| GTY-2-16 | 35 | 5.7 |
| GTY-2-25 | 40 | 7.2 |
| GTY-2-35 | 45 | 8.5 |
| GTY-2-50 | 50 | 9.8 |
| GTY-2-70 | 55 | 11.5 |
| GTY-2-95 | 60 | 13.7 |
| GTY-2-120 | 65 | 15 |
| GTY-2-150 | 70 | 16.7 |
| GTY-2-185 | 75 | 19.2 |
| GTY-2-240 | 80 | 21 |
| GTY-2-300 | 85 | 24 |
| GTY-2-400 | 90 | 27 |
| GTY-2-500 | 100 | 30 |
| GTY-2-630 | 110 | 35 |
| GTY-2-800 | 150 | 39 |
| GTY-2-1000 | 170 | 44 |

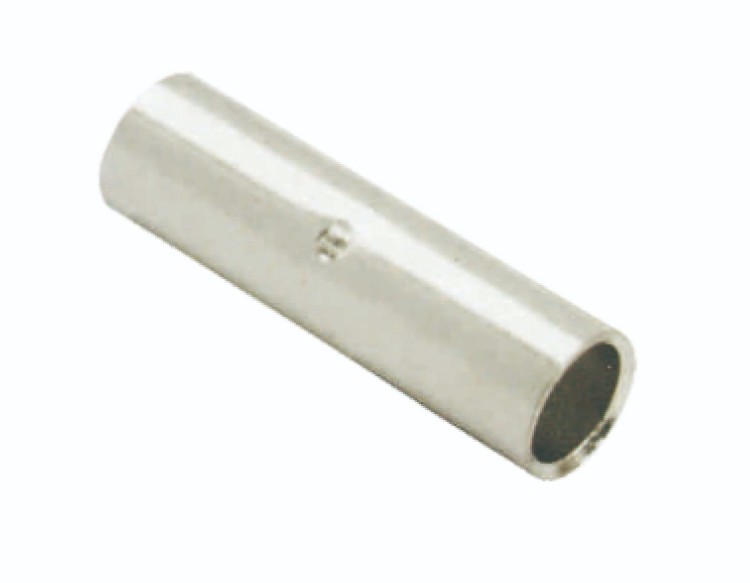

Here are some specifications for the GTY-2:
1.Material: E-Cu
2.Surface treatment: Tin-plated
3.Product property: It is used to connect copper conductor joint.
4.Model: GTY-2
5.Dimensions (L, d): Varies based on the conductor range (1.5-1000mm²)
