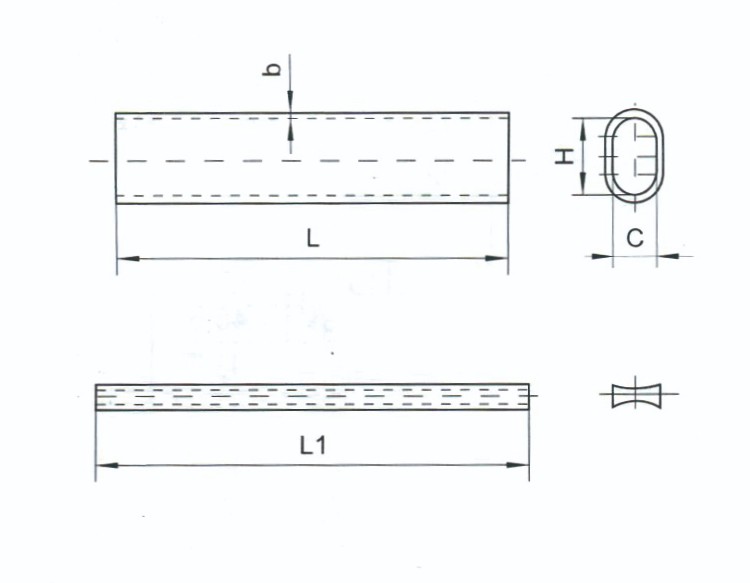

| Cataiog No. | Suitable Conductor | Main dimensions(mm) | Grip Strength (kN) | Weight(KG) | ||||
| b | C | H | L | L1 | ||||
| JTB-35/6 | LGJ-35/6 | 2.1 | 18.6 | 8.8 | 170 | 180 | 12 | 0.08 |
| JTB-50/8 | LGJ-50/8 | 2.3 | 22 | 10.5 | 210 | 220 | 16 | 0.13 |
| JTB-70/10 | LGJ-70/10 | 2.6 | 26 | 12.5 | 250 | 260 | 22 | 0.19 |
| JTB-95/15 | LGJ-95/15 | 2.6 | 31 | 15 | 260 | 270 | 33 | 0.22 |
| JTB-95/20 | LGJ-95/20 | 2.6 | 31.5 | 15.2 | 260 | 270 | 35 | 22 |
| JTB-120/7 | LGJ-120/7 | 3.1 | 33 | 16 | 300 | 310 | 26 | 0.34 |
| JTB-120/20 | LGJ-120/20 | 3.1 | 35 | 17 | 300 | 310 | 39 | 0.34 |
| JTB-150/8 | LGJ-150/8 | 3.1 | 36 | 17.5 | 310 | 320 | 31 | 0.4 |
| JTB-150/20 | LGJ-150/20 | 3.1 | 37 | 18 | 310 | 320 | 44 | 0.4 |
| JTB-150/25 | LGJ-150/25 | 3.1 | 39 | 19 | 310 | 320 | 51 | 0.4 |
| JTB-185/10 | LGJ-185/10 | 3.4 | 40 | 19.5 | 350 | 360 | 39 | 0.5 |
| JTB-185/25 | LGJ-185/25 | 3.4 | 43 | 21 | 350 | 360 | 56 | 0.5 |
| JTB-185/30 | LGJ-185/30 | 3.4 | 43 | 21 | 350 | 360 | 61 | 0.5 |
| JTB-210/10 | LGJ-210/10 | 3.6 | 43 | 21 | 360 | 370 | 43 | 0.57 |
| JTB-210/25 | LGJ-210/25 | 3.6 | 44 | 21 | 360 | 370 | 63 | 0.63 |
| JTB-210/35 | LGJ-210/35 | 3.6 | 45 | 22 | 400 | 410 | 71 | 0.67 |
| JTB-240/30 | LGJ-240/30 | 3.9 | 48 | 23.5 | 370 | 380 | 72 | 0.7 |
| JTB-240/40 | LGJ-240/40 | 3.9 | 48 | 23.5 | 460 | 470 | 79 | 0.7 |

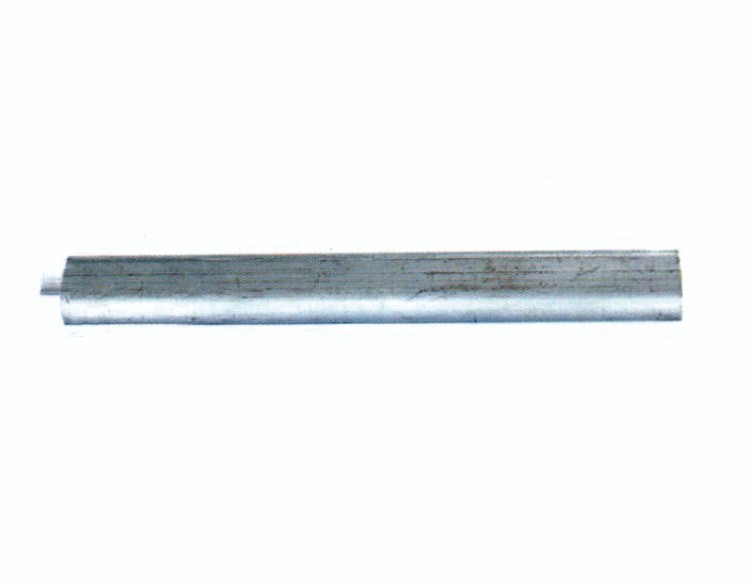

Here are some key features and details about these splicing sleeves:
1.Material: They are typically made of a high conductivity/high strength aluminum alloy outer tube and corrosion-resistant high strength galvanized steel hardware.
2.Design: These splicing sleeves often have a two-piece design, consisting of a steel inner sleeve and an aluminum outer sleeve. This design is intended to provide full tension on the ACSR conductor.
3.Installation: The installation of these splices involves an explosive overlap joint. This method uses a controlled explosion to create a high-quality joint, ensuring a secure and reliable connection.
4.Performance: They are designed to develop 95% or more of the conductor’s rated strength.
5.Standards: These splicing sleeves meet or exceed ANSI C119.4 specifications.
